3.5mm 450,000pixels Medical Endoscope Micro Camera Module With 4pcs White LED, 316 Stainless Steel Tube
US$ 1 - 200
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Properties:
Other, Medical Materials & Accessories, Medical Materials & Accessories
Type:
Other, camera module
Brand Name:
none
Payment & Shipping
Payment Methods:
Port of Shipment:
FOR Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5.5mm Endoscope Borescope Medical Video Camera Module 4pcs LED VGA Sanke Camera ModuleUS$ 1 - 200MOQ: 10 Pieces -
Medical Endoscope Camera 450,000 Pixel With 4pcs White LED 3.9mm DiameterUS$ 1 - 200MOQ: 10 Pieces
-
3.9mm 450,000pixels Endoscope Borescope Industrial Medical Snake Camera With 4pcs White LED, Video Camera ModuleUS$ 1 - 200MOQ: 10 Pieces
-
M-CM350, 3.5" Cctv Security Tester, 3.5" Cctv Service Kit, 3.5" Cctv Service MonitorNegotiableMOQ: 1 Carton
-
MT-CM535M/BAG, 5" CCTV Test Monitor, 5" Cctv Service Kit, 5" Cctv Service MonitorNegotiableMOQ: 1 Carton
Properties
Other, Medical Materials & Accessories, Medical Materials & Accessories
Type
Other, camera module
Brand Name
none
Model Number
BM-T3940CLM-M1
Place of Origin
Taiwan, China
Model no.: BM-T3940CLM/M1 (w/o stainless tube)

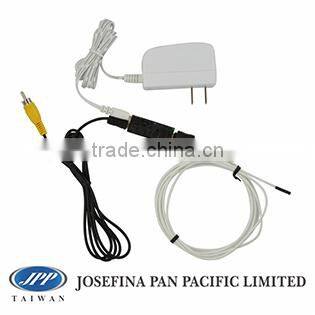

3.5mm 450,000pixels Medical Endoscope micro camera module with 4pcs white LED, 316 stainless steel tube
Made in Taiwan, For Medical use
Specification:
| Image Device: | Super HD color Sensor |
| Effective pixels: | 720x625 |
| Frame Rate: | 30fps |
| video output: | TV out |
| Field of View: | 102 degree |
| Foucs Range: | 2 - 6mm |

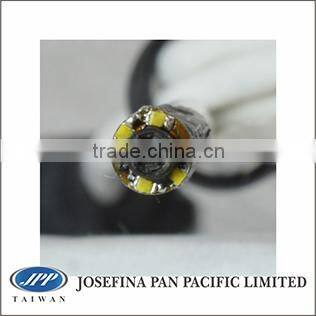

| Light Source: | 4pcs white LED |
| Power Input: | Approx DC 3.3V |
| sensor cable length: | 1200~2500mm |
| camera head housing: | PLASTIC |
| Operating Temperature: | -10°~+50° |
| Tube materials: | SUS316 Stainless Steel |
| Operating Humidity: | 30%~90%RH |
| PCB board size: | 42mm(L)*18mm(W)*11mm(L) |

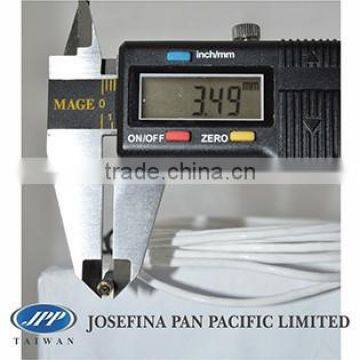

| Dimension: | 3.5mm(D)*15mm(L) ---> without tube |
| Optional: | 3.9mm(D)*15 mm (L) ===> with tube |

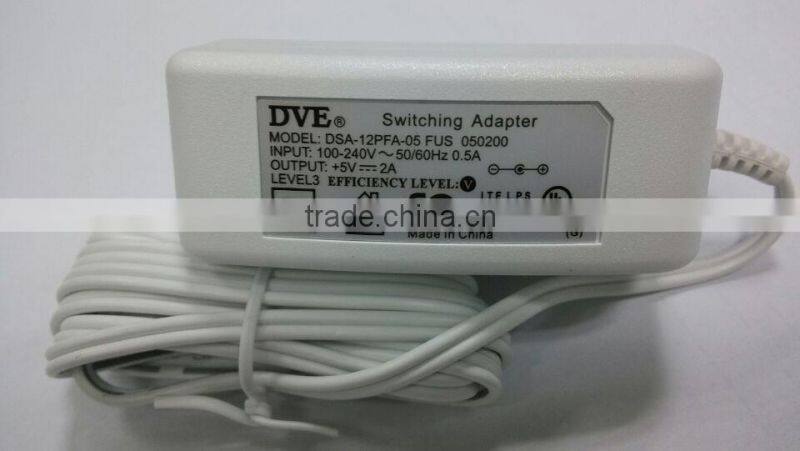

| Accessories including : | video cable*1, Medical DC adapter (5V) *1 |
