glazed tiles making manufacture machine
1. Roll Forming Machine:
Feature:The color steel sheet is widely used in villa , holiday village , gardening industrial building , storage , scenic tourist area , pavilions , hotel , exhibition hall and so on . And we are emphasis on the detail and the technical update constantly.
2.Roll Forming Machine Components:
Uncoiler, Coil sheet guiding device, Main roll forming system,Post cutting device,Hydraulic station, PLC control system and Support table.
3.Roll Forming Machine Working Flow:
manual uncoiler—Roll forming machine—computer control system—hydraulic control system—form cutter
4.Technical Parameter
No. |
main parameter of glazed tile sheet making mahcine construction machine |
|
1 |
Suitable to process |
Color steel plate |
2 |
Width of the plate |
1250mm |
3 |
Rollers |
14rows |
4 |
size |
7.74*1.50*1.51m |
5 |
Main moter power |
4kw |
6 |
Hydraulic unit power |
4kw |
7 |
Thickness of the plate |
0.3-0.6mm |
8 |
Productivity |
0-2m/min |
9 |
Diameter of the roller |
Φ70mm |
10 |
Voltage |
380V 50Hz 3phases |
12 |
Material of the cutting plate |
Cr12 |
15 |
Control system |
PLC control |

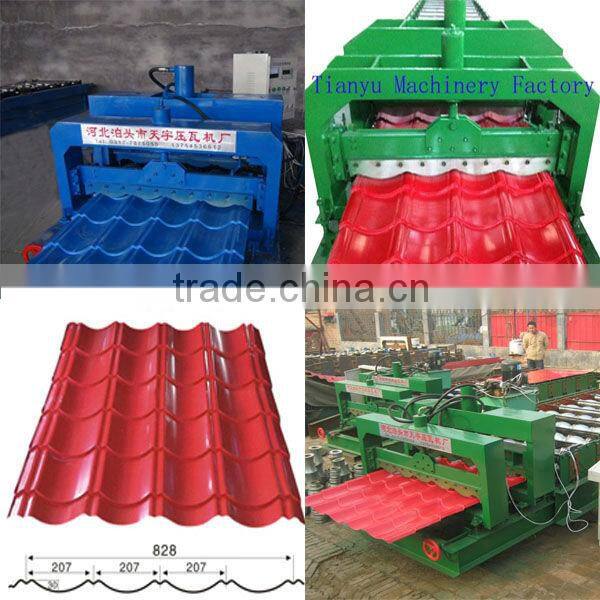

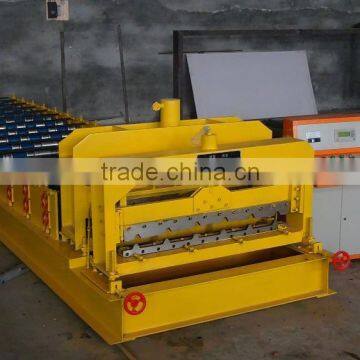

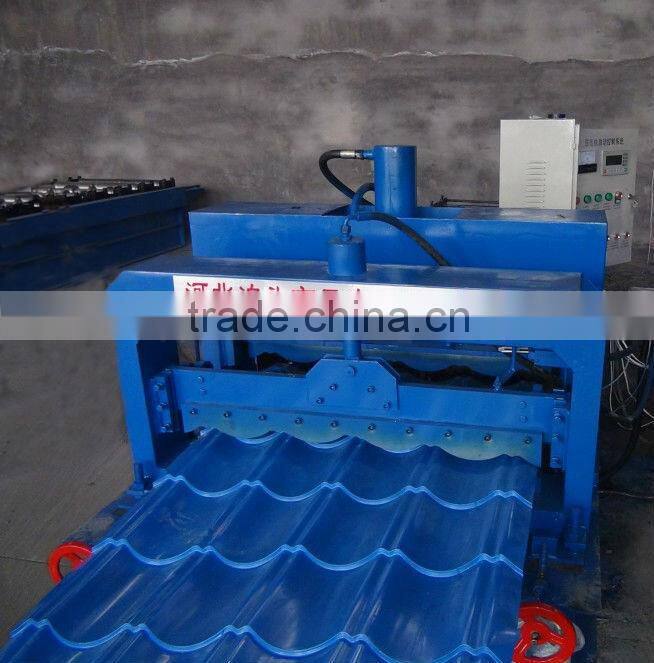

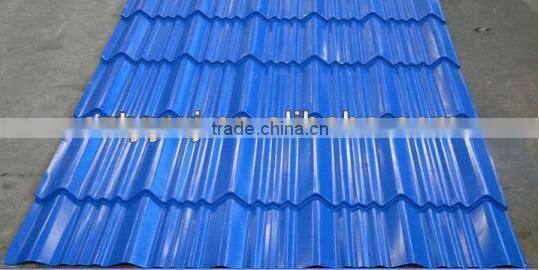

5.Product Picture
Company Introduction

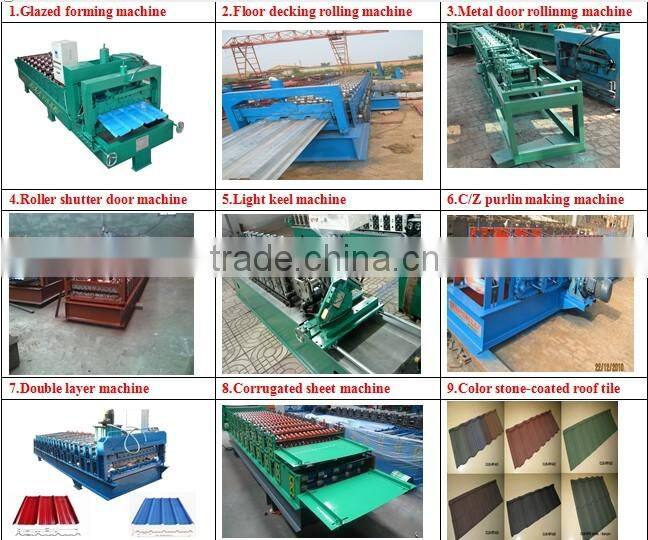

Main product categories: color steel roll forming machine, classical glazed tile forming machine, double layer roll forming machine,C/Z purlin machine for light steel structure building, floor deck forming machine, sandwich panel production line,fast guardrail roll forming line and various kinds full-automatic cold bending roll forming equipment

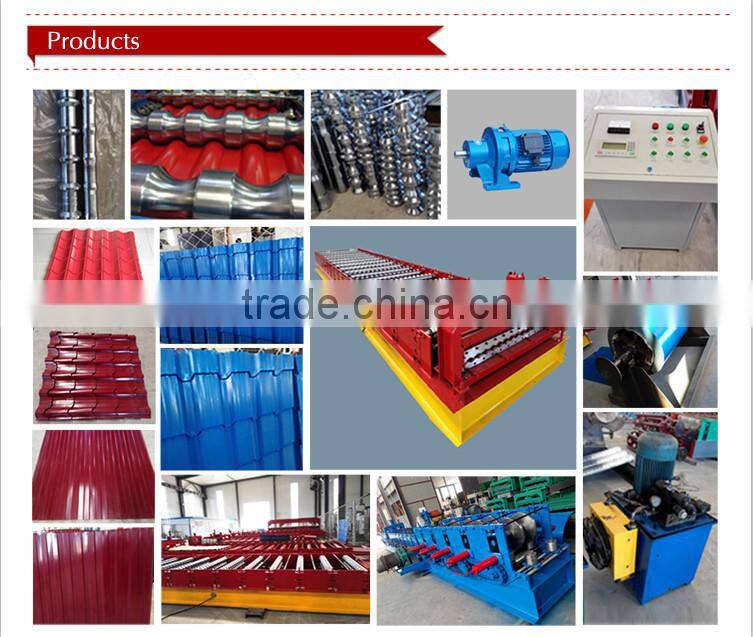

Other products
Quality Control
We have independent QC departments both in the company and factories which strictly control the quality of each process to enable our production lines to reach Chinese National Standards, even International Standards.
After Sale Service
Warranty period 1 year , after this period , we are willing to give help if customer needs accessory . The real cooperation will not end at the delivery . we believe that satisfied after sale service means a lot.
Inspection
Inspected by the Sellers
After completing the manufacturing and assembling of the equipments, we will test the machines and commissioning in the workshop.
Inspected by the Buyers
After confirmation of a sound work of the line, we will invite our customer to send their representatives to inspect the production lines in our factories.
