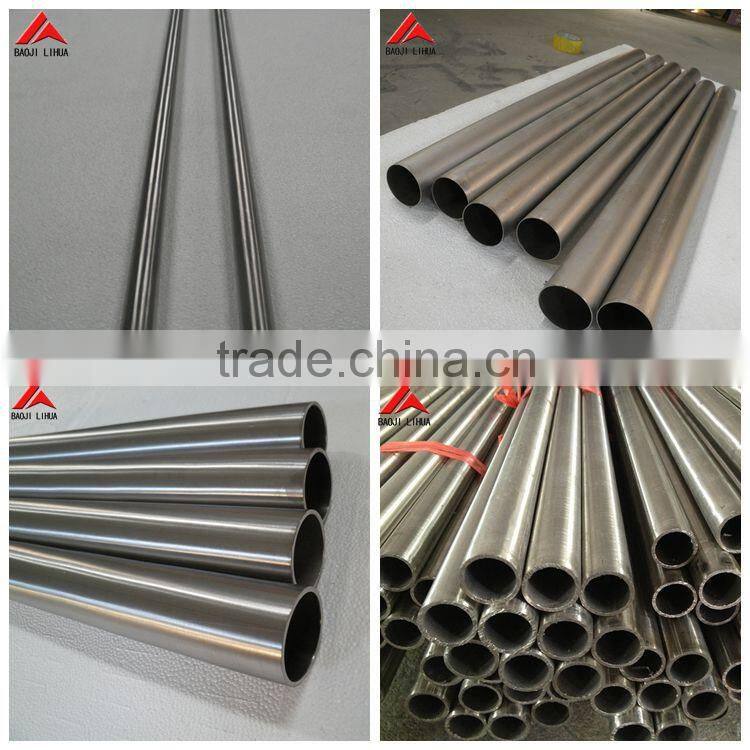

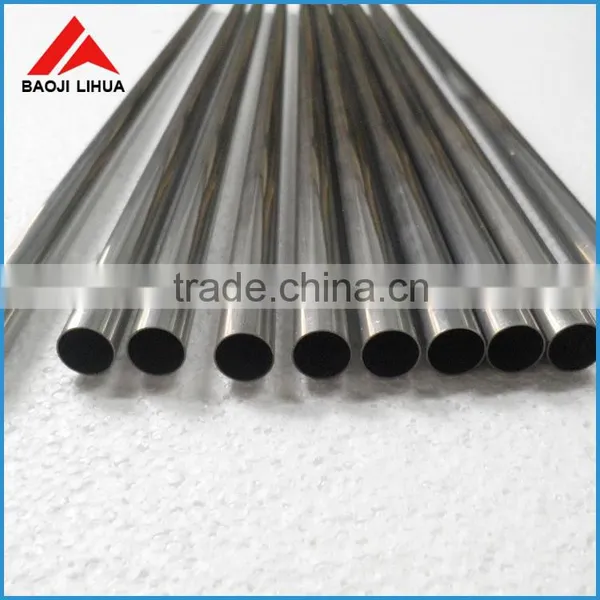

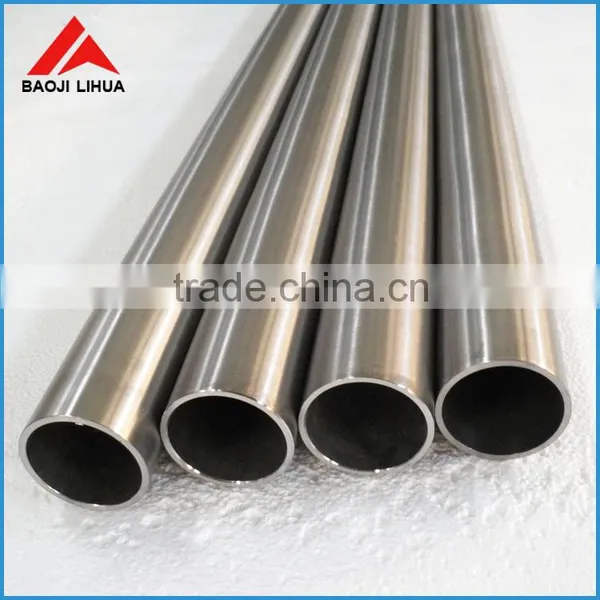

Best quality titanium pipe titanium price per kg
Product Feature |
| Titanium tubes have the feature of light weight, high strength and superior mechanical properties. Titanium tubes are widely used in heat-exchange equipment, such as tube type heat-exchanger,coiled type heat-exchanger,coil heat-exchanger, condensator,evaporator and transmission pipeline. Many nuclear power industry ues titanium tubes as the unit standard tubes. |
Item Name |
titanium condenser coil tube |
Material |
Gr1, Gr2, Gr7,Gr9, Gr12 |
Standard |
ASTM B337, ASTM B338, ASTM B861, ASTM B862 |
Specification |
OD5.0-114.0mm x WT0.5-7.0mm x 1000-12000mm |
Payment |
T/T, L/C ,Paypal, as your inquiry |
Technique |
Rolled |
Condition |
Annealed(M) |
Application |
a) General service industries (petroleum, food, chemical, paper, fertilizer, fabric, aviation and nuclear) b) Fluid, gas and oil transport c) Pressure and heat transmission d) Construction and ornament e) Boiler heat exchangers f) motorbycle and bike |
Certificate |
ISO9001:2008, TUV, EN10204.3.1 |
Mechanical Properties(>%) | |||||||
| Grade | Tensile Strength(min) | Yeild Strength(0.2% offset)) | Elongation(%) | ||||
| ksi | MPa | Min | Max | ||||
| Ksi | Mpa | Ksi | Mpa | ||||
| 1 | 35 | 240 | 25 | 170 | 45 | 310 | 24 |
| 2 | 50 | 345 | 40 | 275 | 65 | 450 | 20 |
| 7 | 50 | 345 | 40 | 275 | 65 | 450 | 20 |
| 9 | 90 | 620 | 70 | 483 | - | - | 15C |
| 12 | 70 | 483 | 50 | 345 | - | - | 18C |
| Chemical composition | |||||||||
Grade |
N |
C |
H |
Fe |
O |
Al |
V |
Ti |
Other , max |
1 |
0.03 |
0.08 |
0.015 |
0.20 |
0.18 |
/ |
/ |
Bal | 0.4 |
2 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
Bal | 0.4 |
7 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
Bal | 0.4 |
9 |
0.03 |
0.08 |
0.015 |
0.25 |
0.15 |
2.5-3.5 |
2.0-3.0 |
Bal | 0.4 |
12 |
0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | Bal | 0.4 |
FAQ |
|
Q1.--How can you ensure the product quality? --All products are manufactured according to ASTM standard (Bolts are according to ASME standard and DIN standard),and we make 100% inspection before shipment,also we can provide the MTC Material Test Certification. |
|
Q2.--Can you print our LOGO on the products? --Sure, and we welcome the customerized products. |
|
Q3.--Can we get the free sample? --Sure. |
|
Q4.--What about the payment terms? --T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted. |
|
Q5.--Do you have your website? --Yes, Please click here. (Independent website) |
|
Q6.--What is the necessary information for a inquiry? --Product name, specification, material grade and quantity. |
