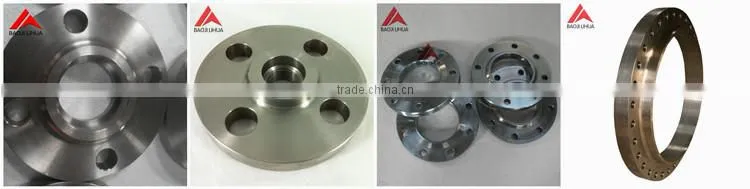

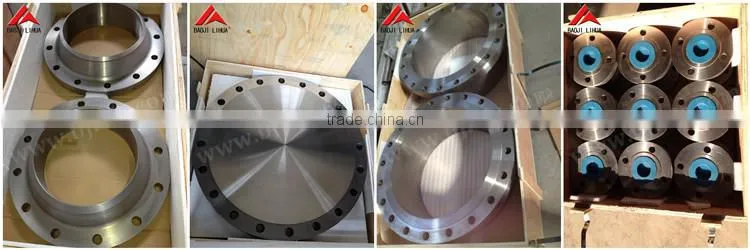

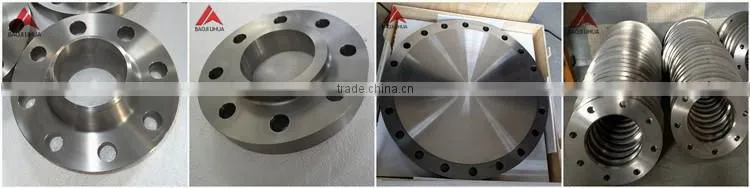

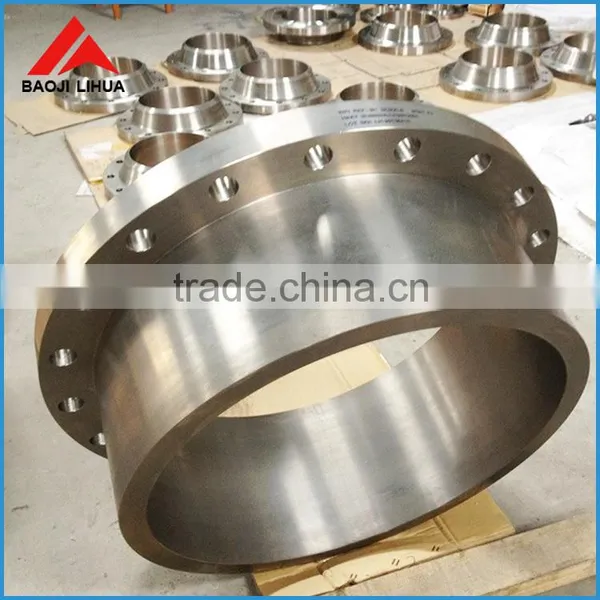

large diameter titanium flange
Product Features |
|
TITANIUM FLANGES are made of non-ferrous metaltitanium or titanium alloys. And they are a kind of accessory which make the pipe and pipe connected to each other. There are holes in titanium flanges and bolts make two titanium flanges connected to each other. Titanium flanges can be made by casting, threaded connection or welding.flange joint includes a pair of titanium flanges, a gasket, a number of bolts and nuts. The gasket is put between the contact surfaces of two titaniun flange. After the bolts are tightened,the specific pressure on gasket are up to a certain value, then the gasket are out of shape and fill in contacting surface of two titanium flanges in order to seal flange joint closely. |
products |
titanium flange |
Material Grade |
Gr1 Gr2 Gr3 Gr4 GR5 Gr7 Gr9 Gr11,Gr12 |
Certification |
ISO9001:2008, TUV, material test certificate acc EN10204.3.11 |
Standard |
ANSI B16.5, ASTM B16.5, ASME B16.47, JIS B2220, DIN2627-2628, |
size |
1/2"~ 60"NB NPS 1/2 - NPS 24 (DN 10 - 2000) |
Pressure Class |
PN0.25~32Mpa |
| (DIN) PN6 PN10 PN16 PN25 though PN250 | |
| 150# 250# 300# 400# 500# 600# 900# 1500# 2500# | |
Technique |
Forged and CNC Machined |
type |

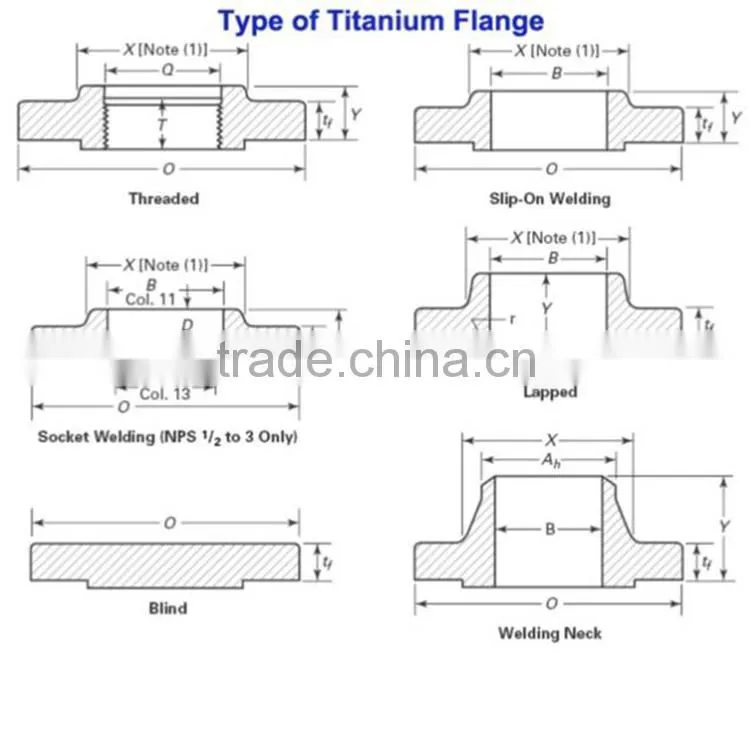

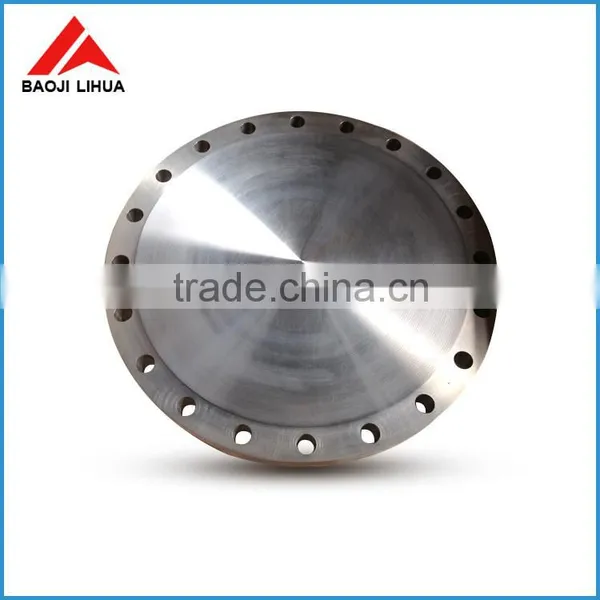

Weldnecks Slip-Ons Threaded Blind Socket weld and Lap-Joint |
Flange surface |
FF RF TG RJ MFM |
