production line grain steel silo manufacturing machine
square tube roll forming machine Technical Parameter:
No. |
square tube roll forming machine |
|
1 |
Suitable material |
Color steel sheet ,galvanized steel sheet, aluminium sheet |
2 |
Width of material |
333mm or customized |
6 |
Thickness of material |
0.4-0.6mm, customized |
2 |
Working speed |
8-10m/min, can be 20m/min |
3 |
Main motor power |
4kw with cycloidal reducer |
4 |
Hydraulic station power |
4kw |
5 |
Electrical control system |
PLC control system |
7 |
Shaft diameter |
65mm |
8 |
Roller station |
17 rows |
10 |
Dimension |
7800x1150x1510mm |
11 |
Weight |
About 3.6T |
12 |
Voltage |
380V 3phase 50HZ or as the customer's requirements |
13 |
Material of roller |
High grade 45# forged steel plated with hard chrome plating |
14 |
Material of cutting |
Cr12 mould steel with quenched treatment |
15 |
Working time |
Can be 24 hours |
16 |
Workers |
1-2 only |
Note:Above parameters are standard,we can design and make some change according to your requirement.
Specifications
Material-fed supporting frame
Automatic shearing mechanism
Hydraulic system
Computer control cabinet with imported PLC

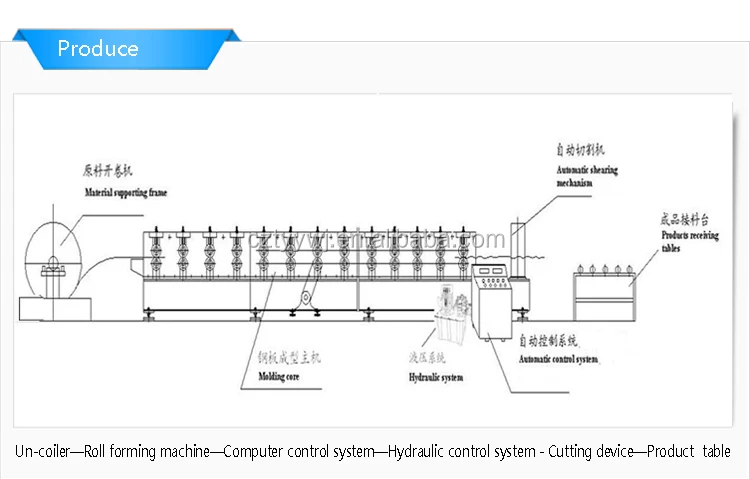

Technical process:
Manual decoiler---feed with guide---roll forming---press step---cut with fixed length---output with table

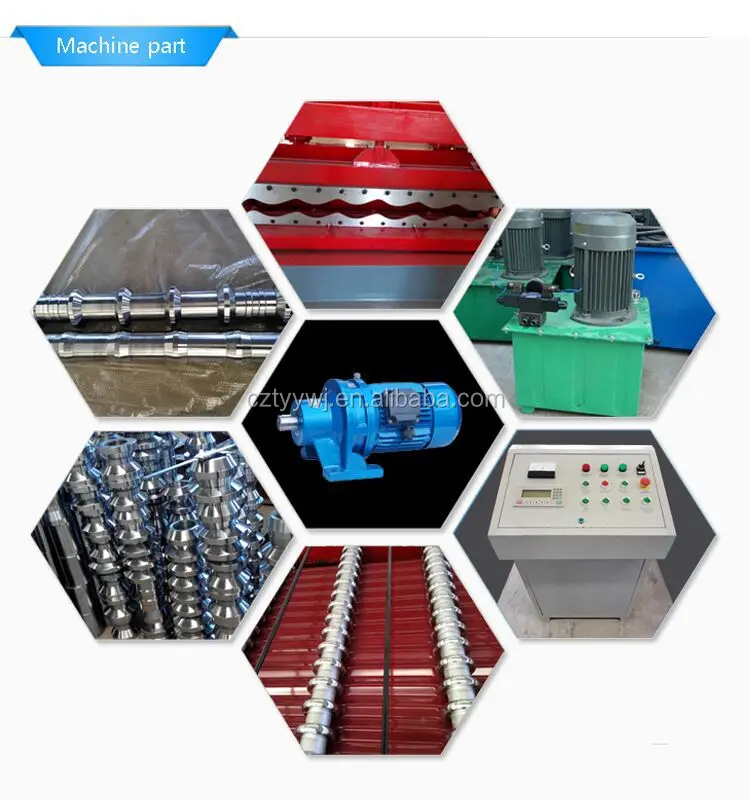

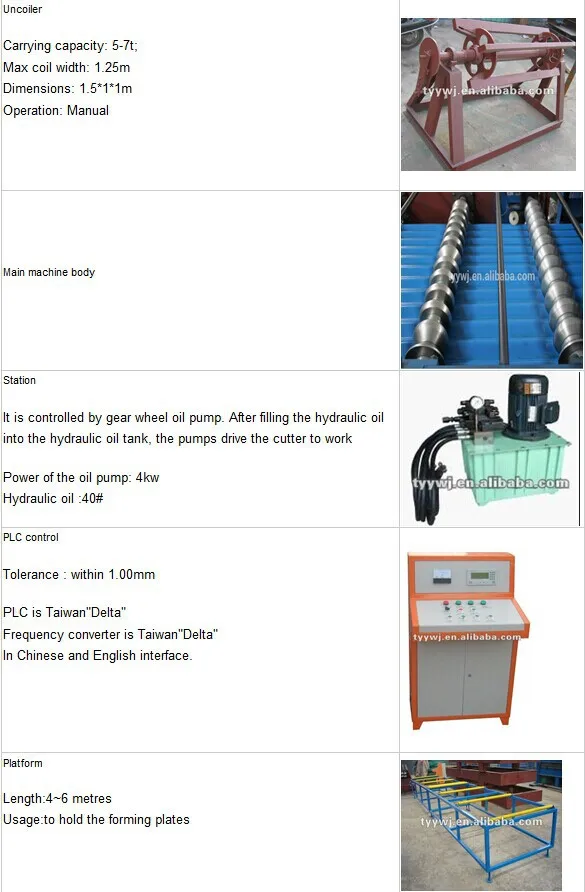

Equipment Parts
Decoiler, roll forming machine, hydraulic cutting device, electric system(PLC control system), hydraulic system, stacker.

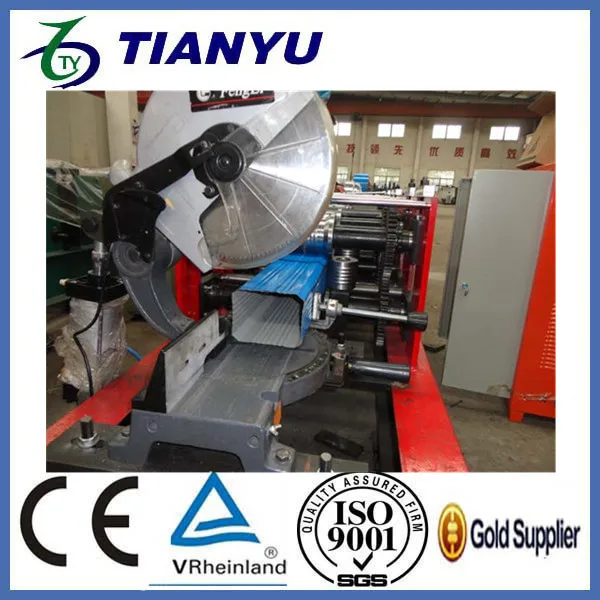

machine picture show and some deatils
Automatic system
Pump station |
3kw |
PLC |
Panasonnic |
Transducer |
Twiwan"Delta" |
Encoder |
Wuxi's "REP"or "XINYA" |
Switch |
"CHINT" or "DELIXI" |
Component line
NO |
Name |
Unit |
Qty |
1 |
Man-made decoiler |
set |
1 |
2 |
Main machine for roll forming |
set |
1 |
3 |
Control system |
set |
1 |
4 |
Hydraulic system |
set |
1 |
FAQ about roll forming machine :
Q:How is this machine's service life?
A:In the normal maintenance,the service life at least 8 years.
Q:How to maintenance?
A:If using frequently,best coating lubricant on the chain and two ends of the shaft every month,replace the hydraulic oil every 1-2 years.
Q:What can you do if the machine broken?
A:Our machine's warranty period is 1 year,if the broken parts can't repair,we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.
Q:Mr.Alan,can you make the machine according to my design or proto type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
Q:How many workers operate this machine to manufacture?
A:Only 1-2 worker.
Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
Why choose us
Our machine is different with other machine
1). Material of machine main frame: our is” I” beam, low price is “H” beam.
2). Size of machine main frame : our is 360mm, low price is 250-350mm.
3). Thickness of middle plate : our is 14mm, low price is 10-12mm.
4). Type of shaft : our is solid, low price is hollow, they use steel pipe instead of shaft.
5). Diameter of shaft : our is 74mm, low price is 50-60mm.
6). Material of shaft : our is (high grade) 45# Steel,quenching and tempering treatment, low price is ordinary steel and no quenching and tempering treatment.
7). Material of roller : our is (high grade) 45# Steel,quenching and tempering treatment, low price is ordinary steel and no quenching and tempering treatment.
8). Size of roller : our is bigger than low price machine
9). Treatment of roller surface: our is hard chromize coated 0.05-0.07mm, low price is 0.01-0.03mm even they paint silver powder instead of chromize coated.
10). Size of chain : our is 25.4 mm (high grade and “DONGHUA BRAND”famous brand of China), low price is 19.05mm(not high grade and famous brand of China).
11). Bearing : 6210 (high grade and “HAERBIN BRAND”famous brand of China), low price is not high grade and famous brand of China.
12). Motor and Reducer : our is 5# cycloid reducer (high grade and “MENGNIU BRAND” famous brand of China), low price is 4#(not high grade and famous brand of China).
Why your price is higher?
For example,2 kinds of apples here,2 different prices, why prices are still different?You can see the difference from the appearance directly,the cheap one some holes in the apple,it is going to fade.And make your stomach not good.The more expensive one,it is fresh,no scrath,no holes,no worm.The most important,you can if you give it to your girlfriend she will be happy!If your budget is a problem now,ok we offer you 3 standard machine with different prices and parameters.
Like our machine,appearance good,the machine run well with life long tracking service.The most important little problem,running well to help you make more money!

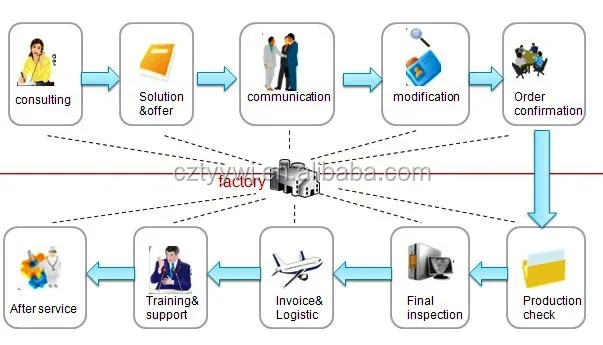

How is the order procedure?look here
How visit us,check follow information
Need my help now?I am here for you,my friend
