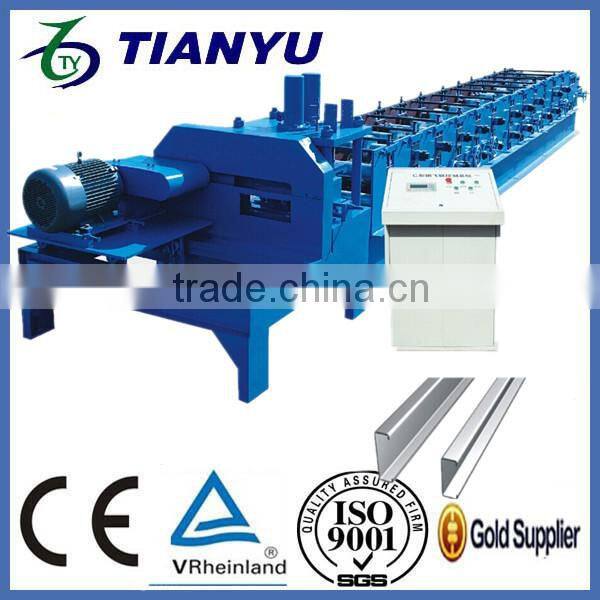

Hebei c shape roof purlin machine
C purlin roll forming machine:
Technique parameters of the processing line
(1) Plate Material: strip steel
(2) Thickness of the plate : 2.0-3.0mm
(3) Machine body : 400mm H steel
(3) Side panel thickness: 20mm steel plate
(4) Outside debugging to change sizes
(5) Gear driving
(7) Reducer :11kw Xingxing Cycloid which works stably and no noise.
(8) Seam type semi-mat
(9) Roller material: 9 Cr-Si with quenched treatment 62-64°C
(10) Rollers: 12 steps for moldind and 9 steps for leveling, 1 pair steps on the middle for adjusting machine height, 1 pair steps on the coil-output part for adjusting deviation and 1 step for straightening
(11) 4 steps side wheels on the coil-input part for avoiding coil-deviation
(12) Forming part adopts side wheel rotation forming to reduce friction between rollers and coil. Easy and fast debugging
(13) Diameter of active shaft: 80mm, 45# steel
(14) Hydraulic pump power: 5KW
(15)Total power:30KW
(16) PLC control systerm with inverter
(17) Dimensions of major structure:
7600mm(length)*1000mm(width)*1200mm(height)
(18) Woking Speed: 8-12m/min
(19) Usage: stairway and walkway

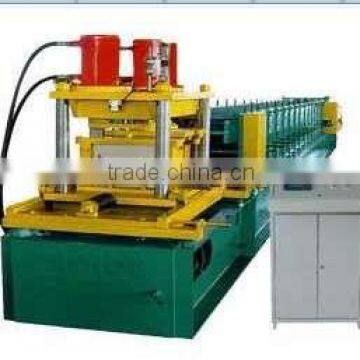

machine and some details show
Components of line:
No. |
Name |
Unit |
Qty |
1 |
Decoiler |
set |
1 |
2 |
Main Machine For Roll Forming |
set |
1 |
3 |
PLC Control System |
set |
1 |
4 |
Hydraulic System |
set |
1 |
5 |
Cutting with Punching |
set |
1 |
6 |
Output Table |
set |
1 |
Components of machine in this production line
FAQ
Q:How is this machine's service life?
A:In the normal maintenance,the service life at least 8 years.
Q:How to maintenance?
A:If using frequently,best coating lubricant on the chain and two ends of the shaft every month,
replace the hydraulic oil every 1-2 years.
Q:What can you do if the machine broken?
A:Our machine's warranty period is 1 year,if the broken parts can't repair,
we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.
if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.
we have rich experience in transport.
Q:Mr.Alan,can you make the machine according to my design or proto type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
Q:How many workers operate this machine to manufacture?
A:Only 1-2 worker.
Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
