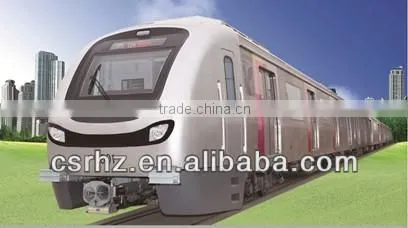

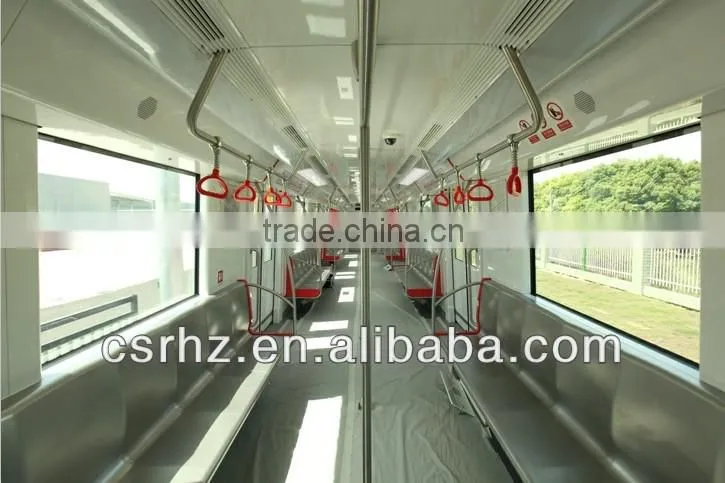

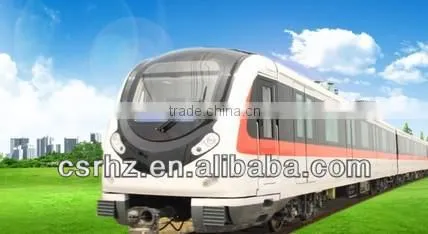

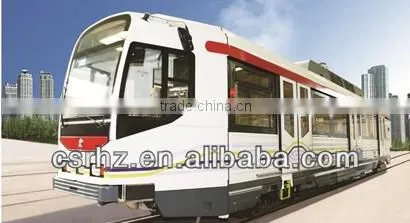

Help CenterMetro Vehicle, Subway Car, Railway Car
Related Products
Specifications
Train marshalling: +Tc*Mp*M=M*Mp*Tc+Tc: trail car with cab
Mp: motor car with pantograph
M: motor car without pantograph
Just one driver or an automatic monitoring and controlling system can operate the train; a train unit usually consists of one trail car and two motor cars, and six cars are grouped into a train. At both ends of the train, there are devices for passengers to escape from emergencies. The traction adopts VVVF control. The train body is made of aluminum alloy. The bogie is without bolsters. Power mode: overhead contact line.
Main technical parameters:
| Vehicle outline dimention: | |
| Tc car | 24400(L)×3000(W) |
| M car | 22800(L)×3000(W) |
| Mp car | 22800(L)×3000(W) |
| Distance between bogie centers | 15700mm |
| Carbody inner width | 2790mm |
| Wheel diameter | 840mm(new wheel) |
| Total length | 140000mm |
| Rated passenger capacity | AW3 2460P for 6-car train |
| Main characteristics: | |
| Propulsion adopts IGBT VVVF inverter to regulate the speed and AC transmission system driven by squirrel cage 3-phase motor; carbody adopts aluminum alloy; bogie is bolsterless bogie with external bearing. | |
These products may interest you:
The company:
1.Brand: We are the subsidiary company of CSR, which is a big state-owned group called "China South Railway".
2.Experience & Profession: Our parent company is an enterprise specialized in research and manufacture of rail transport equipment in China, and is the first-class large-scale company in China’s railway equipment manufacturing industry. It has a history of more than 100 years in the railway vehicle field and its products sold to 18 railway bureaus and local railways.
3.Why choose us?
• Customized products that meet the demand of running in different environments. In order to ensure the products performing well in local conditions, We could design and manufacture products according to basic needs of clients.
• Various products, different railway transit products, including EMU&DMU, passenger coach, metro, light rail, tramway, locomotives, freight wagon and others relevant products.
4.High quality after-sale service: We will despatch professional technical stuff to the site for after-sale services, at the same time, we are also a professional agency of railway equipment. What we can provide is not just only railway vehicles but also an integrated system that suitable for any kinds of railway cars' maintenance and refurbishment.

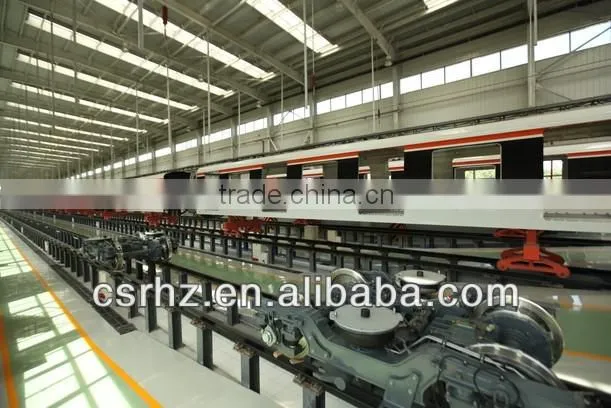

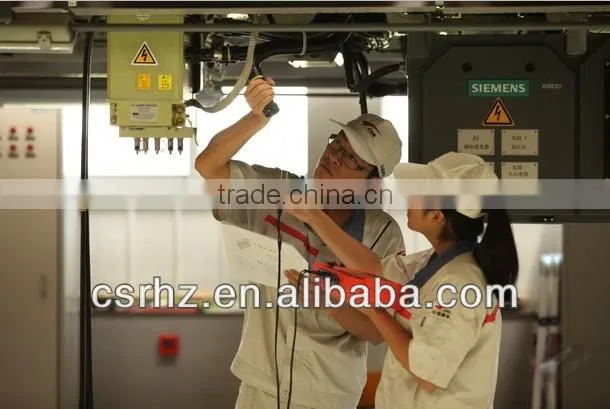

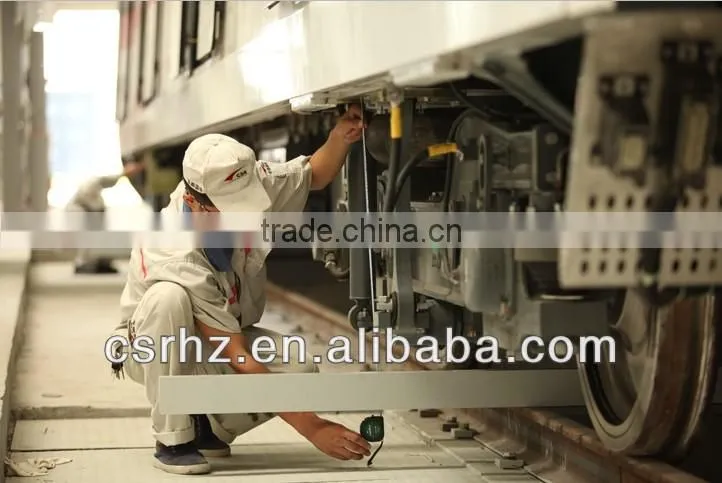

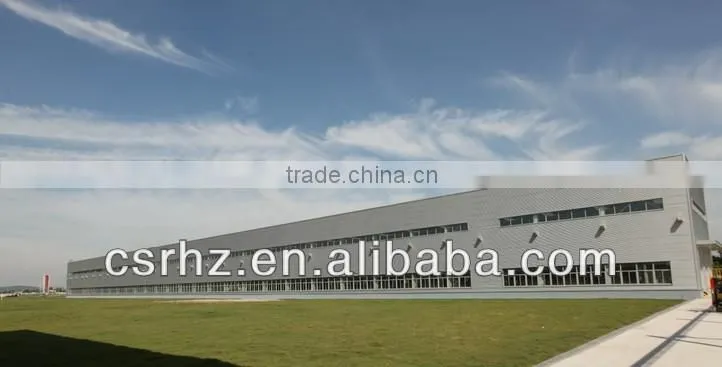

Fast channel to our workshop:
If you have interest in our products & want to know more about our company.
Here is our company home page: www.csrhz.en.china.cn
Please contact us if you have question to us.
Lynn Ye
International Marketing Manager
Mob: +86-13705880033
Tel: +86-57128198903
Fax: +86-57128198905
Skype: hznc2013
