Home > Transportation > Trailer > Truck Trailer > Light Rail Car, Railway Car

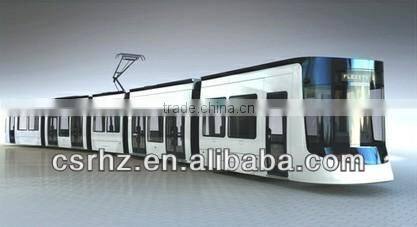

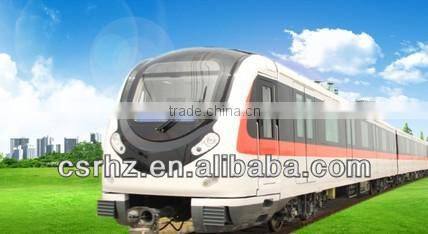

Light Rail Car, Railway Car

CRRC Hangzhou Co., Ltd.

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

CSR

Model Number:

Urban Light Rail Vehicle for Hongkong KCR

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name CSR

Model Number Urban Light Rail Vehicle for Hongkong KCR

Specifications

Vehicle marshalling: This light rail vehicle usually operation by one or two cars.

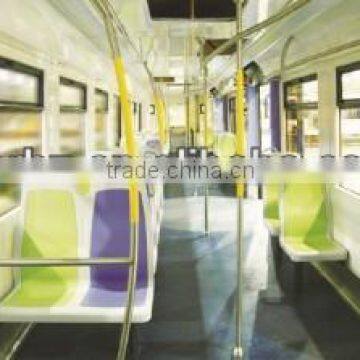

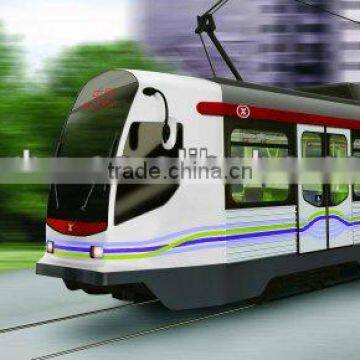

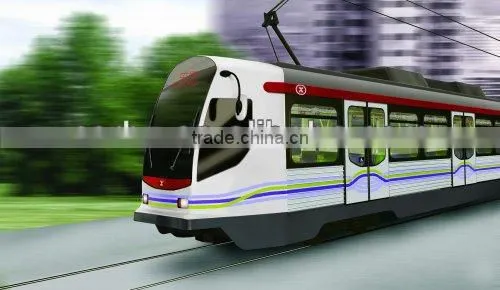

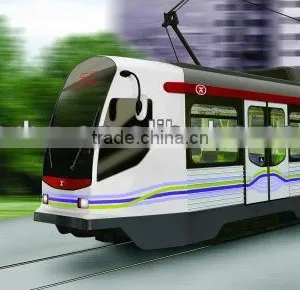

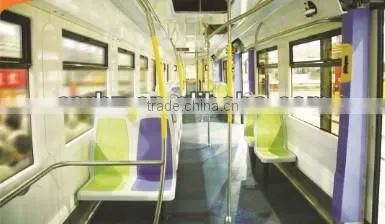

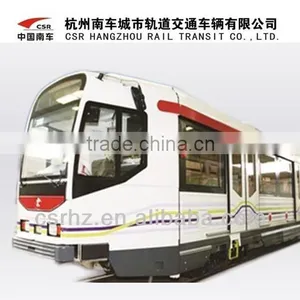

Hongkong stainless steel light railvehicles amount to 22 cars. The vehicle is of modern design and sophisticated technique, which adopts stainless steel carbody that is 20 meters long and 2.6 meters wide. It looks like a bus, cab on one end,saloon similar to cab on the other end, which can operate both in single car and in two cars. The interior seats are of 2+1 pattern,while three open doors allowing wide passage are fitted on oneside, which are easy for passenger access and comfortable riding. The vehicle adopts such advanced technology as stainless steel carbody,direct power supply, and flexible wheel, which feature light weight, low noise, safety and environmental protection. It also meets special requirements for the city transportation with high density and large passenger flow.

Main technical parameters:

Power supply	750V DC
Rated passenger capacity AW1	37P/train
Rated passenger capacity AW2	6P/M^2
Rated passenger capacity AW3	8P/M^2
Vehicle height	3415(distance from rail surface to roof)
Mean inital acceleration(0-35km/h)	≥1.0m/s^2
Mean service brake deceleration(80km/h-0)	1.3m/s^2
Mean emergency brake deceleration(80km/h-0)	2.7m/s^2
Unit refrigerating capacity	40kW
Vehicle internal temperature	23°C
Vehicle internal relative humidity	55~65%
Vehicle internal width	1700mm
Max.vehicle width	2650mm
Min.height from floor level to internal ceiling center	2150mm
Min.height of passenger standing area in passenger car	1863mm
Height from floor level to rail surface	955±15mm
Coupler type:
Full automatic coupler
Semi-automatic coupler
Semi-permanent traction bar
Height from coupler center line to rail surface	500mm
Bogie wheelbase	1900mm
Wheel diameter(New/worn)	720mm/660mm
Passenger car side doors pairs of side door	3door/side
Passenger car windows amount of windows at each side	3window/side

These products may interest you:

The company:

1.Brand: We are the subsidiary company of CSR, which is a big state-owned group called "China South Railway".

2.Experience & Profession: Our parent company is an enterprise specialized in research and manufacture of rail transport equipment in China, and is the first-class large-scale company in China’s railway equipment manufacturing industry. It has a history of more than 100 years in the railway vehicle field and its products sold to 18 railway bureaus and local railways.

3.Why choose us?

• Customized products that meet the demand of running in different environments. In order to ensure the products performing well in local conditions, We could design and manufacture products according to basic needs of clients.

• Various products, different railway transit products, including EMU&DMU, passenger coach, metro, light rail, tramway, locomotives, freight wagon and others relevant products.

4.High quality after-sale service: We will despatch professional technical stuff to the site for after-sale services, at the same time, we are also a professional agency of railway equipment. What we can provide is not just only railway vehicles but also an integrated system that suitable for any kinds of railway cars' maintenance and refurbishment.
