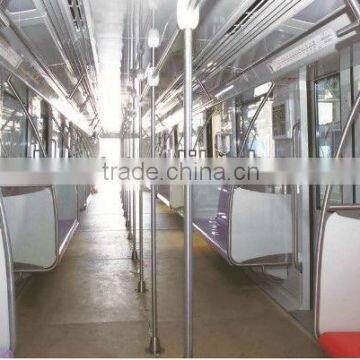

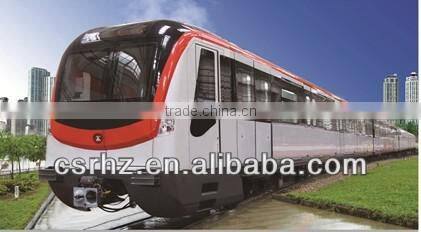

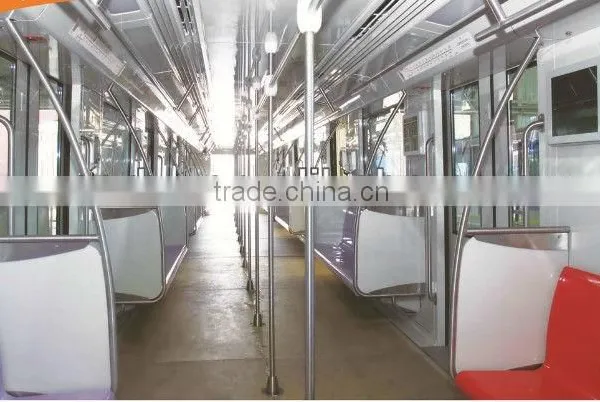

Shanghai Line 10 metro vehicle is the first train in which driverless technique is employed. It adopts the fully automatic control system in its true sense, which is an initiative in terms of high content and big difficulty of technique in China. The safety detection system of the metro vehicleis upgraded based on original technique,which enhances the monitoring capability on doors, cars and essential equipment, as a result, passenger safety is reinforced. The partition between the cab and the car is canceled to enlarge the passenger visual field while the spaciousness of the train is strengthened.
Main technical parameter:
| Passenger capacity: | |
| seating area | 288 passengers/train |
| Fixed passenger capacity AW2(6p/m^2) | 1840 passengers/train |
| Passenger capacity AW3(9p/m^2) | 2452 passengers/train |
| Dynamic performance: | |
| Construction speed | 90km/h |
| Max running speed | 80km/h |
| Air condition: | |
| Refrigeration ability per unit | 42kw |
| car temperature | 27°C |
| car relative humildity | <65% |
| Car dimension: | |
| Car Material | aluminium alloy |
| Total train length | 140914mm |
| Carbody length (Tc) | ≤24857mm |
| Carbody length (Mp/M) | ≤22800mm |
| Carbody height | 3800mm |
| Max. carbody width | 3000mm |
| Min height from floor to inner ceiling plate | 2100mm |
| Height from coupler center line to top rail | 720mm |
| Min heigh of standing area in saloon | 1900mm |
| Distance between bogie centers | 15700mm |
| Stability index: | |
| Jerk limit | 0.75m/s^2 |
| Mean initial acceleration(0-40km/h) | ≥1.0m/s^2 |
| Mean service brake deceleration(80km/h-0) | ≥1.0m/s^2 |
| Mean emergency brake deceleration(80km/h-0) | ≥1.3m/s^2 |
These products may interest you:
The company:
1.Brand: We are the subsidiary company of CSR, which is a big state-owned group called "China South Railway".
2.Experience & Profession: Our parent company is an enterprise specialized in research and manufacture of rail transport equipment in China, and is the first-class large-scale company in China’s railway equipment manufacturing industry. It has a history of more than 100 years in the railway vehicle field and its products sold to 18 railway bureaus and local railways.
3.Why choose us?
• Customized products that meet the demand of running in different environments. In order to ensure the products performing well in local conditions, We could design and manufacture products according to basic needs of clients.
• Various products, different railway transit products, including EMU&DMU, passenger coach, metro, light rail, tramway, locomotives, freight wagon and others relevant products.
4.High quality after-sale service: We will despatch professional technical stuff to the site for after-sale services, at the same time, we are also a professional agency of railway equipment. What we can provide is not just only railway vehicles but also an integrated system that suitable for any kinds of railway cars' maintenance and refurbishment.

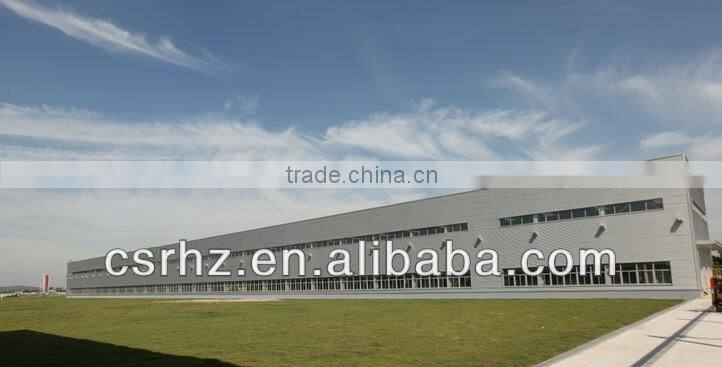

Fast channel to our workshop:
If you have interest in our products & want to know more about our company.
Here is our company home page: www.csrhz.en.china.cn
Please contact us if you have question to us.
Lynn Ye
International Marketing Manager
Mob: +86-13705880033
Tel: +86-57128198903
Fax: +86-57128198905
Skype: hznc2013
