Specifications

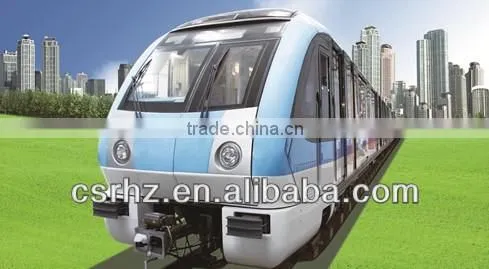

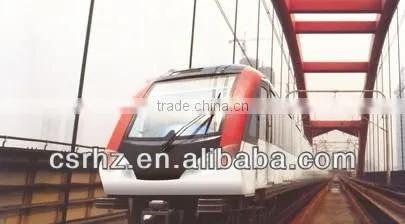

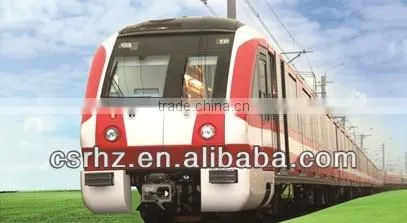

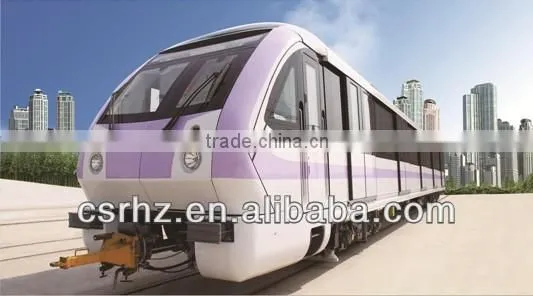

Train marshalling: Usually four cars. It can also be six cars.Mumbai Metro Line 1 trains come to18 sets (108 cars), which are type A wide-body vehicles with 22m length, 3.2m width, 3.8m height per car. They are 20cm wider than normal domestic type A cars and the axle load is 17t.
Main techincal parameters:
| Passenger capacity | |
| Seating area | 200 passengers/train |
| Fixed passenger capacity AW2(6p/m^2) | 1180 passengers/train |
| Passenger capacity AW3(8p/m^2) | 1500 passengers/train |
| Dynamic performance | |
| Construction speed | 90km/h |
| Max running speed | 80km/h |
| Stability index | |
| Jerk limit | 0.75m/s^2 |
| Max acceleration(0-80km/h) | 1.1m/s^2 |
| Mean service brake deceleration(80km/h-0) | ≤1.2m/s^2 |
| Mean emergency brake deceleration(80km/h-0) | ≤1.3~1.4m/s^2 |
| Main structure dimension | |
| Carbody materia | stainless steel |
| Train length | 91400mm |
| Car length | DT car: 23700mm |
| M car: 22000mm | |
| Carbody height | 4090mm |
| Height from coupler center line to top rail | 720mm |
| Bogie | |
| Distance between bogie centers | 15000mm |
| Wheelbase | 2500mm |
| Back to back distance | 1360mm |
| Wheel diameter(New/worn wheel) | 860mm/780mm |
| Emergency evacuation | Side evacuation platform |
| Gangway | Gangway width: 1400mm |
