Factory Conventional Fire Detection and Alarm System AJ-S1016
US$ 191 - 196
/ Set
10 Sets(Min. Order)
- shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | anka | |
| Model Number | AJ-S1016 | Usage | Fire |
Product Description

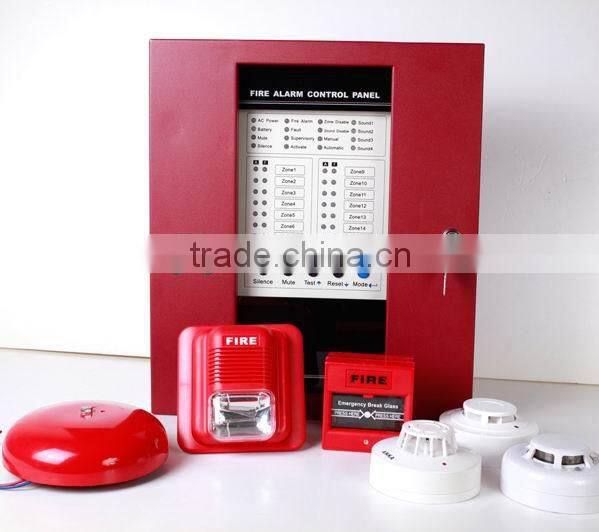

factory conventional fire detection and alarm system
Product Description
Features
1. 4 zone, 8 zone,16 zone optional
2. All zones accept conventional detectors and any normally open
3. Max 25pcs conventional detectors in one zone
4. Support auto/manual for test
5. Each Zone can be disabled
6. Support backup battery
Technical specification
| AC Power | |
| Power | 110-270V AC 50 /60 Hz |
| Wire size | minimum #14 AWG (2.0 mm2) with 600V insulation |
| Battery (lead acid only) | |
| Maximum Charging Circuit | Normal Flat Charge—27.6V @ 0.8 amp |
| Maximum Charger Capacity | 18 Amp Hour batter |
| Sound Output Device Circuits | |
| General Alarm Zones 1 through 16 | |
| Operation: All zones Class B | |
| Normal Operating Voltage | Nominal 24 VDC (ripple = 100 mV maximum) |
| Alarm Current | 15 mA threshold |
| Short Circuit Current | 42 mA maximum |
| Maximum Loop Resistance | 100 ohms |
| End-of-Line Resistor | 4.7K, ½ watt |
| Detector Loop Current is sufficient to ensure operation of two alarmed detectors per zone | |
| Standby Current | 7.26 mA |
| Three Relays Output | |
| Relay contact rating | 2.0 amps @ 30 VDC (resistive), 2.0 amps @ 30 VAC (resistive) |
| Nonresettable 24 VDC Power | |
| Maximum ripple voltage | 10 mVRMS |
| Operating Voltage nominal 24 volts | |
| Total DC current available from this output is up to 500 mA | |
| Recommended maximum Standby current is 150 mA | |
