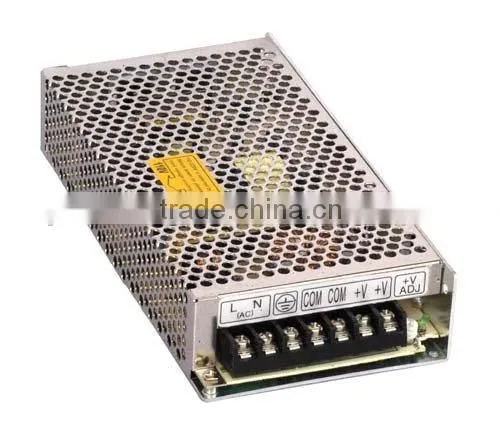

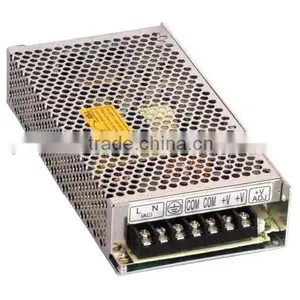

Single Switching Power Supply Smps S145

Name: Single Switching Power Supply Smps S145
Brand: HUAJING
SKU: 118263463

US$ 1 - 100 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

HUAJING

Model Number:

S145

Zhejiang Huajing Rectifier Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name HUAJING

Model Number S145

Output Power 101 - 200W

Output Type Single

Input Voltage Other, 85- 132VAC/180 - 264VAC by switch 47 - 63Hz

Output Frequency 47-63Hz

Specifications

1.single output switch power supply S145 with CE2.Competitived price,Good quality,Shortest lead time 3.Sample order is available

105°C Output capacitor

High efficiency and low operation temperature

Soft-start current can reduce the AC input impact effect

With short-circuit and overload protection

100% full-load burn-in test

Installed with EMI filter, minimum wave

Model Performance	S-145-5	S-145-7.5	S-145-12	S-145-24
DC output voltage	5V	7.5V	12V	24V
Output Voltage Tolerance (Note 2)	±2%	±1%	±1%	± 1%
Rated output current	25A	18A	12A	6A
Output Current Range	0 -25A	0 -18A	0 -12A	0 -6A
Ripple and noise (Note 3)	100mVp-p	100mVp-p	100mVp-p	100mVp-p
Into the line of stability (Note 4)	±0.5%	±0.5%	±0.3%	±0.2%
Load stability (Note 5)	±0.5%	±0.5%	±0.3%	±0.2%
DC output power	125W	135W	144W	144W
Efficiency	78%	80.5%	80.5%	83.5%
DC voltage adjustable range	4.75-5.5V	6-8V	10.8-13.2V	21-28V
Input Voltage Range	85 ~ 132VAC/180 ~ 264VAC by switch 47 ~ 63Hz
Input Current	3.2A /115V,1.6A /230V
Inrush Current	Cole-start Current 35A/115V 60A/230V
Leakage	<1mA/240VAC
Overload	125%~165% Type: pulsing hiccup shutdown Reset: auto recovery
