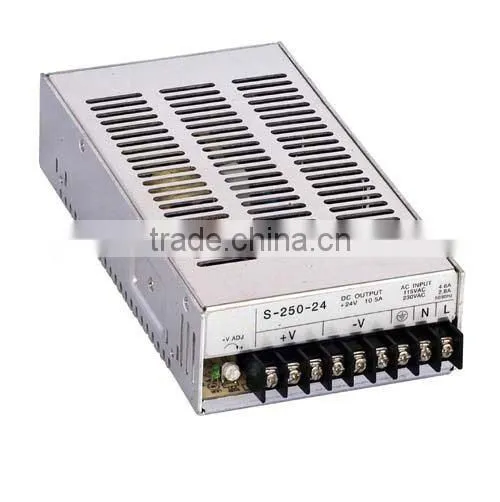

Smps Power Supply S250

Name: Smps Power Supply S250
Brand: HUAJING
SKU: 118263493

US$ 1 - 100 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

HUAJING

Model Number:

S250

Zhejiang Huajing Rectifier Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name HUAJING

Model Number S250

Output Power 201 - 300W

Output Type Single

Input Voltage Other, 88- 132VAC/176 - 264VAC by switch 47 - 63Hz

Output Frequency 47-63Hz

Specifications

1.single output switch power supply S250 with CE2.Competitived price,Good quality,Shortest lead time 3.Sample order is available

105°C Output capacitor

High efficiency and low operation temperature

Soft-start current can reduce the AC input impact effect

With short-circuit and overload protection

100% full-load burn-in test

Installed with EMI filter, minimum wave

Model Performance	S-250-12	S-250-13.5	S-250-15	S-250-24	S-250-27	S-250-48
DC output voltage	12V	13.5V	15V	24V	24V	48V
Output voltage tolerance	±1%	± 1%	± 1%	± 1%	± 1%	± 1%
Rated output current	20A	18A	17A	10A	9A	5A
Output Current Range	0 -20A	0 -18A	0-17A	0 -10A	0-9A	0-5A
Ripple and noise	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p
Into the line of stability	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	± 0.5%
Load stability (Note 5)	±0.5%	± 0.5%	± 0.5%	±0.5%	±0.5%	±0.5%
DC output power	240W	243W	255W	240W	243W	240W
Efficiency	82%	83%	84%	86%	86%	87%
DC voltage adjustable range	10-13.2v	12-15V	13.5-18V	20-26.4V	26-32V	41-56V
Input Voltage Range	88 ~ 132VAC/176 ~ 264VAC BY SWITCH 47~63Hz
AC input current	6A /115V , 3.5A /230V
Inrush Current	20A /115V , 40A /230V
Leakage	<3.5mA/240VAC
Overload	105% ~ 135% Type: FOLDBACK cut output reset: Automatic restore
Fan Control, OTP	RTH1 OR RTH2> = 55°C FAN ON, <= 45°C FAN OFF,> = 70°C Cutting Output
