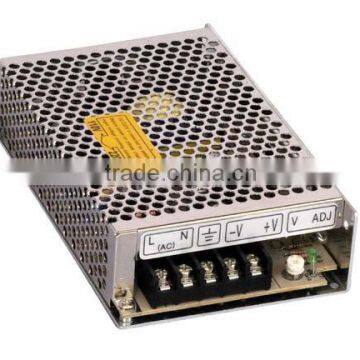

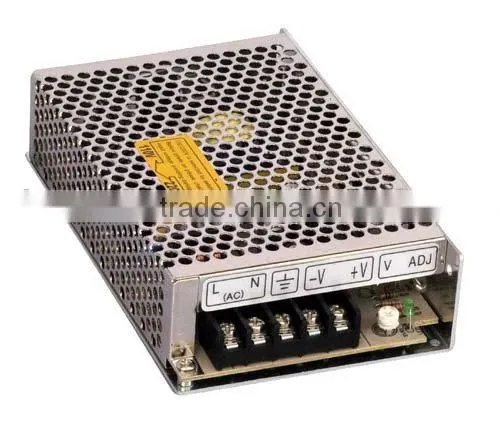

75W Single Output ac Power Supply S75

Name: 75W Single Output ac Power Supply S75
Brand: HUAJING
SKU: 118263441
Availability: InStock

US$ 1 - 100 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

HUAJING

Model Number:

S75

Zhejiang Huajing Rectifier Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name HUAJING

Model Number S75

Output Power 51 - 100W

Output Type Single

Input Voltage Other, 85 - 264VAC/47 -63Hz

Output Frequency 47-63Hz

Specifications

1.single output switch power supply S75 with CE 2.Competitived price,Good quality,Shortest lead time 3.Sample order is available

Competitived price and high reliability

105°C Output capacitor

AC input power suitable for the world

High efficiency and low operation temperature

Soft-start current can reduce the AC input impact effect

With short-circuit and overload protection

Compact size, light weight

100% full-load burn-in test

Installed with EMI filter, minimum wave

Model Performance	S-75-5	S-75-12	S-75-15	S-75-24
DC output voltage	5V	12V	15V	24V
Output Voltage Tolerance (Note 2)	± 2%	± 1%	± 1%	± 1%
Rated output current	15A	6.3A	5A	3.2A
Output Current Range	0 -15A	0 -6.3A	0 -5A	0 -3.2A
Ripple and noise (Note 3)	70mVp-p	120mVp-p	120mVp-p	120mVp-p
Into the line of stability (Note 4)	± 0.5%	± 0.5%	± 0.4%	± 0.5%
Load stability (Note 5)	± 1%	± 0.5%	± 0.5%	± 0.5%
DC output power	75W	75.6W	75W	76.8W
Efficiency	71%	78%	78%	82%
DC voltage adjustable range	+10, -5%	± 10%	± 10%	± 10%
Input Voltage Range	85 ~ 264VAC/47 ~ 63Hz;
Input Current	1.6A /115V,0.8A /230V
Inrush Current	Current 30A/115V 60A/230V cold start
Leakage	<3.5mA/240VAC
Overload	105% ~ 150% Type: PULSING HICCUP SHUTDOWN RESET: Automatic recovery
Over Voltage Protection	115% ~ 135%
