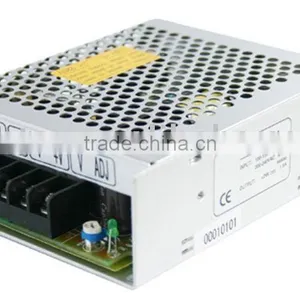

AC-DC Single Switching Mode Power Supply

Name: AC-DC Single Switching Mode Power Supply
Brand: Huajing
SKU: 118263345

US$ 1 - 100 MOQ: 50 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Huajing

Model Number:

S-35

Zhejiang Huajing Rectifier Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Huajing

Model Number S-35

Output Power 1 - 50W

Output Type Single

Input Voltage Other, 85~132VAC/170~264VAC selected by switch

Output Voltage 5v/12v/15v/24v

Output Frequency 47~63hZ

Output Current selected by switch

Specifications

ac/dc power supply
1.Competitive price,Good quality,Shortest lead time
2.With CE Approval
3. 2 years quality gurantee

Power Supply,SMPS:

ac/dc 35W Single Output Switching Power supply

Features:

1.Low price and high reliability

2.AC input power suitable for the world

3.High efficiency and low operation temperature

4.2 year warranty

5.100% full-load in test

Technical parameter:

Model	S-35-5	S-35-12	S-35-15	S-35-24
Model	S-35-5	S-35-12	S-35-15	S-35-24
DC output voltage	5V	12V	15V	24V
Output voltage error(Note2)	±2%	±1%	±1%	±1%
Rated output current	7A	3A	2.4A	1.5A
Output current rage	0-7A	0-3A	0-2.4A	0-1.5A
Wave and noise(Note3)	75mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability(Note4)	±0.5%	±0.5%	±0.5%	±0.5%
Load stability(Note5)	±1%	±0.5%	±0.5%	±0.5%
DC output power	35W	36W	36W	36W
Efficiency	70%	76%	78%	78%
Adjustable range for DC voltage	±10,-5%	±10%	±10%	±10%
AC input voltage range	85~132VAC/170~264VAC selected by switch
Input current	0.85A/115V 0.45A/230V
AC impulse current	Cold-start current 18A/115V 36A/230V
Leakage current	<0.5mA/240VAC
Overload protection	105%150% Type: current limiting; Reset; auto recovery
Temperature coefficient	±0.03%(050)
Setup rise hold up time	200ms,100ms,30ms
Vibration	10500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltage	Input and output interval:1.5KVAC,Input and enclosure:1.5KVAC,Output and enclosure:0.5KVAC
Isolation resistance	Input and output interval,Input and enclosure,Output and enclosure0500VAC/100M Ohms
Working temperature and humidity	-10+60,20%90%RH
Store temperature and humidity	-20+85,10%95RH
