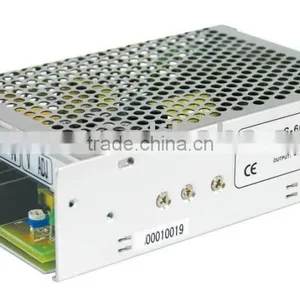

Switching Mode Power Supply

Name: Switching Mode Power Supply
Brand: Huajing
SKU: 118263353

US$ 1 - 100 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Huajing

Model Number:

S-60-24

Zhejiang Huajing Rectifier Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Huajing

Model Number S-60-24

Output Power 101 - 200W

Output Type Single

Input Voltage Other, 85~132VAC/170~264VAC selected by switch

Output Frequency 47~63Hz

Specifications

Switching mode Power Supply
Competitive price,Good quality,Shortest lead time
With CE Approval
2 years quality gurantee

Switching mode Power Supply

Features:

1.Low price and high reliability

2.AC input power suitable for the world

3.High efficiency and low operation temperature

4.2 year warranty

5.100% full-load in test

Technical parameter:

Model	S-60-5	S-60-12	S-60-15	S-60-24
Model	S-60-5	S-60-12	S-60-15	S-60-24
DC output voltage	5V	12V	15V	24V
Output voltage error	±2%	±1%	±1%	±1%
Rated output current	12A	5A	4A	2.5A
Output current rage	0-10A	0-4.2A	0-3.4A	0-2.1A
Wave and noise	75mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability	±0.5%	±0.5%	±0.5%	±0.5%
Load stability	±1%	±0.5%	±0.5%	±0.5%
DC output power	60W	60W	60W	60W
Efficiency	71%	78%	78%	82%
Adjustable range for DC voltage	±10,-5%	±10%	±10%	±10%
AC input voltage range	85~132VAC/170~264VAC selected by switch
Input current	2A/115V 1A/230V
AC impulse current	Cold-start current 30A/115V 60A/230V
Leakage current	<1mA/240VAC
Overload protection	105%150%TypeTOLDBACK Reset: auto recovery
Temperature coefficient	±0.03%(050)
Setup rise hold up time	200ms,100ms,30ms
Vibration	10500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltage	Input and output interval1.5KVAC,Input and enclosure1.5KVAC,Output and enclosure0.5KVAC
Isolation resistance	Input and output interval,Input and enclosure,Output and enclosure0500VAC/100M Ohms
Working temperature and humidity	-10+60,20%90%RH
Store temperature and humidity	-20+85,10%95RH
