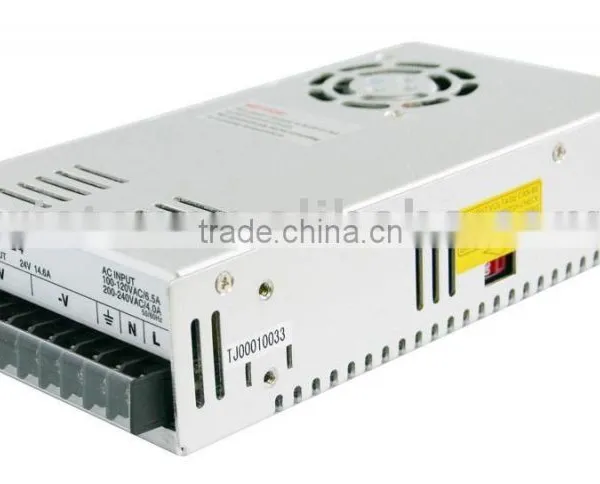

Industrial Power Supply 320W

Name: Industrial Power Supply 320W
Brand: Huajing
SKU: 118263363

US$ 1 - 100 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Huajing

Model Number:

S-145-12

Zhejiang Huajing Rectifier Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Huajing

Model Number S-145-12

Output Power 101 - 200W

Output Type Single

Input Voltage 110V

Output Frequency 47~63Hz

Specifications

industrial Power supply
1.Competitive price,Good quality,Shortest lead time
2.With CE Approval
3. 2 years quality gurantee

industrial Power supply Switching Power supply,SMPS: 145W Single Output Switching Power Supply CE approval

Features:

1.Low price and high reliability

2.AC input power suitable for the world

3.High efficiency and low operation temperature

4.2 year warranty

5.100% full-load in test

Technical parameter:

Model	S-145-5	S-145-7.5	S-145-12	S-145-24
Model	S-145-5	S-145-7.5	S-145-12	S-145-24
DC output voltage	5V	7.5V	12V	24V
Output voltage error	±2%	±1%	±1%	±1%
Rated output current	25A	18A	12A	6A
Output current rage	0- 30A	0- 21A	0-14A	0-7A
Wave and noise	100mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability	±0.5%	±0.5%	±0.3%	±0.2%
Load stability	±0.5%	±0.5%	±0.3%	±0.2%
DC output power	125W	135W	144W	144W
Efficiency	78%	80.50%	80.50%	83.50%
Adjustable range for DC voltage	4.75-5.5V	6-8V	10.8-13.2V	21-28V
AC input voltage range	85~132VAC/180~264VAC selected by switch 47~63Hz;255~370VDC
Input current	3.2A/115V 1.6A/230V
AC impulse current	Cold-start current 35A/115V 60A/230V
Leakage current	<1mA/240VAC
Overload protection	125%165%Type:pulsing hiccup shutdown Reset: auto recovery
Temperature coefficient	±0.03%(050)
Setup rise hold up time	200ms,100ms,30ms
Vibration	10500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltage	Input and output interval1.5KVAC,Input and enclosure1.5KVAC,Output and enclosure0.5KVAC
Isolation resistance	Input and output interval,Input and enclosure,Output and enclosure500VAC/100M Ohms
Working temperature and humidity	-10+60,20%90%RH
Store temperature and humidity	-20+85,10%95RH
