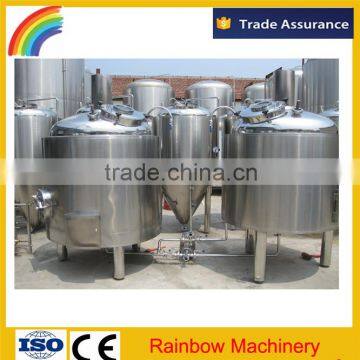

800L mash&lauter tun, beer brewery equipment/beer brewing machine

Name: 800L mash&lauter tun, beer brewery equipment/beer brewing machine
Brand: RAINBOW
Availability: InStock

FOB Price

USD $45,000 - $49,999 / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	RAINBOW	Model Number	RM-800L
Processing Types	Alcohol	Voltage	Request
Power(W)	0-80KW	Dimension(LWH)	Depends
Weight	200KG-2000KG	Certification	CE ISO
Warranty	3 Years, 3 years	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

800L mash&lauter tun, beer brewery equipment/beer brewing machine

Specifications

1. Two or three vessels brewhouse:

two or more different combinations according to customers' demands:

mash/lauter tank, kettle/whirlpool tank, HLT

mash/brew kettle, lautering tun/whirlpool

2. Steam or electric heating,

3. 4-8 fermenters, which also can be serving tanks

4. CIP Cleaning system

5. Cooling compressor and glycol tank

6. PLC/semi-auto controlling system, separate control for each fermenters

Here follows is the parameter of 800L brewery, please check for reference.

Item	Equipment	Specification	Quantity
Malt miller	Malt miller	200kg/h	1
Brewhouse system	Mash tun&lautering tun	800L	1
	Brew kettle&whirlpool	800L	1
	Hot liquid tank	800L	1
	Plate heat exchanger	3m²	1
	Pump	3m³/h	1
	Wort oxygenator		1
Fermentation system	Fermenter	800L	6
Fermentation system	Yeast adding tank	30L	1
Cooling system	Glycol water tank	800L	1
	Refrigerator	3hp	1
	Pump	3m³/h	1
CIP washing system	Alkali tank	50L	1
	Sterilization tank	50L	1
	Pump	3m³/h	1
Control system	Digital display control box		1
Spare parts	All the necessary spare parts

Heating source: electricity, gas fired heating or steam

Material: stainless steel 304 or copper

Warranty period: 36 months for main equipment

Equipment

Component

1. Milling System

Malt Miller

2.Brewhouse System

Two different combinations:

-Mash/Lauter Tun

-Brew/whirlpool Tin

-Hot liquid tank

--Mash/brew Tun

--Lauter/whirlpool Tun

Mash/Lauter tun installed mash agitator,

Installed rakers and false buttom for grains separation

-Usage:

Mashing, mixing-stainless steel mixer driven by variable-frequency

motor, lautering-eparation of mash grains from wort during wort producing

process.

Brew/whirlpool tun, wort boiling and make wort whirlpooling

-Usage: wort boiling and whirlpooling

-Wort Whirlpool-sanitary centrifugal mash pump activate the whirlpooling.

-Heating: electricity gas fired or stream

Hot water tank-water heating and hot water storing/preparation

connected to the controller for automatic temperature controlling

-Top domed lighted sight glass

-Top domed manway door/glass manway door

-PT100, connected to the controller for automatic temperature controlling

-Sanitary centrifugal mash pump

-wort pump:food grade sanitary and high efficiency wort pump

-wort cooling: Two stages or single stage Plate heat exchanger

-Flow sight glass

-360°spray ball cleaning with high efficiency

-spray CIP balls(2)

-Top dome wort/water inlet

-Bottom mash inlet/outlet

-Outlet/drainage connection DN40

-Inlet connection DN32

-All necessary pipings, pipes and fittings

3.Fermenting System

-Usage: fermentation, maturation and storage

-Top domed with conical bottom

-Material: SUS 304, inner thickness 3mm, outer thickness1.5,2,3mm

Insulation: PU100mm

-Top manway

-Cone bottom, 60 degree

-Pressure gauge

-Safety/vacuum valve

-Working pressure: 0.15Mpa

-Testing pressure: 0.3Mpa

-Cooling jackets on both cylinder and cone

-Inside 360 rotating CIP ball

-Thermowell, 8mm

-Temperature sensor, Model: PT100

-Wort piping and butterfly valves, ø32mm

-Drainage piping and butterfly valve, ø38mm

-3 legs with adjustable bolts

4.Cooling System

Glycol water tank

-Material:

Inside wall, SUS 304, 3mm,outside wall, SUS 304, 1.5mm

Insulation, PU, 100mm

-Thermowell, 8mm

-Temperature sensor, Model: PT100

-Water supply piping: ø32mm

-Drainage piping and butterfly valve, ø32mm

Including all pipes, fitting, insulation materials

Cooling compressor

-Scroll copeland type compressor

-Capacity: 3-7hp according to the capacities

-Refrigerant: R404A

5.CIP System

CIP Unit

-Capacity: 30-100L

-SUS 304 material

-Water pump, 3t/h

6.Controlling System

Digital display control system

-Brewhouse temp. and time setting/controlling

-Fermenting temp. setting and controlling

-Cooling temp. setting and controlling

-All pump, agitators control

-All themocouple, solenoid valves control

Spare Parts

Pipe line for brewhouse	SUS304
Measuring cylinder	SUS304
Butterfly valve	Ø32
Butterfly valve	Ø38
Sight glass	Ø32
Saccharimeter	0-10; 10-20
Spent grains harrow	SUS 304
Fermenter’s safety valve	ø32
Fermenter’s Sample valve	ø32
Pressure gauge	0-0.6Mpa
Pipe line for cooling unit	SUS 304
Cooling water solenoid valve	ø32
Cooling pipe insulation
Expansion valve for cooling compressor
Control box cable
Signal wire
SIEMENS frequency convertor	V20
Electric relay	Omron
Temperature sensor	PT100

Quality Controlling

Packaging & Shipping

1.LCL/FCL(20GP/40GP/40HQ)

2.Packed with soft material or packed in fumigation wooden case and fixed onto iron frame

3.standard exporting packing, suitable for long time marine shipping

4.According to customer's requirements

Feature & Apply

Features&Applications:

1.Using siemens PLC control system(or digital display control system) can get the required standards of free switch from automatic to manual.

2.The brewer can also brew draft beer, pale beer, brown beer, stout beer etc,

to meet different taste of customers.

3.We also have the capacity of 100L, 200L, 300L, 500L, 1000L, 2000L, 3000L, 5000L, 8000L, etc per patch for your reference.

OPTION: We can also supply these machines together with our brewery equipments;

beer filling line,

bottle washing machine,

filling machine,

capping machine,

pasteurization tank,

labelling machine.

And beer kegs(10L,20L,30L,50L...), beer tower.

Kegs washer and filler.

Steam boiler.

It can be customized, such as the capacity, material, voltage, heating source, etc.

4. Provide beer production technology and brewing formula, installation and personal training.

Clients' Country

Germany, Czech Republic, USA, Canada, Russia, Sweden,

Paraguay, Singapore, Australia, Finland. etc

Functions

1-Brew all kinds of beer: pale beer, brown beer, stout beer....

2-Customize: a. capacity(100L, 200L, 300L, 500L, 1000L, 10BBL, 2000L, 3000L...)

b. voltage(220v or 380v or other electricity voltage )

c. material thickness(our standard is inner wall 3mm sus 304, outer wall 1.5mm sus304,

insulation 100mmPU or rock wool)

d. dimension of all the tanks(length, height, width)

e. heating source(electric, steam, direct gas fire heating)

3-Water and Pressure Test is made before shipment.
