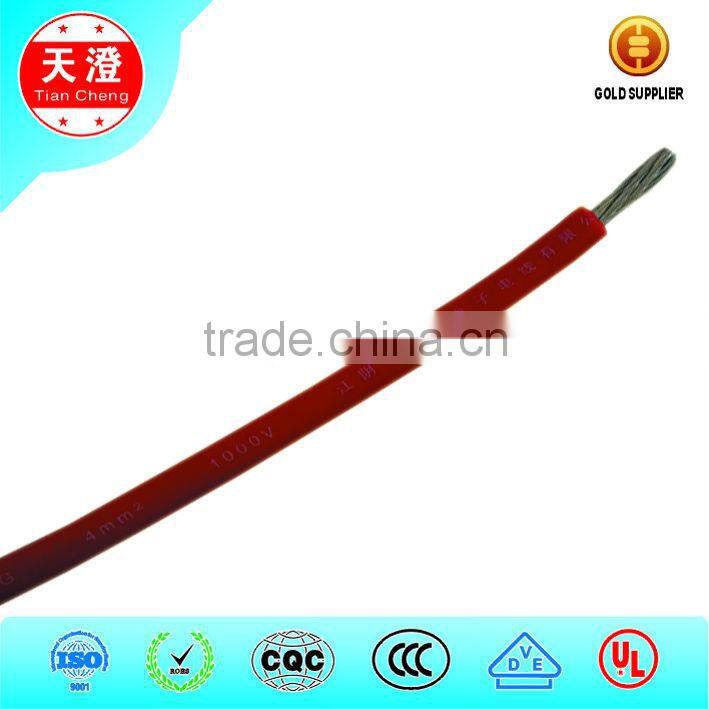

Help CenterRed 4mm2 JG-1000V Silicone Rubber Lead Wire Used for Electrical Motor
Related Products
-
UL3134 Non-braid 200C 600V Silicone Coated WireUS$ 0.1 - 50MOQ: 500 Meters -
180C 500V AGR Braidless Silicone Coated Wire and CableUS$ 0.03 - 20MOQ: 1000 Meters
-
UL 3132 Silicone Rubber Heat Resisting Wire/CableNegotiableMOQ: 5000 Meters
-
UL 3136 Heat Resist Silicone Rubber Insulation WireUS$ 0.05 - 1MOQ: 1000 Meters
-
0.6KV 150C High Temperature UL3137 Silicone Heat Resistant Leading WiresUS$ 0.05 - 5MOQ: 2000 Meters
Specifications
Silicone Rubber lead Wire1 high quality,low price
2 professional OEM manufature
3 VDE,UL,CCC,ISO
Red 4mm2 JG-1000V Silicone Rubber lead Wire used for Electrical Motor Specifications
1.Rated voltage:1000V
2,Rated temperature: -60~+180 deg.C
3.Conductor:tin-coated copper wire
4.Insulator:Silicone rubber
Product dimensions
|
Spec. mm |
Conductor |
Insulation |
Wire dimeter |
Max resistance 20°C (Ω/KM) |
|||
|
Structure No/mm |
Diameter mm |
Nominal Thickness mm |
Min Thickness mm |
Nominal mm |
Tolerance mm |
||
0.75 |
24/0.20 |
1.15 |
1.2 |
0.98 |
3.55 |
±0.15 |
26.7 |
1.0 |
32/0.20 |
1.34 |
1.2 |
0.98 |
3.75 |
±0.15 |
20.0 |
1.5 |
30/0.25 |
1.60 |
1.2 |
0.98 |
4.00 |
+0.20 -0.15 |
13.7 |
2.5 |
49/0.25 |
2.00 |
1.2 |
0.98 |
4.40 |
+0.30 -0.15 |
8.21 |
4.0 |
56/0.30 |
2.70 |
1.4 |
1.16 |
5.50 |
+0.30 -0.15 |
5.09 |
6.0 |
84/0.30 |
3.30 |
1.4 |
1.16 |
6.10 |
+0.30 -0.15 |
3.39 |
10.0 |
84/0.40 |
4.60 |
1.6 |
1.34 |
7.80 |
+0.30 -0.15 |
1.95 |
16.0 |
126/0.40 |
5.80 |
1.6 |
1.34 |
9.00 |
+0.40 -0.20 |
1.24 |
25.0 |
196/0.40 |
7.30 |
1.8 |
1.52 |
10.90 |
+0.40 -0.20 |
0.795 |
35.0 |
276/0.40 |
8.60 |
2.0 |
1.7 |
12.60 |
+0.40 -0.20 |
0.565 |
50.0 |
396/0.40 |
10.7 |
2.2 |
1.88 |
15.10 |
+0.40 -0.20 |
0.393 |
70.0 |
360/0.50 |
12.4 |
2.2 |
1.88 |
16.80 |
+0.40 -0.20 |
0.277 |
95.0 |
475/0.50 |
14.5 |
2.4 |
2.06 |
19.30 |
+0.50 -0.25 |
0.21 |
120.0 |
608/0.50 |
16.0 |
2.4 |
2.06 |
20.80 |
+0.50 -0.25 |
0.164 |
150.0 |
756/0.50 |
18.0 |
2.6 |
2.24 |
23.20 |
+0.50 -0.25 |
0.132 |
185.0 |
925/0.50 |
20.0 |
2.6 |
2.24 |
25.20 |
+0.50 -0.25 |
0.108 |
240.0 |
1221/0.50 |
23.0 |
2.8 |
2.42 |
28.60 |
+0.50 -0.25 |
0.0817 |
300.0 |
1517/0.50 |
26.0 |
3.2 |
2.78 |
32.40 |
+0.50 -0.25 |
0.0654 |
Production Line
Product show
Certificates
Quality Control & Test Instruments
Factory Overlook
If you want to see more products of our company,
you can surf our web site: http://cntianchengdzdx.en.china.cn/
