Help Center30strings VDE HO5S-K Heat Resist Silicone Rubber Wire/Cable
Related Products
-
High Quality UL3135 Non-Braid 200C Silicone Rubber WireUS$ 0.1 - 1MOQ: 500 Meters -
7strands UL3135 Braidless 200C 600V Silicone Coated WireUS$ 0.1 - 1MOQ: 500 Meters
-
#20 Silicone Glass Braid Appliance High Temperature Wire 1000FeetUS$ 0.1 - 5MOQ: 1000 Meters
-
Green Color UL3134 Braidless 200C 600V Silicone Coated WireUS$ 0.1 - 50MOQ: 500 Meters
-
Non-braid High Quality High Temperature Silicone Insulated VDE Wire CableUS$ 0.02 - 4MOQ: 2000 Meters
Specifications
heat resist wireRated Voltage:300/500V
Rated temperature:-60degreeC~+180degreeC
Conductor: bare copper wire, tinned copper

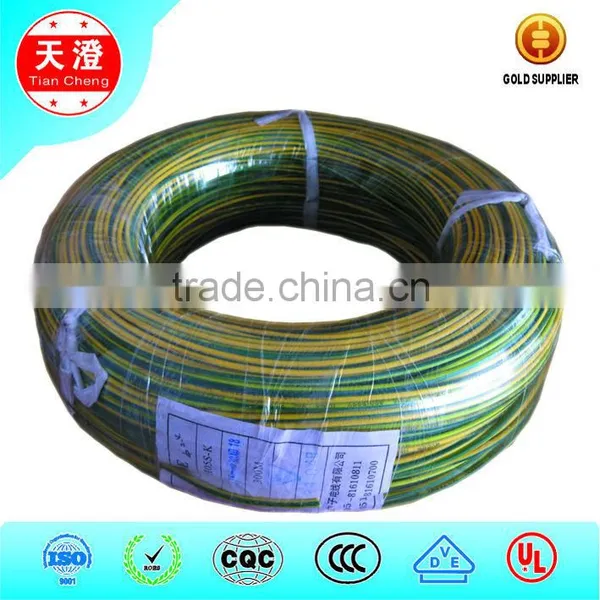

30strings VDE HO5S-K Heat Resist Silicone Rubber Wire/Cable
Insulator: silicone rubber
Applicable for high temperature environment, such as electron, electrical household appliance, lightening, electrical equipment and electrical motors
section |
conductor |
insulation |
Wire OD |
Conductor resistance |
|||
structure |
diameter |
Nominal thick |
Min. thick |
Nominal |
allowance |
20°C |
|
mm² |
No./mm |
mm |
mm |
mm |
mm |
mm |
Ω/KM |
0.5 |
28/0.15 16/0.20 |
0.95 |
0.80 |
0.62 |
2.55 |
±0.15 |
40.1 |
0.75 |
24/0.20 |
1.15 |
0.80 |
0.62 |
2.75 |
±0.15 |
26.7 |
1.0 |
32/0.20 |
1.34 |
0.80 |
0.62 |
2.95 |
±0.15 |
20.0 |
1.5 |
30/0.25 |
1.60 |
0.90 |
0.71 |
3.40 |
±0.20 |
13.7 |
2.5 |
50/0.25 |
2.00 |
1.00 |
0.80 |
4.00 |
±0.20 |
8.21 |
4.0 |
56/0.30 |
2.70 |
1.00 |
0.80 |
4.70 |
±0.20 |
5.09 |
6.0 |
84/0.30 |
3.30 |
1.00 |
0.80 |
5.30 |
±0.20 |
3.39 |
Features
1. Excellent for heat & cold resistance, high flexibility as particular characteristic of silicone rubber.
2. Various type for each application.
(high tear strength, high voltage, heat resistant, flame retardant)
3. Continuous Temp : -60~ 200°C (PEAK , 230°C)
4. Range voltage : 300V ~ 20KV
Application
- Internal wiring of high temperature part.
- Lead wire for home appliance
- Used for internal wiring of appliances, electrical equipment, and lighting fixtures
Approved
- UL File . E332921
- AWM 3068,3069,3071,3074,3075,3122,3123,3132,3133
3134,3135,3136,3137,3142,3172,3212,3231,3240,3241,
3512,3529,3530,3536,3316,3323,3350,3589,3130,3219
3222,3223
