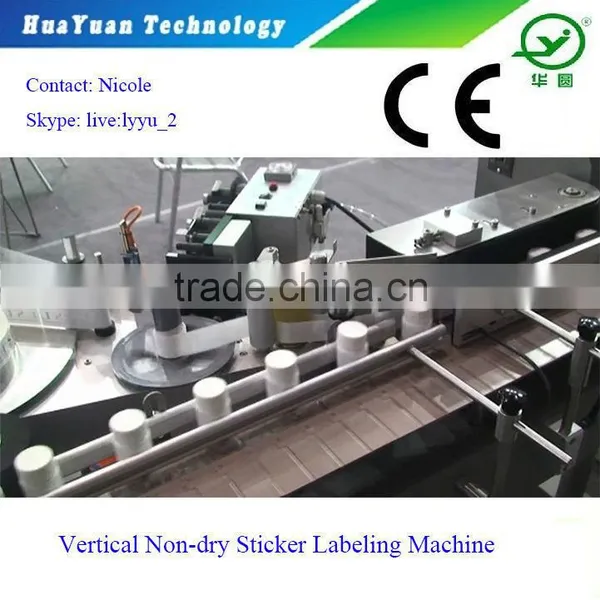

Automatic Non-dry Affixing Label Machinery / Sticking Machine
This machine is mainly applied to the packaging lines of medicines, foodstuffs, chemicals, cultural goods, cosmetics and light industries etc. it can be used for non-drying-glue labeling onto the plastic bottles and glass bottles.
It is mainly used in pharmaceuticals , food , chemicals , stationery, cosmetics , light industry, glass bottle packaging line plastic sticker affixed to use.
No labeling round bottle after bottle of equidistant distance ; electric eye sensor to measure objects to send the bottle labeled emits a beacon signal , when the bottle after stripping send scaler board is on the label label label , while backing paper synchronization rewind , help smooth the label labeling standard device .
1 . High quality servo motor, brake lock system to send standard , good stability, high labeling accuracy .
2 . Optional wheel down and stop when the label of a bottle inadequate ( just clear the alarm can be used normally ) , the label run out or shut off the alarm and standard time .
3. PLC with the man-machine interface , easy to read and easy to read , nice , fully functional.
4. 50 group labeling parameters memory for fast changeover into production .
5. The whole selection of SUS304 and anodized aluminum , in line with GMP requirements.
6 .The machine with optional printing device , replace the word tablets and ribbon quick and easy.
Model |
Max speed(bottle/M) |
Sticker length (mm) |
Bottle diameter (mm) |
Voltage |
Power(KW) |
Air pressure (MPa) |
Overall dimension(L*W*H)mm |
GW (kg) |
TBJ-30 |
150-300 |
10-300 |
φ16-120 |
AC220V 50/60Hz |
1.0 |
0.5-0.7 |
2500*1100*1650 |
200 |
