20kw Stamford Alternator/ Stamford Alternator/ Stamford Alternator Parts

20kw Stamford Alternator/ Stamford Alternator/ Stamford Alternator Parts thumbnail-1
20kw Stamford Alternator/ Stamford Alternator/ Stamford Alternator Parts photo-1
US$ 75 - 99,999 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
I-MAX
Model Number:
20kw
Contact Supplier Request Quote Chat Now
Fuzhou I-Max Enterprise Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name I-MAX
Model Number 20kw
Output Type AC Three Phase
Speed 1500rpm / 1800rpm
Frequency 50Hz / 60Hz
Rated Power 20kw
Rated Voltage 380V / 400V / 440V (optional)
Rated Current as per voltage & power

Specifications

20kw stamford alternator
stamford brushless alternator
high performance
Single /Double bearing
1 year warant

 20kw stamford alternator/ stamford alternator parts


Product Description







20kw stamford alternator/ stamford alternator/ stamford alternator parts




 General Features



* Overload protection for safe running

* Top quality & Easy maintenance

* Stamford technology

* Single bearing or Double bearing

* Easy to be connected with power networks or other generator sets

* 4 POLE, Brushless, H class insulation, IP23, A.V.R. 100% Copper



20kw stamford alternator/ stamford alternator/ stamford alternator parts

20kw stamford alternator/ stamford alternator/ stamford alternator parts





STAMFORD TECHNOLOGY--



20kw stamford alternator/ stamford alternator/ stamford alternator parts



* IMAX Series AC Brushless alternators are confomity to GB755, IECBS5000, VDE0530,NEMA MG1-22 & IEC34, CSA C 22.2-100standards

* The 2/3 pitch windings avoid excessive neutral currents, ensure lw waveform distortion.

* The stamford alternators with SX440 or SX460 AVR, low frequency protection & exterior voltage adjustments.



Model Alternator POWER Dims
1500rpm / 50Hz, 400V 1800rpm /60Hz, 440V
  KW KVA KW KVA cm
iM164A 6.5 8.1 8.2 10.3 58*56*62
iM164B 8.8 11 11 13.8 58*56*62
iM164C 10.8 13.5 13.5 16.9 58*56*62
iM164D 12.8 16 16 20 58*56*62
iM184E 18 22.5 23 28.8 72*56*62
iM184F 22 27.5 27.5 34.4 72*56*62
iM184G 25 31.3 30 37.5 72*56*62
iM184H 30 37.5 37.5 46.9 72*56*62
iM184J 32 40 40 50 72*56*62
iM224C 34 42.5 42 52.5 84*58*90
iM224D 40 50 50 62.5 84*58*90
iM224E 48 60 56 70 93*58*90
iM224F 58 72.5 70 87.5 93*58*90
iM224G 68 85 78 97.5 97*58*90
iM274C 80 100 94 117.5 94*69*97
iM274D 91 113.8 110 137.5 94*69*97
iM274E 112 140 134 167.5 94*69*97
iM274F 128 160 152 190 106*69*97
iM274G 144 180 174.8 218.5 111*69*97
iM274H 160 200 196 245 116*69*97
iM274J 184 230 224.8 281 116*69*97
iM274K 200 250 239.2 299 116*69*97
iM314C 200 250 235 294 133*79*106
iM314D 236 295 280 350 133*79*106
iM314E 260 325 315 394 133*79*106
iM314F 304 380 365 456.3 133*79*106
iM354C 360 450 440 550 149*87*116
iM354D 400 500 475 594 149*87*116
iM354E 480 600 570 712.5 149*87*116
iM354F 536 670 620 775 149*87*116
iM404C 600 750 640 800 169*98*135
iM404D 640 800 720 900 169*98*135
iM404E 720 900 800 1000 169*98*135
iM404F 800 1000 900 1125 169*98*135
iM404G 900 1125 1000 1250 169*98*135
iM404H 1000 1250 1100 1375 169*98*135



20kw stamford alternator/ stamford alternator/ stamford alternator parts

--Double bearing



20kw stamford alternator/ stamford alternator/ stamford alternator parts



20kw stamford alternator/ stamford alternator/ stamford alternator parts

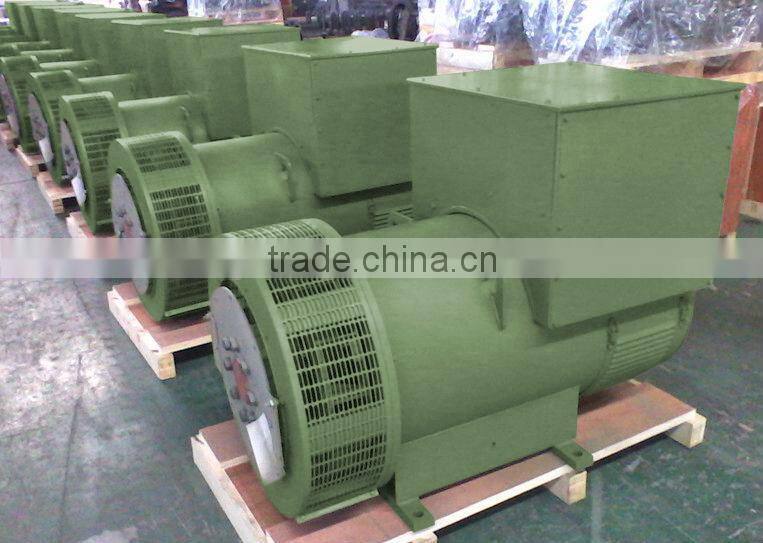

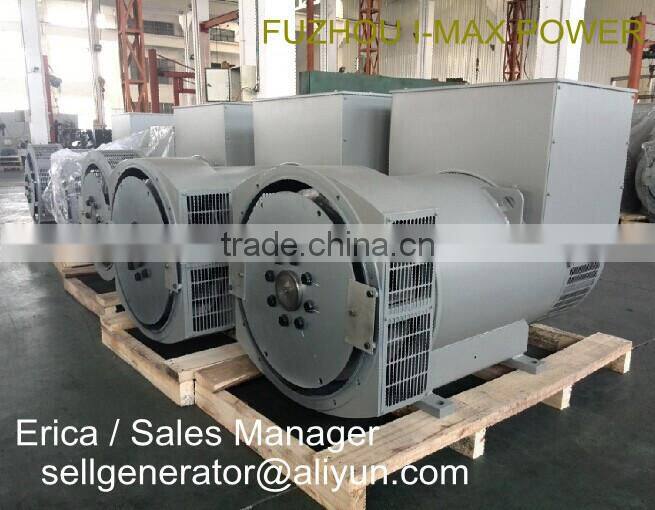

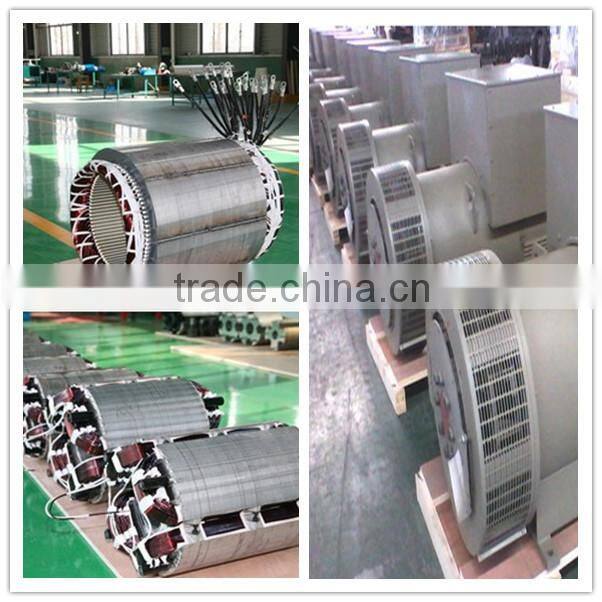

--Production views



 20kw stamford alternator/ stamford alternator/ stamford alternator parts

100%  COPPER STAMFORD TECHNOLOGY ALTERNATORS



20kw stamford alternator/ stamford alternator/ stamford alternator parts



 20kw stamford alternator/ stamford alternator/ stamford alternator parts

 20kw stamford alternator/ stamford alternator/ stamford alternator parts



20kw stamford alternator/ stamford alternator/ stamford alternator parts



20kw stamford alternator/ stamford alternator/ stamford alternator parts


Our Services

Warrantee:  12 months. During the warranted time, our company would be responsible for problems caused by quality of production or raw material, we send spare parts 2% which is problem free of charge, except the damageable spare parts of alternators caused by incorrect man-made operation. After expiration, our company provides cost maintenance. Further terms could be negotiable!



ATTENTION!!! WHY CHOOSE FUZHOU I-MAX ALTERNATORS?

20kw stamford alternator/ stamford alternator/ stamford alternator parts

20kw stamford alternator/ stamford alternator/ stamford alternator parts





If you are interested in the above products or would like to have more information, pls visit our webiste or call us 0086-15860695366 (24 hrs online), we will get back to you as soon as possible!
