10kw-50kw dynamo prices/ 10kw-50kw dynamo generators for sale

Specifications

10kw-50kw TFW dynamo
10kw-50kw dynamo prices/
dynamo manufacture 10 years
18 days delivery
1 year warrantee



10kw-50kw TFW dynamo generators for sale



General Features:

TFW series brushless three-phase synchronous dynamo generators/alternators are made by introducing and developing on foreign advanced technology of well-known generators and they are our newly developed products.



TFW series dynamo generators / alternators' are 3 phase 4 wires system. Voltage 400v/230v, 50hz, power factor 1.0-08(lag).



TFW series dynamo generators/alternators could be connected with ganging or bell, they are widely used forsmall travelling or stationary power station, standby powers for the departments, shops or building site.etc.



TFW dynamo generator/alternators exciting method and automatic controlling  by AVR. It has following features; small-size, light-weight, good appearance and perfect performance.

The technical performance and mounting dimension of TWG series generators are conformity to international IEC and relevant national standard, the quality of products can reach up-to-day international level







 10kw-50kw TFW dynamo generators for sale





Specification Data





Model	Rated Power		Votage	Current	Rated P.F.	Speed Rotation
	(KW	KVA	V	A	(Cos Φ )	RPM
TFW-10	10	12.5	400	18.1	0.8	1500
TFW-12	12	15	400	21.6	0.8	1500
TFW-16	16	20	400	28.8	0.8	1500
TFW-20	20	25	400	36.1	0.8	1500
TFW-24	24	30	400	43.2	0.8	1500
TFW-30	30	37.5	400	54.1	0.8	1500
TFW-40	40	50	400	72.2	0.8	1500
TFW-50	50	62.5	400	90.2	0.8	1500



 10kw-50kw TFW dynamo generators for sale

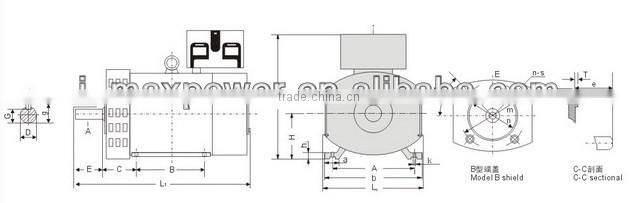

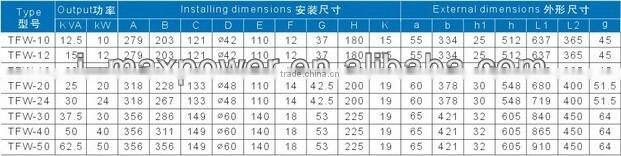

Overall & Mounting Dimension













 10kw-50kw TFW dynamo generators for sale

  - Packings





Dynamo Warrantee:  12 months. During the warranted time, our company would be responsible for problems caused by quality of production or raw material, we send spare parts 2% which is problem free of charge, except the damageable spare parts of dynamo caused by incorrect man-made operation. After expiration, our company provides cost maintenance. Further terms could be negotiable!



ATTENTION!! Why choose FUZHOU I-MAX Dynamo ?



If you are interested in the above products or would like to have more information, pls visit our webiste or call us 0086-15860695366 (24 hrs online), we will get back to you as soon as possible!
