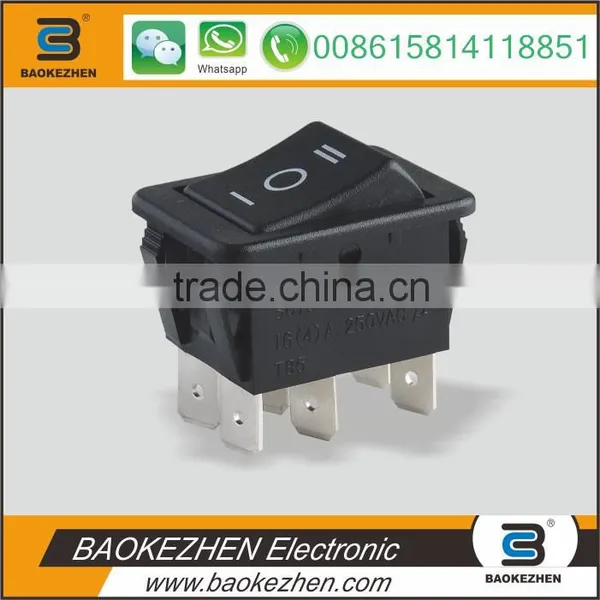

SC787 Electrical Double Pole Rocker Switch for Oven and Stirrer, T125 1E4/5E4

Name: SC787 Electrical Double Pole Rocker Switch for Oven and Stirrer, T125 1E4/5E4
Brand: BAOKEZHEN
SKU: 118128667

Negotiable MOQ: 20000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

BAOKEZHEN

Model Number:

SC787 electrical rocker switch

Shenzhen Baokezhen Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or other Guangdong port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name BAOKEZHEN

Model Number SC787 electrical rocker switch

Max. Current 16A

Max. Voltage 250VAC

Mechanical Life 5E4

Product Description

SC787 electrical double pole rocker switch, stirrer electrical rocker switch oven electrical rocker switch t125 electrical rocker switch

P/N	SC787 electrical rocker switch, double pole rocker switch
Current & Voltage	16(4)A 250VAC 1E4 T125/55 16A 250VAC
Life	1E4/5E4
Materials	Housing & Button-PA /PC Terminals-copper Alloy, Contacts-Ag / AgcdO
Contact gap	more than 3mm
Contact resistance	20 mΩ or less than 20 mΩ
Insulation resistance	more than 100 mΩ
High voltage resistance	1500VAC
Resistance to tracking	PTI 175
Protection type	IP20
Ambient temperature	0℃,+125℃
Flammability	UL94V-0
Heat and fire temperature	850℃
Approvals	UL & VDE
These switches are suitable for appliances of protection class II, such as oven, coffee machine, stirrer, power strip and so on. For more switches, pls refer to .
