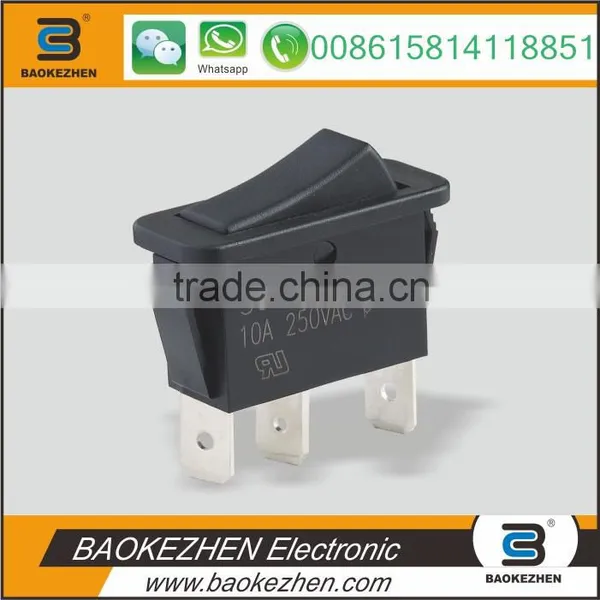

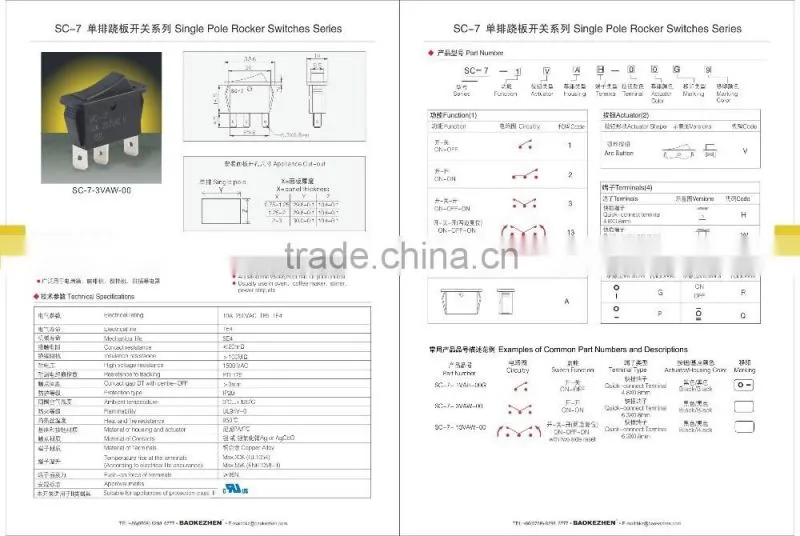

Help CenterSC-7 Single Pole Rocker Switch for Power Strip, 10A/250V, T85 1E4/5E4, UL Approved
Related Products
-
SC797 Double Pole Double Throw Rocker Switch for Coffee Machine and Coffee MakerNegotiableMOQ: 20000 Pieces -
A7 Double Pole Double Throw Rocker Switch for Oven and Stirrer, 16A/250V T125/55, 1E4/5E4NegotiableMOQ: 20000 Pieces
-
SC765 Single Pole Rocker Switch for Coffee Maker and Stirrer, T125/55, 1E4/5E4US$ 0.25 - 2MOQ: 20000 Pieces
-
R5 Mini Rocker Switch for Home Appliances, 10A/250V T85/55 5E4/8E4US$ 0.25 - 2MOQ: 20000 Pieces
-
K1 Blender Keyboard Switch With 7 Push Buttons Switch 1E4/5E4 6A 250VUS$ 1.10 - 1.10MOQ: 10000 Pieces
SC-7 power strip rocker switch, single pole, 10A/250V rocker switch, 1E4/5E4 rocker switch
P/N |
SC-7 power strip rocker switch, single pole |
Current & Voltage |
10A 250VAC 1E4 T85 |
Life |
1E4/5E4 |
Materials |
Housing & Button-PA /PC Terminals-copper Alloy, Contacts-Ag / AgcdO |
Contact gap |
more than 3mm |
Contact resistance |
20 mΩ or less than 20 mΩ
|
Insulation resistance |
more than 100 mΩ |
High voltage resistance |
1500VAC |
Resistance to tracking |
PTI 175 |
Protection type |
IP20 |
Ambient temperature |
0℃,+125℃ |
Flammability |
UL94V-0 |
Heat and fire temperature |
850℃ |
Approvals |
UL |
|
These switches are suitable for appliances of protection class II, such as oven, coffee machine, stirrer, power strip and so on. For more switches, pls refer to . | |
BAOKEZHEN was established and started to produce switches since 1987, with 18 years manufacturing experience, we have successfully extended our switch series, such as micro switch series, single pole rocker switch series, double pole rocker switch series, push button switch series, rotarry switch series, slide switch / toggle switch series, keyboard switch / piano switch series, and so on... Meanwhile, we also extended some new industries range, such as solenoid pumps, solenoid valve, PCB controller for appliances care. So far BAOKEZHEN yearly products capacity has been up to 100million pcs.
BAOKEZHEN has the 10 years experience in export and import, so the shipment by express courier / by air / by sea / truck or FCL / LCL can be easily treated.
