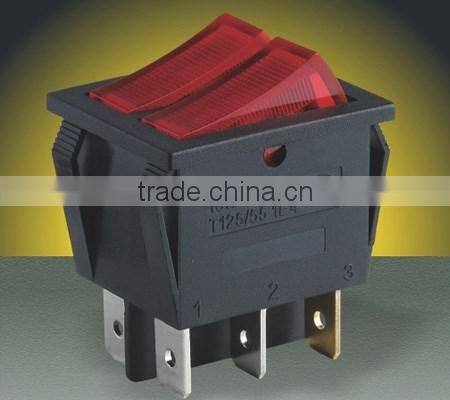

A7 double pole double throw rocker switch for stirrer and oven, 16A/250V T125/55 1E4/5E4
P/N |
A7 double pole double throw rocker switch |
Current & Voltage |
16(6)A 250VAC T125/55 1E4 |
Life |
1E4/5E4 |
Materials |
Housing & Button-PA /PC Terminals-copper Alloy, Contacts-Ag / AgcdO |
Contact gap |
more than 3mm |
Contact resistance |
20 mΩ or less than 20 mΩ
|
Insulation resistance |
more than 100 mΩ |
High voltage resistance |
1500VAC |
Resistance to tracking |
PTI 175 |
Protection type |
IP20 |
Ambient temperature |
0℃,+125℃ |
Flammability |
UL94V-0 |
Heat and fire temperature |
850℃ |
Approvals |
SEMKO |
|
These switches are suitable for appliances of protection class II, such as oven, coffee machine, stirrer, power strip and so on. For more switches, pls refer to . | |
BAOKEZHEN was established and started to produce switches since 1987, with 18 years manufacturing experience, we have successfully extended our switch series, such as micro switch series, single pole rocker switch series, double pole rocker switch series, push button switch series, rotarry switch series, slide switch / toggle switch series, keyboard switch / piano switch series, and so on... Meanwhile, we also extended some new industries range, such as solenoid pumps, solenoid valve, PCB controller for appliances care. So far BAOKEZHEN yearly products capacity has been up to 100million pcs.
BAOKEZHEN has the 10 years experience in export and import, so the shipment by express courier / by air / by sea / truck or FCL / LCL can be easily treated.
