Home > Electrical & Electronics > Switch > Push Button Switch > Domed Momentary Push Button Switch 25mm Stainless Steel

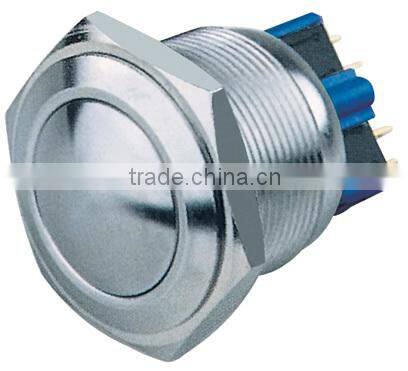

Domed Momentary Push Button Switch 25mm Stainless Steel
US$ 4.7 - 6.7
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BAOKEZHEN
Model Number:
NL25-Y-4C
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Illuminated Waterproof Push Button Switch L25(Dia.25mm) Engraved Power SymbolUS$ 5.1 - 7.1MOQ: 1 Piece -
Flat Round Vandalproof Push Button Switch 25mm Stainless SteelUS$ 4.7 - 6.7MOQ: 1 Piece
-
Flat Round Waterproof Push Button Switch 22mm Stainless SteelUS$ 3.8 - 5.8MOQ: 1 Piece
-
Flat Round Vandalproof Doorbell Push Button Switch L22(Dia.22mm) With Square SymbolUS$ 2.3 - 3.8MOQ: 1 Piece
-
High Actuator Security Vandalproof Push Button Switch L22(Dia.22mm)US$ 2.2 - 3.7MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
BAOKEZHEN
Model Number
NL25-Y-4C
Protection Level
IP67, IK10
Max. Current
5A
Max. Voltage
250V
Specifications
Operation type: Momentary/LatchingFront Shape: Domed
IP Degree: IP67, IK10

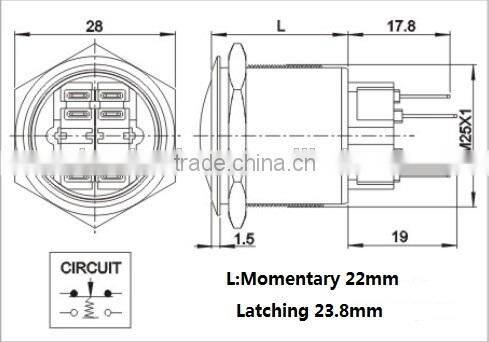

| Mounting hole: Φ25mm diameter |
| Operation type: Momentary/Latching |
| Contact Configuration:1NO 1NC/2NO 2NC |
| Front Shape: Domed |
| Terminal Type: Pin Terminals(2.8x0.5mm) |
| Max. Switch Rating: 5A/250V |
| Contact Resistance: ≤50mΩ |
| Insulation Resistance: ≥1000mΩ |
| Dielectric Strengh: 2000VAC |
| Operation Temp.: -20°c ~ +55°c |
| Mechanical Life: 500, 000cycles |
| Electrical Life: 50, 000cycles |
| Panel Thickness: 1~10mm |
| Torque: 5~14Nm |
| Operation Pressure: About 3~5N |
| Operation Travel: About 2.5mm |
| IP Degree: IP67, IK10 |
| Contact Material: Silver Alloy |
| Crust Material: Stainless Steel |
| Button Material: Stainless Steel |
| Body Material: Stainless Steel |
| Base Material: PA66 |
| LED Spec Type: Without Lamp |
We can especially make for you according to your requirement,including laser inscription,change installation dimensions,change appearance colors,change material and so on.If you have any question,pls feel free to tell me.We shall spare no efforts in endeavouring to be of service to you.Pls contact us for more information.
