Flat Round Vandalproof Doorbell Push Button Switch L22(Dia.22mm) With Square Symbol

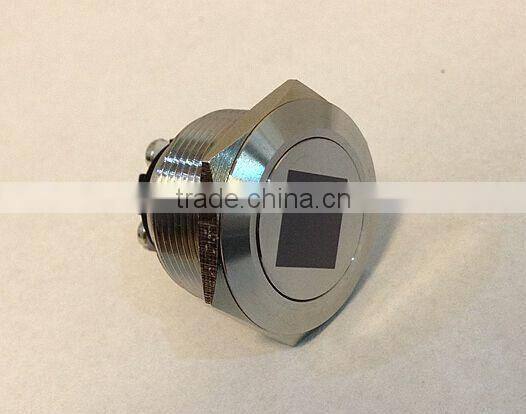

Flat Round Vandalproof Doorbell Push Button Switch L22(Dia.22mm) With Square Symbol photo-1
US$ 2.3 - 3.8 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BAOKEZHEN
Model Number:
NL22-1P-2J With Square Symbol
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name BAOKEZHEN
Model Number NL22-1P-2J With Square Symbol
Protection Level IP65, IK10
Max. Current 5A
Max. Voltage 250V

Specifications

Operation type: Momentary
IP Degree: IP65, IK10
LED spec.: Without Lamp&With Square Symbol

Flat Round Vandalproof Doorbell Push Button Switch L22(Dia.22mm) With Square Symbol



Mounting hole: Φ22mm diameter
Operation type: Momentary
Contact Configuration:1NO
Front shape: Flat Round
Terminal Type: Screw Terminals
Max.Switch Rating: 5A/250V
Contact Resistance: 50mΩ
Insulation Resistance: 1000MΩ
Dielectric Strength: 2000VAC
Operation Temp: -20°c ~ +55°c
Mechanical Life: 500,000cycles
Electrical Life: 50,000cycles
Panel Thichness:1~10mm
Torque: 5~14Nm
Operation Pressure: About 4N
Operation Travel: About 1.8mm
IP Degree: IP65, IK10
Contact Material: Silver Alloy
Crust Material: Stainless Steel
Button Material: Stainless Steel
Body Material: Stainless Steel
Base Material: PA66
LED Spec Type: Without Lamp&With Square Symbol



We can especially make for you according to your requirement,including laser inscription,change installation dimensions,change appearance colors,change material and so on.If you have any question,pls feel free to tell me.We shall spare no efforts in endeavouring to be of service to you.Pls contact us for more information.
