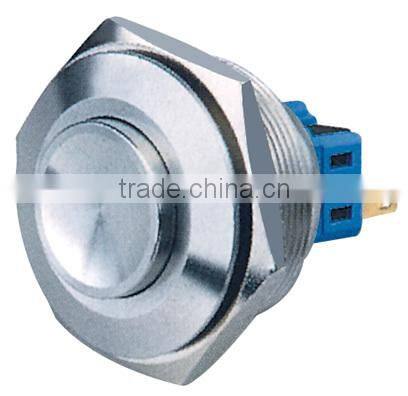

High Round Momentary Anti-vandal Metal Push Button Switch 30mm Waterproof
US$ 5.5 - 7.5
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BAOKEZHEN
Model Number:
NL30-G-4C
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Flat Round Anti-vandal Metal Push Button Switch 28mm WaterproofUS$ 5.1 - 7.1MOQ: 1 Piece -
High Round Push Button Switch 28mm Stainless SteelUS$ 5.1 - 7.1MOQ: 1 Piece
-
Ring Illuminated Waterproof Push Button Switch L25(Dia.25mm) With Black Aluminum BodyUS$ 5.1 - 7.1MOQ: 1 Piece
-
High Round Push Button Switch 25mm Stainless SteelUS$ 4.7 - 6.7MOQ: 1 Piece
-
Domed Momentary Push Button Switch 25mm Stainless SteelUS$ 4.7 - 6.7MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
BAOKEZHEN
Model Number
NL30-G-4C
Protection Level
IP67, IK10
Max. Current
5A
Max. Voltage
250V
Specifications
Operation type: Momentary/LatchingFront Shape: High Round
IP Degree: IP67, IK10
| Mounting hole: Φ30mm diameter |
| Operation type: Momentary/Latching |
| Contact Configuration:1NO 1NC/2NO 2NC |
| Front Shape: High Round |
| Terminal Type: Pin Terminals(2.8x0.5mm) |
| Max. Switch Rating: 5A/250V |
| Contact Resistance: ≤50mΩ |
| Insulation Resistance: ≥1000mΩ |
| Dielectric Strengh: 2000VAC |
| Operation Temp.: -20°c ~ +55°c |
| Mechanical Life: 500, 000cycles |
| Electrical Life: 50, 000cycles |
| Panel Thickness: 1~10mm |
| Torque: 5~14Nm |
| Operation Pressure: About 3~5N |
| Operation Travel: About 2.5mm |
| IP Degree: IP67, IK10 |
| Contact Material: Silver Alloy |
| Crust Material: Stainless Steel |
| Button Material: Stainless Steel |
| Body Material: Stainless Steel |
| Base Material: PA66 |
| LED Spec Type: Without Lamp |
We can especially make for you according to your requirement,including laser inscription,change installation dimensions,change appearance colors,change material and so on.If you have any question,pls feel free to tell me.We shall spare no efforts in endeavouring to be of service to you.Pls contact us for more information.
