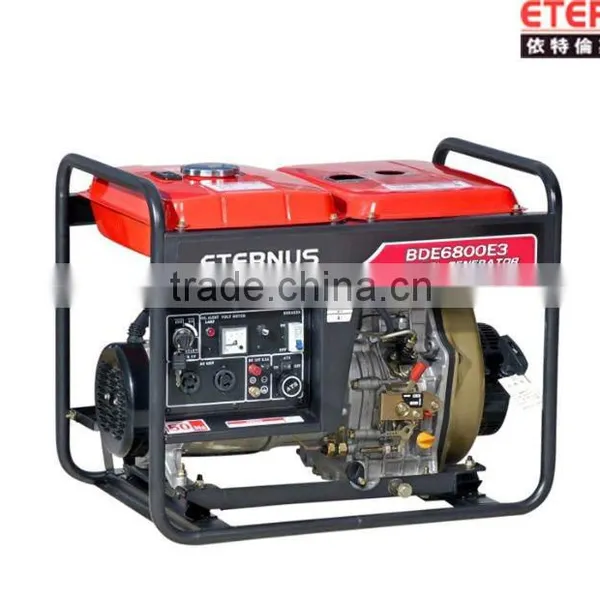

Diesel Generator Set 5.0kVA Open Frame Type BDE6800X3/E3

Name: Diesel Generator Set 5.0kVA Open Frame Type BDE6800X3/E3
Brand: ETERNUS
SKU: 118122155

Negotiable MOQ: 5 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ETERNUS

Model Number:

BDE6800X3/E3

Jiangmen Baodeli Mechanical Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Jiangmen port (Waihai & Gaosha port) near Guangzhou & Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ETERNUS

Model Number BDE6800X3/E3

Output Type AC Three Phase

Speed 3000r/min \ 3600r/min

Frequency 50Hz/ 60Hz

Rated Power 5.0kVA

Rated Voltage 230V/400V , 240V/410V

Rated Current 8.1A / 9.0A

Specifications

Diesel generator set
1)High performance
2)Powerful output
3)Economical
4)Easy maintenance

diesel generator set Model	BDE6800X3/E3/T3
Generator
Rated output power (kVA)	5.5	6.3
Rated frequency (Hz)	50	60
Rated voltage (V)	230/400	240/410
Rated current (A)	8.1	9.0
DC output	12V/8.3V
Power factor (cosΦ)	0.8
Phase	Three
Coupling mode	Direct coupled to the engine
Noise level [ dB (A)@7m]	X/E: 75 , T: 69
Fuel capacity (L)	X/E: 12.5 , T:15
Fuel	0 # (summer),-10# (winter) light diesel oil
Lube	SAE10W30(above CC grade)
Low oil pressure alert system	Yes
Engine
Model	BD186FAG
Type	1 cylinder ,4-stroke ,air-cooled, direct injection, diesel engine
Rated rotation speed(r/min)	3000	3600
Rated power [kW (HP) /rpm]	5.9 (8.02)	6.5 (8.85)
Displacement [ml (cu.in)]	418 (25.51)
Compression ratio	19:1
Structure
Structure type	X/E:Open-frame type , T: Silent type
Dimension(L x W x H) mm	X/E:740x500x660 T:965x570x750
Starting system	X:Recoil E/T: Electric
Rotation direction (view from fly wheel)	Clockwise
Net weight (kg)	X/E:98 T:165
