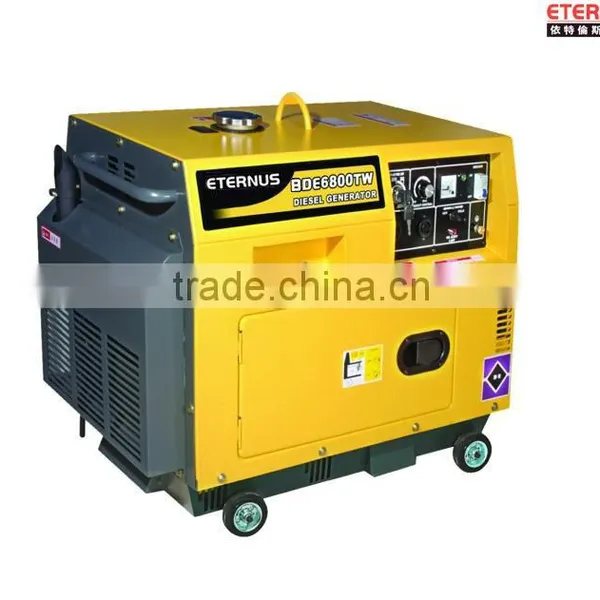

Diesel Welding Generator Silent Type BDE6800TW

Name: Diesel Welding Generator Silent Type BDE6800TW
Brand: ETERNUS
SKU: 118122207

Negotiable MOQ: 5 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ETERNUS

Model Number:

BDE6800TW

Jiangmen Baodeli Mechanical Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Jiangmen port ( Waihai & Gaosha port) near Guangzhou & Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ETERNUS

Model Number BDE6800TW

Output Type AC Single Phase

Speed 3000

Frequency 50Hz / 60Hz

Rated Power 2.7kVA

Rated Voltage 240V

Rated Current 11.25

Specifications

Be your nice engineer construction assistant.
Diesel welding generator.

1)One machine dual purpose,small and exquisite portable
2)Be suitable to open country project and municipal construcion

diesel welding generator Model	BDE6800EW	BDE6800TW
Generator
Rated output power (kVA)	2.5		2.5
Rated frequency (Hz)	50		50
Rated voltage (V)	230		230
Rated current (A)	10.9		10.9
Rated welding DC current (A)	50-180
Rated welding work voltage (V)	65
Welding load continuous ratio	50%
Current regulation range (A)	50-180
Power factor (cosΦ)	1.0
Phase	Single
Excitation mode	Self-excitation and constant voltage (AVR)
Fuel capacity (L)	12.5		15
Fuel	0 # (summer),-10# (winter) light diesel oil
Lube	SAE10W30(above CC grade)
Low oil pressure alert system	Yes
Engine
Model	BD186FAGE
Type	1 cylinder ,4-stroke ,air-cooled, direct injection, diesel engine
Rated rotation speed(r/min)	3000		3000
Rated power [kW/rpm]	6.0		6.0
Displacement [ml (cu.in)]	418 (25.51)
Compression ratio	19:1
Structure
Structure type	X/E:Open-frame type , T: Silent type
Dimension(L x W x H) mm	X/E:740x500x660 T:965x570x750
Starting system	X:Recoil E/T: Electric
Net weight (kg)	E:106 , T:173
