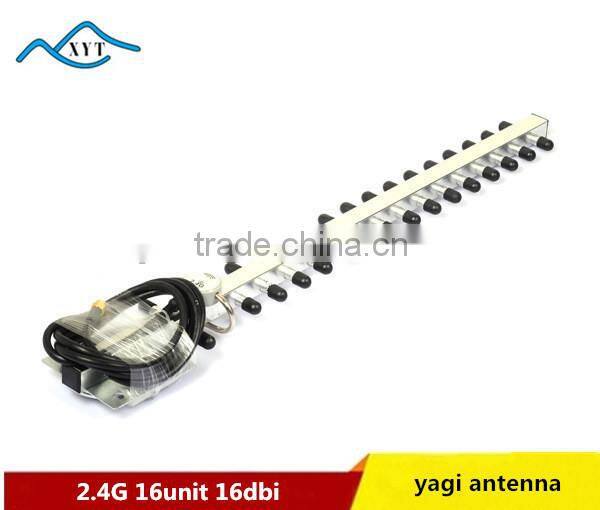

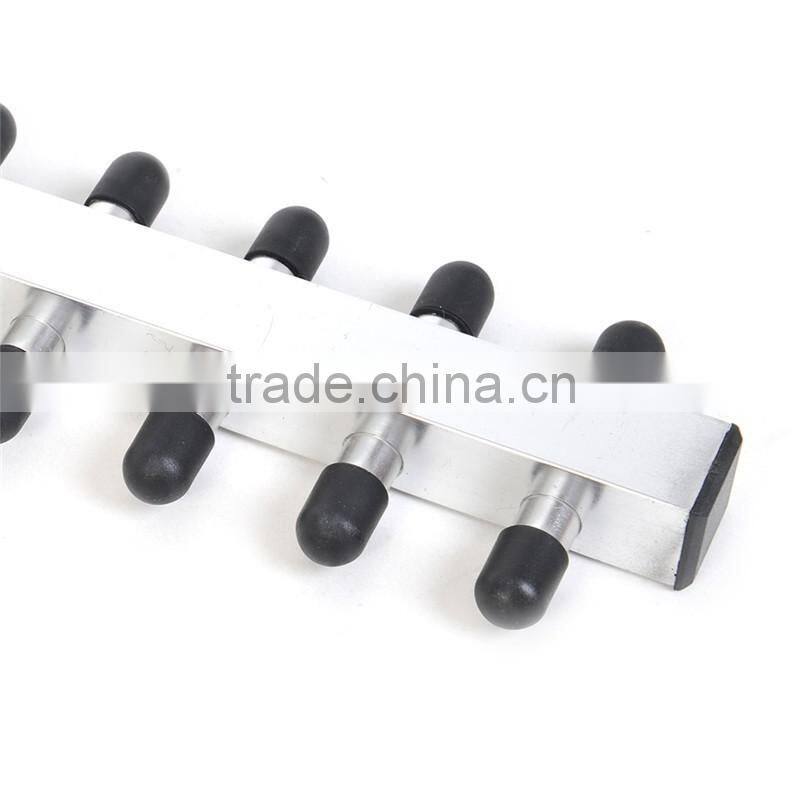

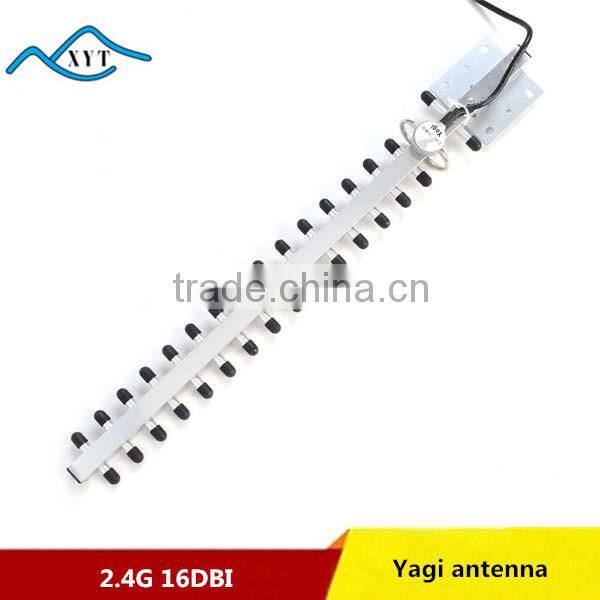

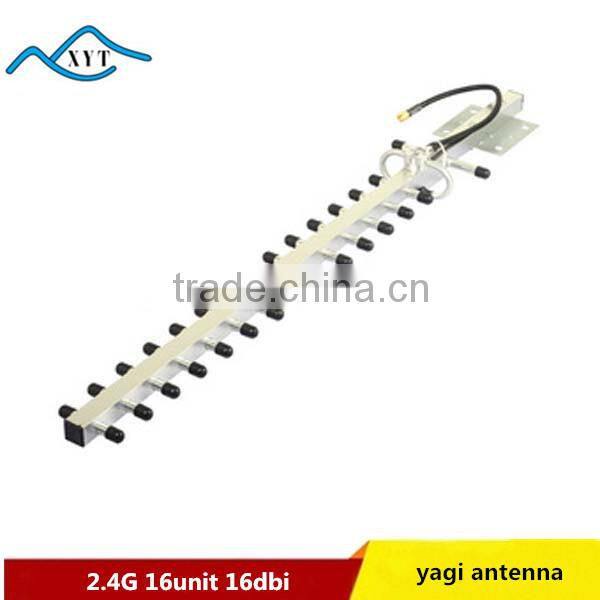

long range wireless 2.4g yagi antenna outdoor for wifi/wlan signal booster
ELECTRICAL | |
Frequency Range |
2400-2500MHz |
Bandwidth |
100-MHz |
Gain |
16-dBi |
Beamwidth |
H:29 E:25 |
F/B ratio |
≥14-dB |
VSWR |
≤1.5 |
Polarization |
Horizontal or Vertical |
Max power |
100 -W |
Nominal Impedance |
50 -Ω |
MECHANICAL | |

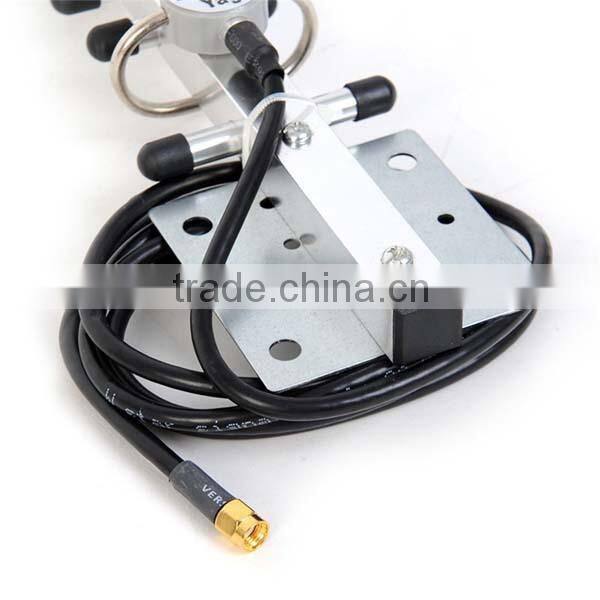

Connector |
N female /SMA male or customized |
Antenna Dimension |
0.6M |
Weight |
0.8-Kg |
Rated Wind Velocity |
60-m/s |
Mounting Mast Diameter |
≤49mm |
More Antenna:
Production Equipment:
About Us:
Shipping:
Trade Terms
1. Payment: T/T , 30% deposits before production, 70% balance to be paid before delivery.
2. Production lead time:5~ 7days against the deposit received.
3. Sample can be delivered in 3-5 days.
4. Shipping freight are quoted under your requests.
5. Shipping port: Shenzhen.
6. Discounts are offered based on order quantities.
7.MOQ:1PCS.
Our Service
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.OEM&ODM, any your customized Antenna we can help you to design and put into product.
4.Offered for your unique design and some our current models.
5.Protection of your sales area,ideas of design and all your private information.
If you need more detail information about us,pls send the enquiry to us now.thanks!
