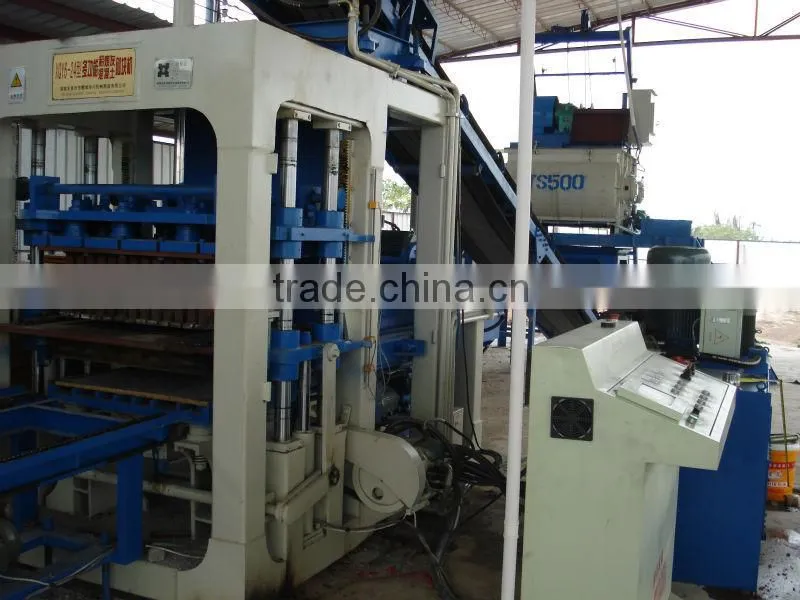

Help CenterXQY6-24 Hollow Concrete Brick Making Machine
Related Products
Hydraulic Press, vibration
CE certificate
After sales service
|
Per mold |
Per day |
Solid Block(240*115*53mm) |
42pcs |
75600pcs |
Eight-hole Block(240*115*90mm) |
21pcs |
37800pcs |
Hollow Block(390*190*190mm) |
8pcs |
14400pcs |
3:Technology Parameter:
Main Machine Overall size (L×M×H mm): 6900×2000×2900
Pallet Size (L×M×H mm): 970×850×25
Molding Periodicity (differs from the different products):15-30 seconds
Machine Power:38KW Machine Weight: 10 t
Molding bricks quantity: Standard block 42pcs/per mold
Eight-hole block 21pcs/per mold
Hollow block 8pcs/per mold
4:Technology Description
1). Due to reasonable structure, it is very convenient for exchanging the cutter, operating and maintaining. The equipment is tight-fixed with stable and reliable quality. Perfect designing, such as, adopting the auto pallets feeding system, material conveying and laying out system, compulsive material disposing system and pressing and molding synchronously, has made the production recycling automatically with high production output and stable quality. Auto stacking system will enable the equipment to play higher efficiency.
2). Machine, electricity, hydraulic are all combined together and controlled by PLC with the optional locking password to protect the running with safety. Main control table is with computerized operation screener (Chinese / English menu, LCD touching screen), which can materialize the parameter setting, single collecting along with the machine and breakdown analyzing, thus the machine can keep in the best working status. By long-distance monitoring, breakdown seeking and system updating.
3). Being vibrated by the hydraulic-pressure motor, this machine lays the material fast by two manipulators controlled by oil cylinder, which has raised up the vibration and the vibration efficiency. The material is laid evenly while being molded in a short time. The compressing and vibration are organic combined to guarantee the density of the products.
4). It is widely used, which can produce standard block, hollow block, light-weight block, road surface paver and so on, more specially for volume producing the standard block and the hollow block.
