Specifications
1, we are the cement block making machine manufacturer2,1 Year Warranty
3, CE
4, brick, paver, hollow brick

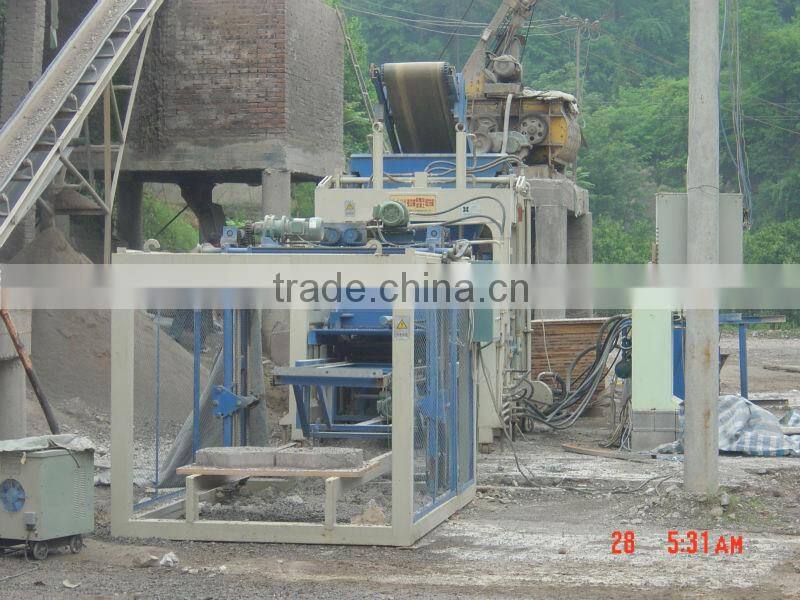

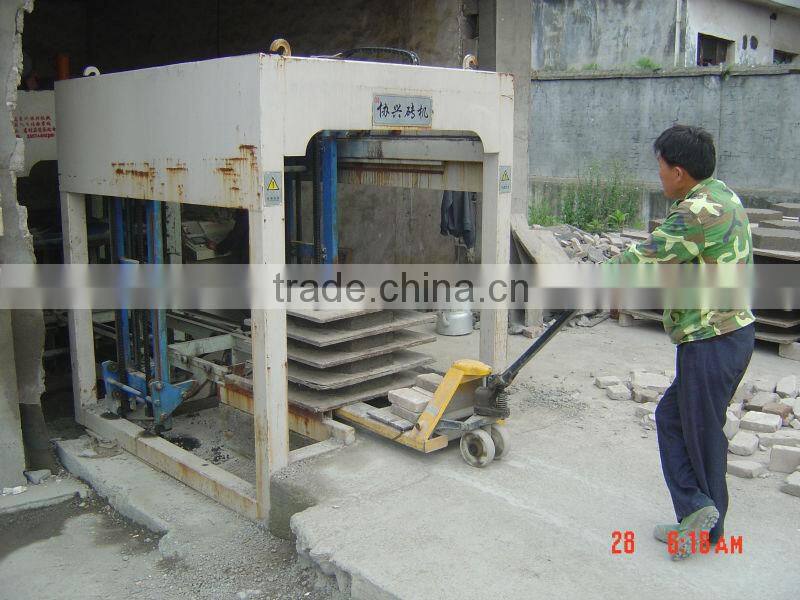

Cement block making machine very popular in africa
[Technology Description
1‚Based on applyoing the features from the overseas superior manufacyer in the same line,the perfect designing in structes facilites the cutter to be exchanged ,let alone the operating maintaing. the equipment is tight-fixed and durable with high automation,low even consumption and competitive price based on the quality.
2‚Perfect designing,such as,adopting the auto pallets feeding system,compuslve matrial disposing system and synchronously pressing and molding system,has made the production recycling automatically with high production output and stable quality. Auto stacking system will enable the enquipment toplay higer efficiency.
3‚Machine, electricly hydraulic are all combined togeher and controlled by PLC with the optional locking password to protect the running with safety .Main control table is with computerized operation screener (Chinese menu,LCD touching screener),which can materiallize the parameter setting single collecting along with machine and breakdown analying ,thus the machine can keep in the best working status.By long-distance communication can materialize the long-distance montoring,breakdowm seeking and system updating.
4‚Being vibrated the hydralic-pressure motor,the vibation efficiency is high. The unique vibration decive is the form of linkage incorporate viibration table,which materializes to minimize the gap between all the vibration point in even,thus future guarantee the density of the final products.The compressing and xibration are orfance combined to guarantee the density of the prouucts.
5‚It is adoping advanced technology to lay the material;when the material laying device reaches to the upper on the mold, the material inside the device will fast and evenly pour into the mold. The material is laidmevenly while being molded in a short time.The weight tolerance between each finished product is ±5%.,while the intensity tolerance is ±15%.

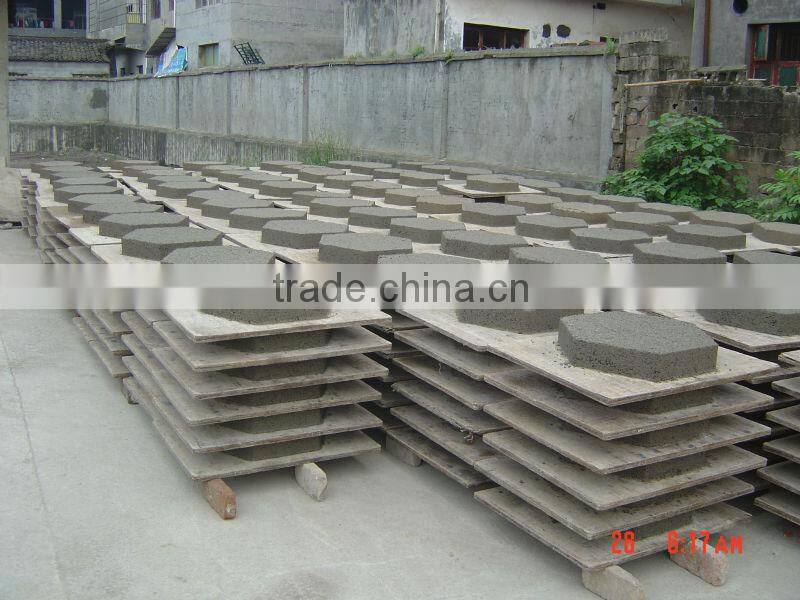

6‚It is widely used ,which can produce standard block, hollow block,light block,road surface block and so on,morespecially for volume producing the stangard block and the hollow block.
| Technology Parameter | |
| Main Machine Overall size(L×W×Hmm) | 6900×2250×2950mm |
| Pallet Size(L×W×Hmm) | 1200× 850×25mm |
| Molding Periodicity(differs from the different product) | 15~30seconds |
| Machine Power | 41kw |
| Machine Weight | ~12t |
| Molding brick quality |
Standerd block 54pcs/mold Eight-hole block 27pcs/mold Hollow block 10pcs / |
