Home > Products > Brick Making Machine > XQY4-26 concrete hollow brick machine
XQY4-26 concrete hollow brick machine
- 10 Set / Sets per Month
- xiamen
- T/T
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Concrete |
Processing: | Brick Production Line | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 46800pcs/8hours | Place of Origin: | Fujian, China | Brand Name: | XIEXING |
Model Number: | XQY4-26 | Voltage: | according to client demand | Power: | 24kw |
Dimension(L*W*H): | 5900*4600*2.65 | Certification: | CE | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
standard packing for XQY4-26 concrete hollow brick machine
Product Description

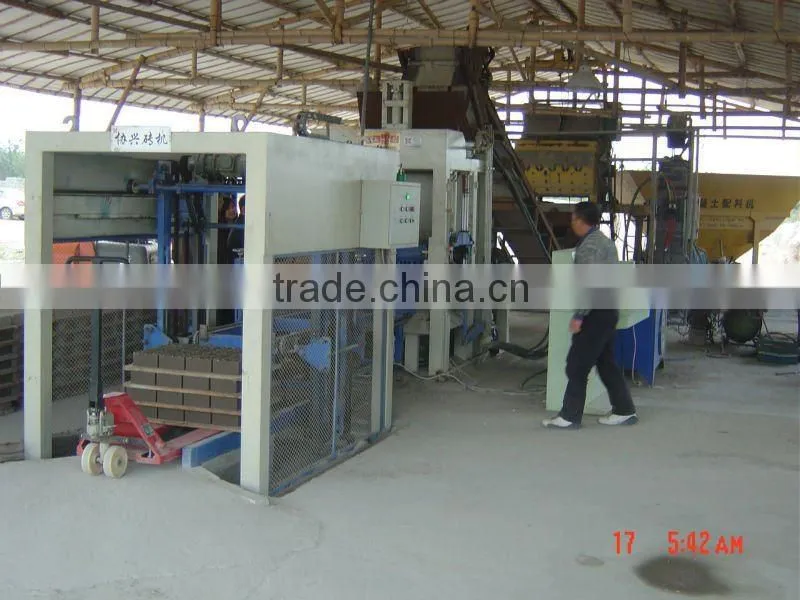

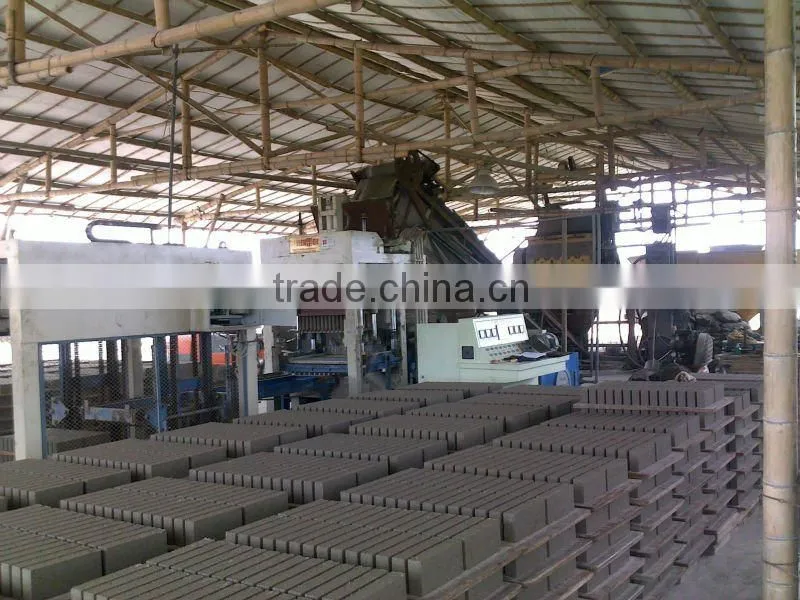

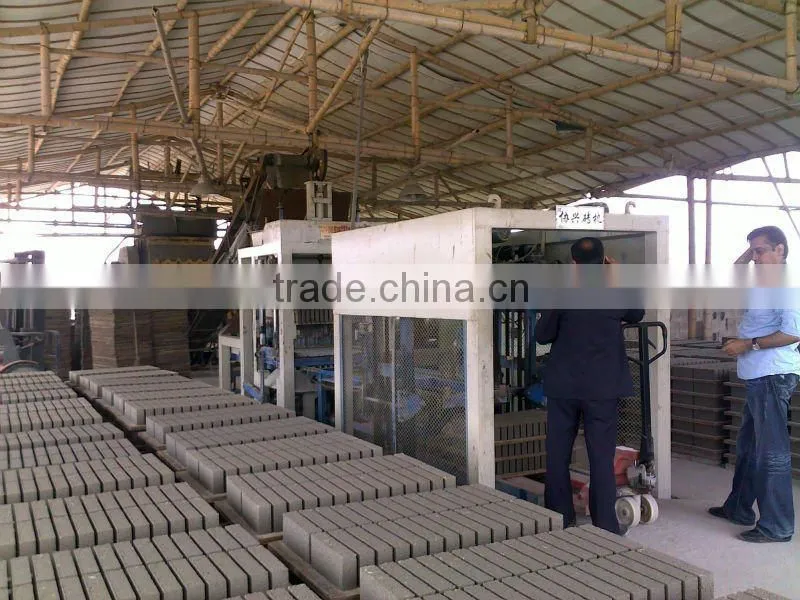

XQY4-26 concrete hollow brick machine
Technology Description
1, Tight-fixed in designing,stable in function,convenient in maintaining,high in automation,high output in making blocks,fewer in occupying the space and competitive in price based on quality;on this machine,automatically feeding block,feeding material and material arranging is the base for high production efficiency and stable quality.
2, Machine,electricity,hydraulic are all combined together and controlled by PLC with the optional locking password to protect the running with safety.Main control table is with computerized operation screener(Chinese/English menu,LCD touching screener),which can materialize the parameter setting,single collecting along with the machine and breakdown analyzing,thus the machine can keep in the best working status.By long-distance communication can materialize the long-distance monitoring,breakdown seeking and system updating.
3, Vibration system is perfect in designing and high in efficiency.Compressing and vibration are combined to guarantee the density of the products.
4, Horizontal and vertical structure is optional for customers to choose.Horizontal structure is facilitating to feed the surface material,which can produce the colorful road surface blocks;while vertical structure can save the pallets conveying time,which fast the block feeding.
This machine is wildly used,which can produce standard block,hollow block,road surface block and so on.
Technology Parameter | |
Main Machine Overall size(L×W×Hmm) | 5900×4600×2650mm |
Pallet Size(L×W×Hmm) | 850× 535× 20mm |
Molding Periodicity(differs from the different product) | 15~30seconds |
Machine Power | 24kw |
Machine Weight | ~6t |
Molding brick quality | Standerd block 26pcs/mold Eight-hole block 12pcs/mold Hollow block 4pcs |
Company Profile
Quanzhou Xiexing Machinery Making Industry Co., Ltd. comes from China, is a specialized company, which has been in the cement products machinery industry for over ten years. Our main products are brick machines, block machines, concrete block machines, cement block machines, hollow block machines, non-burn block machines, color block machines, hydraulic block machines, pressing machines, block moulds and other more.
Xiexing judges each procedure of the work by taking the market as guideline and the actual requirements as standard goal. Now, our company has already set up a more complete system in innovation, manufacturing, quality controlling and after-sales service. Scientific design, advanced product technology, complete production equipment, experienced working craftwork, strict inspection as well as the specialized group have resulted in excellent and superior products in Xiexing. Our good service support has eliminated the worry of customers.
Xiexing seeks for superiority and perfection. For this goal, everybody in Xiexing is working hard!! Our hearted spirit is "Sincere collaboration, going prosperous with you"!!
