XIEXING Hydraulic Brick Machine with Mitsubishi PLC
1.Automatic Brick Machine
2.Hydraulic pressure
3.PLC control
4.CE,BV,SGS

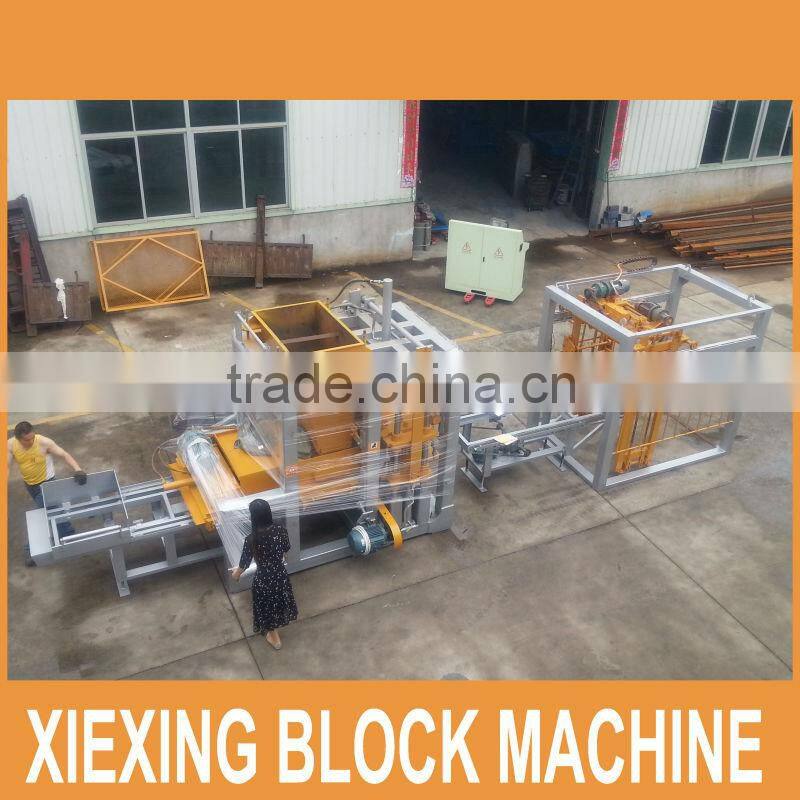

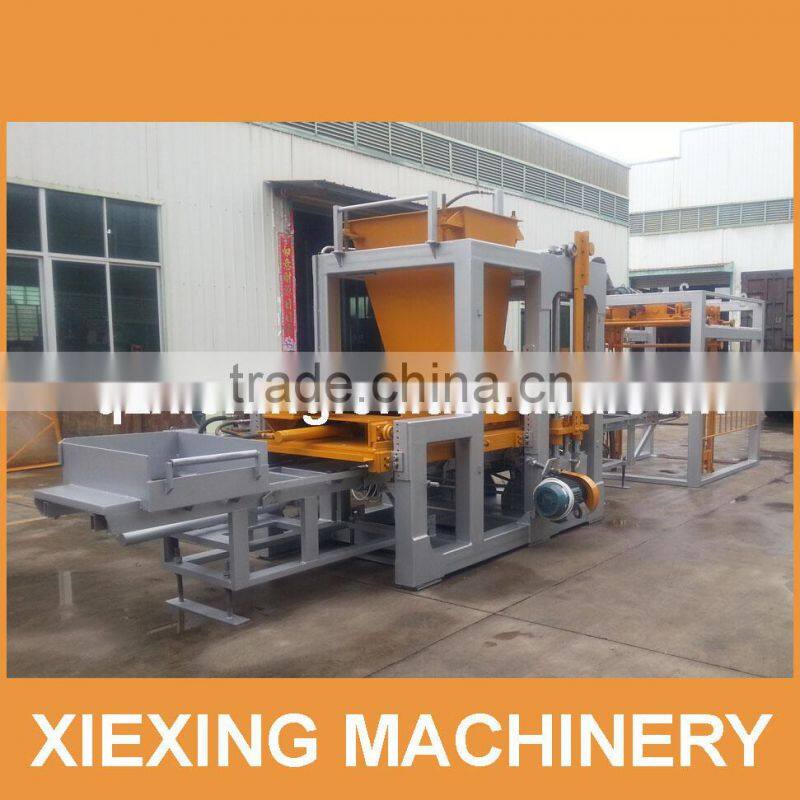

XIEXING QT12-15 Hydraulic Brick Machine with Mitsubishi PLC
1. Perfect designing for hydraulic brick machine, adopting the auto pallets feeding system, material conveying and laying out system, compulsive material disposing system and synchronously pressing and molding system, has made the production recycling automatically with high production output and stable quality. Auto stacking system will enable the equipment to play higher efficiency.
2.Technology Parameter of hydraulic brick machine:
|
Main Machine Overall size (L×M×H mm): |
11800*2250*3200mm |
| Pallet Size (L×M×H mm): |
1350*850*25mm |
| Molding Periodicity (differs from the different blocks): | 15-20 seconds |
| Machine Power: | 58KW |
| Machine weight: | 14,000KGS |
| Vibration Force | 110KN |
| Rated Pressure: | 21MPA |

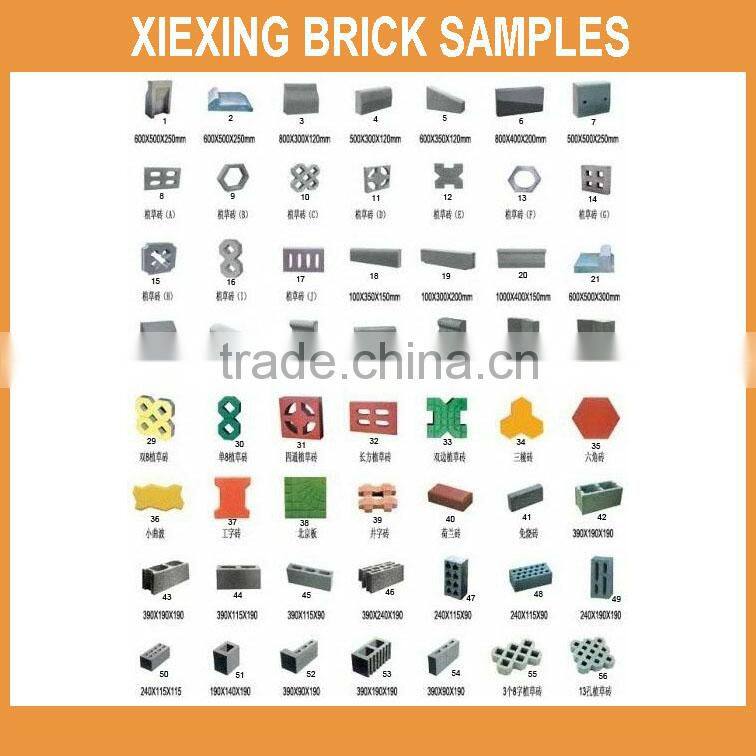

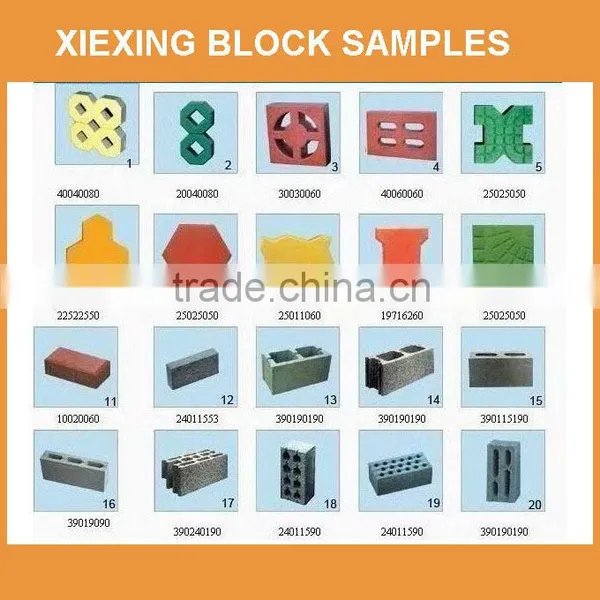

3. Capacity of hydraulic brick machine:
|
Per mold |
Per day |
230*110*75mm |
35pcs |
63000pcs |
Solid Block(240*115*53mm) |
60pcs |
108000pcs |
Eight-holes Block(240*115*90mm) |
30pcs |
54000pcs |
Tiles (400*400mm) |
6pcs |
10800pcs |
Curb stone(400*200*200mm) |
12pcs |
21600pcs |

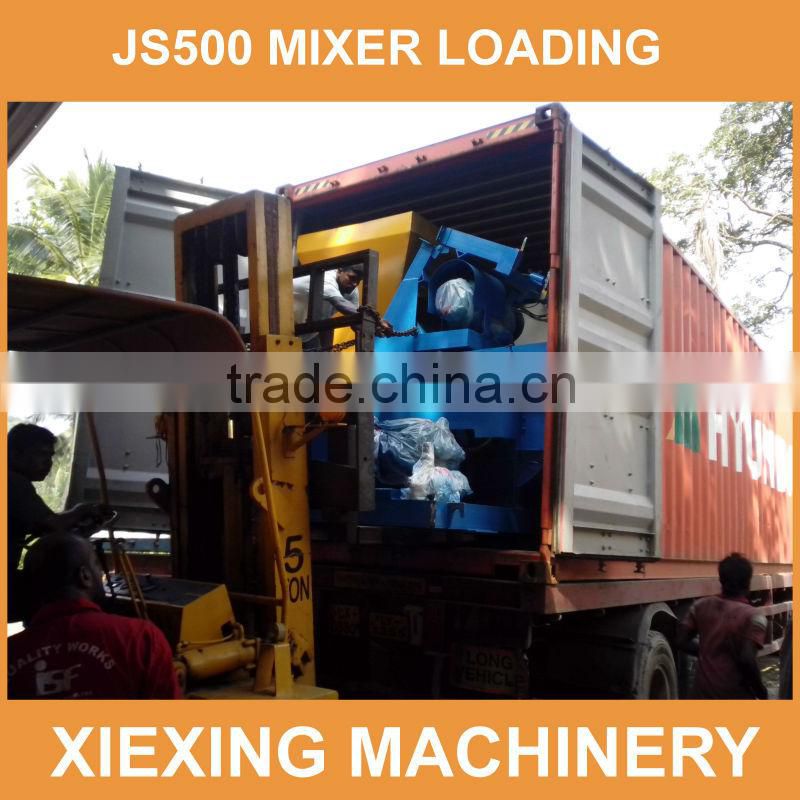

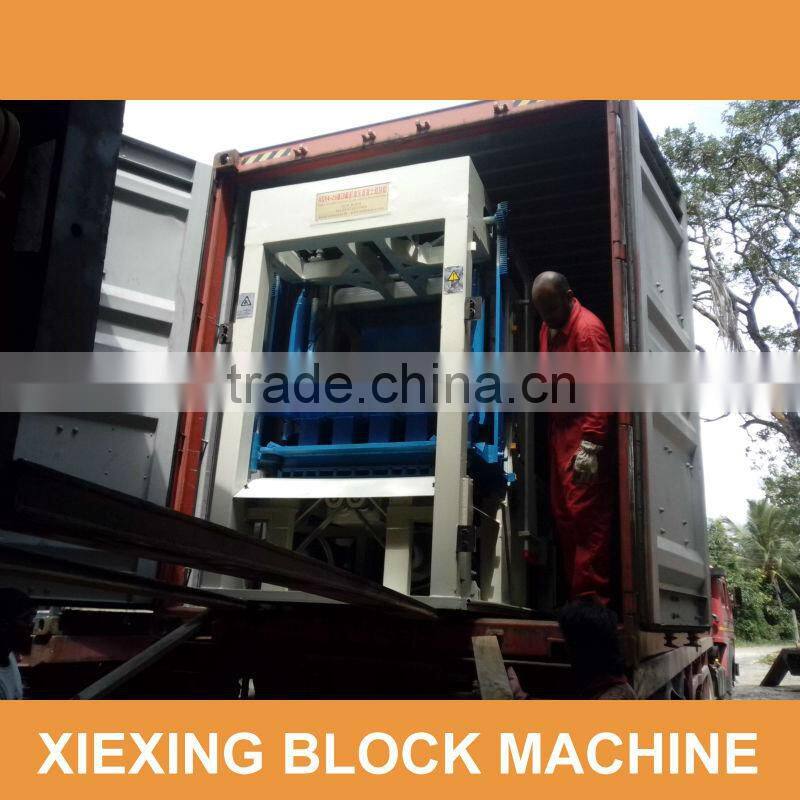

4. Packaging of hydraulic brick machine:
5. We manufacturer of concrete equipments, brick machine, block machine, and other concrete machines. been in this line for more than 10 years.
We pleasure to grown up with our sincerity customers!
6. Our certificates for hydraulic brick machine:
7. Our customer for hydraulic brick machine in the world:

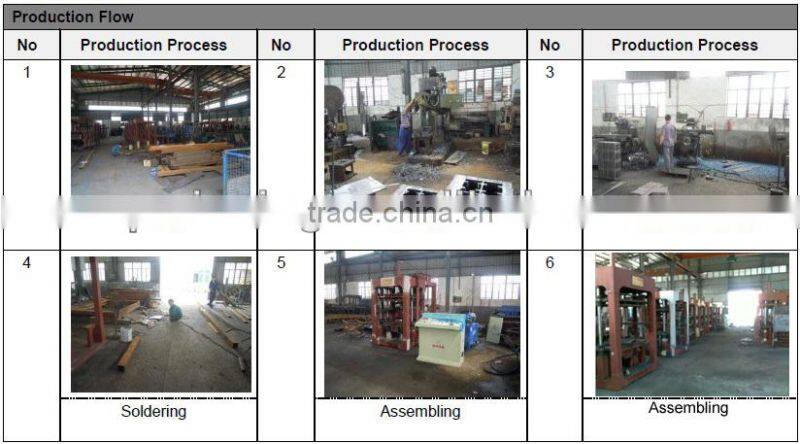

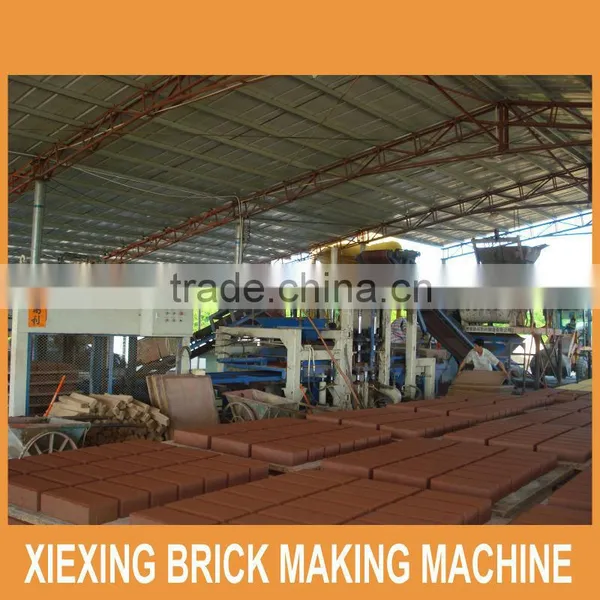

8. Our Factory workshop for hydraulic brick machine:
9. Contact us:
