Specifications
1. semi-automatic small block making machine2.high quanlity
3.simple structure
4.multifunctional

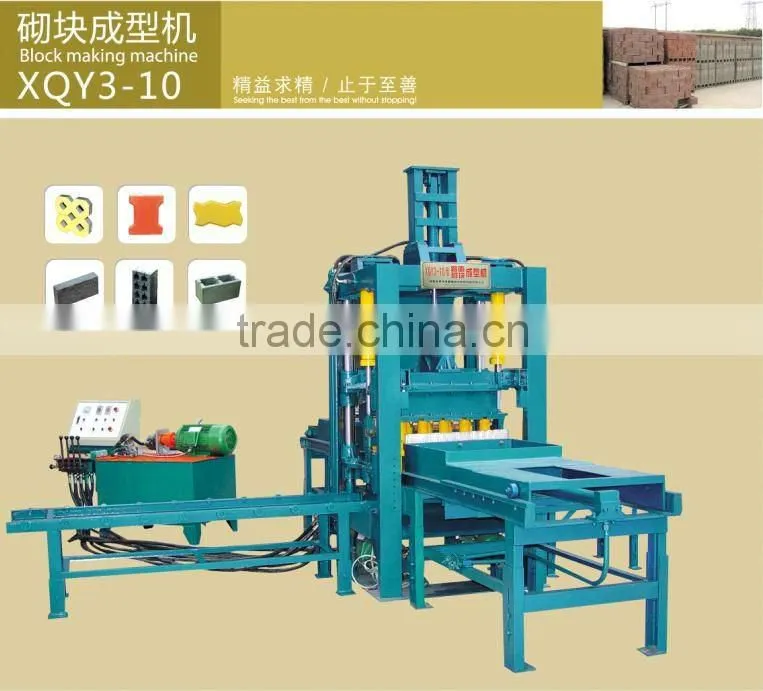

High quality small block making machine XQY3-10 for sale
Technology Parameter
- Main Machine Overall size(L×W×H mm): 3500×1000×2480
- Pallet Size ( L×W×H mm):680×535×20
- Molding Periodicity (differs from the different products):15-30 seconds
- Machine Power:16KW
- Machine Weight: ~4t
- Molding bricks quantity:Standard block 20pcs/per mold
Eight-hole block 8pcs/per mold
Hollow block 3pcs/per mold
Reference Capacity List of Machines
| Machine Models | XQY3-10 | |
| 400x200x200mm | Per Stroke | 3 blocks |
| Per Day(8hrs) | 3600 | |
| 400x200x150mm | Per Stroke | 4 blocks |
| Per Day(8hrs) | 4800 | |
| 400x200x100mm | Per Stroke | 5 blocks |
| Per Day(8hrs) | 6000 | |
| 240x115x53mm | Per Stroke | 20 pcs |
| Per Day(8hrs) | 24000 | |
| 200x100x60/80mm Paver |
Per Stroke | 12 pcs |
| Per Day(8hrs) | 11520~14400 | |
| 230x115x60/80mm Paver |
Per Stroke | 10 pcs |
| Per Day(8hrs) | 9600~12000 | |
Our certificates for hydraulic brick making machines:
Our customers for hydraulic brick making machine in the world:
the Technology Description of semi-automatic cement block making machine
a, Simple structure;small occupying area;stable and reliable function and convenient maintaining;Simple manual operation enables the workers to learn fast;This machine combines many functions into one with low consumption.
b, It is adopting with multi-valves in series,electricity discharging unit and compressing and vibrating organic combing unit to materialize the highest molding and density of the finished products.
c, Auto pallets conveying,pallets feeding and compulsive materials arranging have highly raised up the production efficiency and reduced the working intensity,while simple pallet conveying and feeding units can be installed for production.
d. This machine is combining multi functions into one with material feeding in twice times;Standard block,hollow block,road surface block(including colored block),small pathway block can be all materialized by this machine,which is wildly used
Welcome to visit our factory and contact me at any time!!!
Contact: Mr. Fosea
Tel/Fax: +86-0595-22472787
Cell phone: +15345976042
Skype: fosea.lin
trademanage: cn1501429029
QQ: 799412806
Send Inquiry to This Supplier
