Specifications
Block making machine QT4-15Controlled by PLC
Perfect in designing and high in efficiency

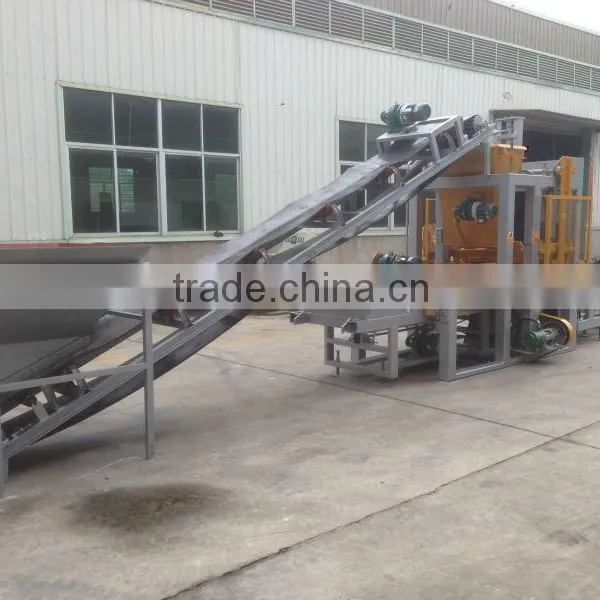

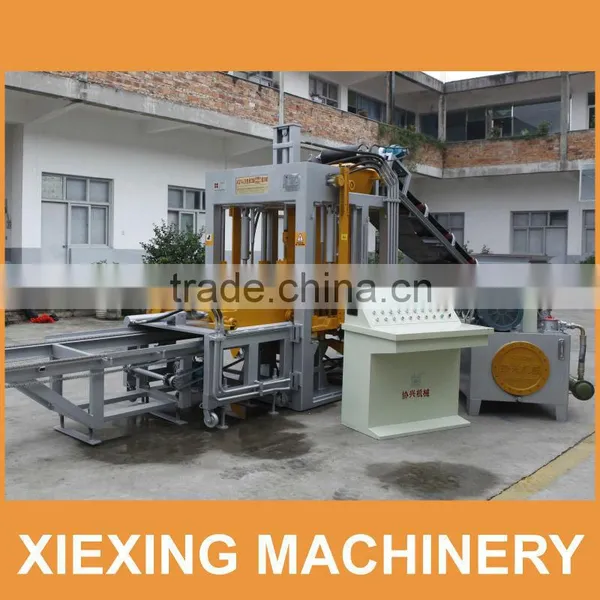

Block Making Machine QT4-15
Technology Parameter
Main Machine Overall size (L×M×H mm): 5900×4600×2650
Pallet Size L×M×H mm): 850×535×20
Molding Periodicity (differs from the different products) :15-30 seconds
Machine Power:24KW Machine Weight: 6 t
Molding bricks quantity: Standard block 26pcs/ mold
Eight-hole block 12pcs/ mold
Hollow block 4pcs/ mold
Technology Description
1.Tight-fixed in designing, stable in function, convenient in maintaining, high in automation, high output in making blocks, fewer in occupying the space and competitive in price based on quality; on this machine, automatically feeding block, feeding material and material arranging is the base for high production efficiency and stable quality.

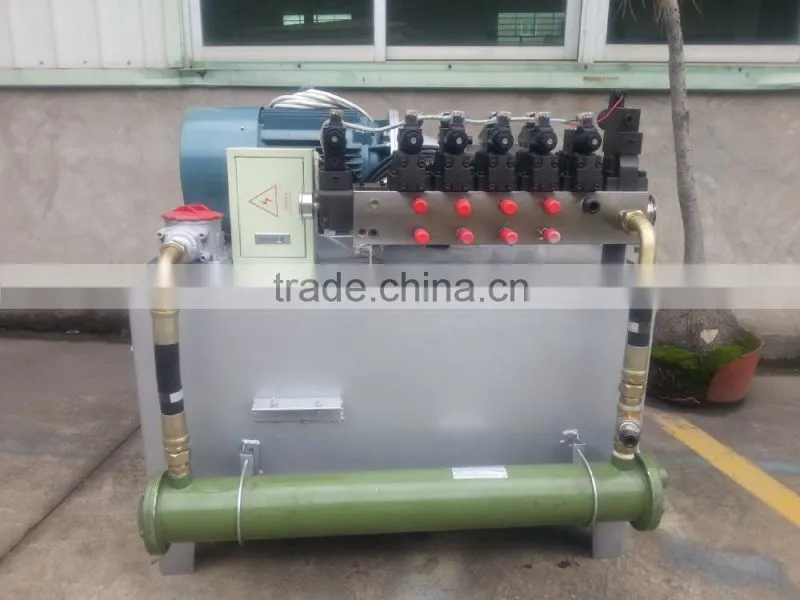

2.Machine, electricity, hydraulic are all combined together and controlled by PLC with the optional locking password to protect the running with safety. Main control table is with computerized operation screener(Chinese / English menu, LCD touching screen), which can materialize the parameter setting, single collecting along with the machine and breakdown analyzing, thus the machine can keep in the best working status. By long-distance communication can materialize the long-distance monitoring, breakdown seeking and system updating.
3.Vibration system is perfect in designing and high in efficiency. Compressing and vibration are combined to guarantee the density of the products.
4.Horizontal and vertical structure is optional for customers to choose. Horizontal structure is facilitating to feed the surface material, which can produce the colorful road surface blocks; while vertical structure can save the pallets conveying time, which fast the block feeding.
5This machine is widely used, which can produce standard block, hollow block, road surface pavers and so on.
