Help CenterXQY QT8-15 Concrete Block Making Machine Price for Sale
Related Products
-
XQY12-60 Automatic Brick Making MachineUS$ 10,000 - 100,000MOQ: 1 Set -
XQY10-50 Automatiac Brick Making MachineUS$ 10,000 - 100,000MOQ: 1 Set
-
XQY8-40 Automatic Block Making MachineUS$ 10,000 - 100,000MOQ: 1 Set
-
XQY6-24 Automatic Block Making MachineUS$ 10,000 - 100,000MOQ: 1 Set
-
XQY4-26 Automatic Block Making MachineUS$ 10,000 - 100,000MOQ: 1 Set
Specifications
1.perfect design2.resonable price
3.full automatic
4.PCL control
5.full automatic concrete block making machine
product description
1.perfect design
2.resonable price
3.full automatic
4.PCL control
5.high quality

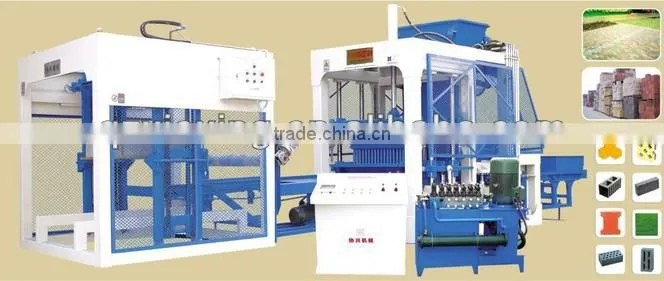

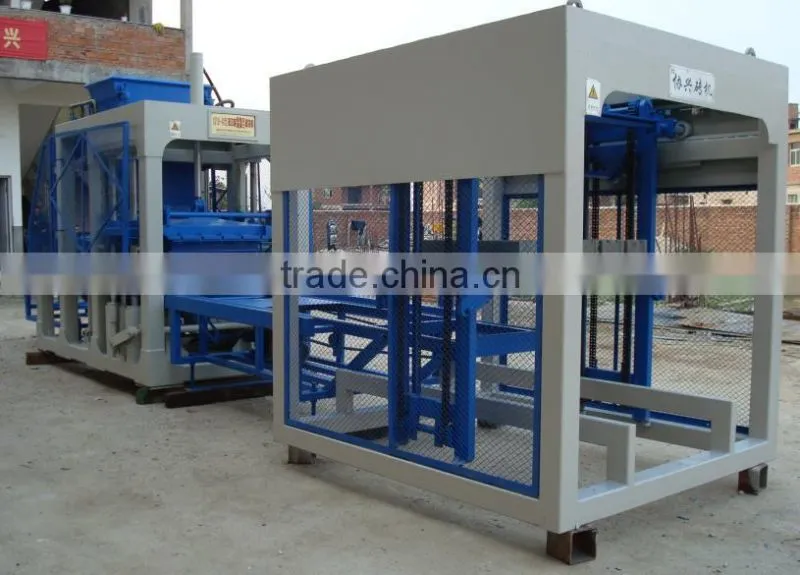

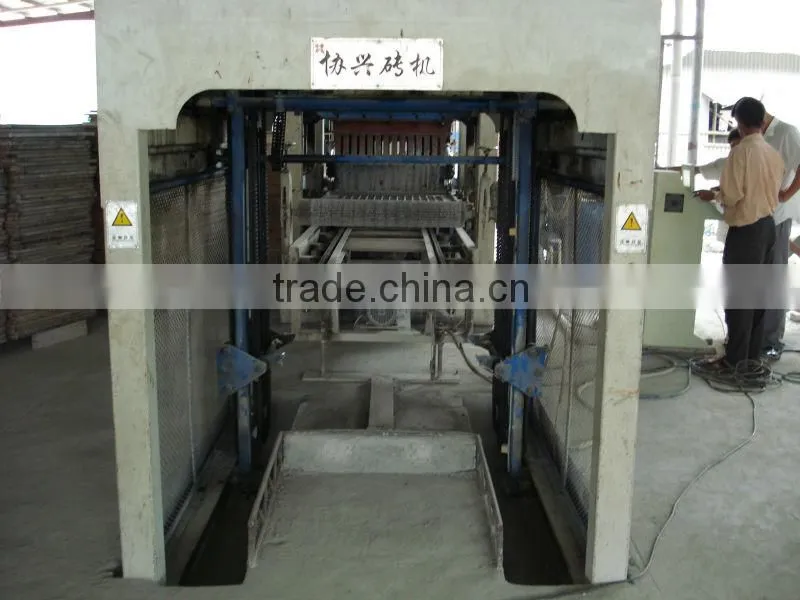

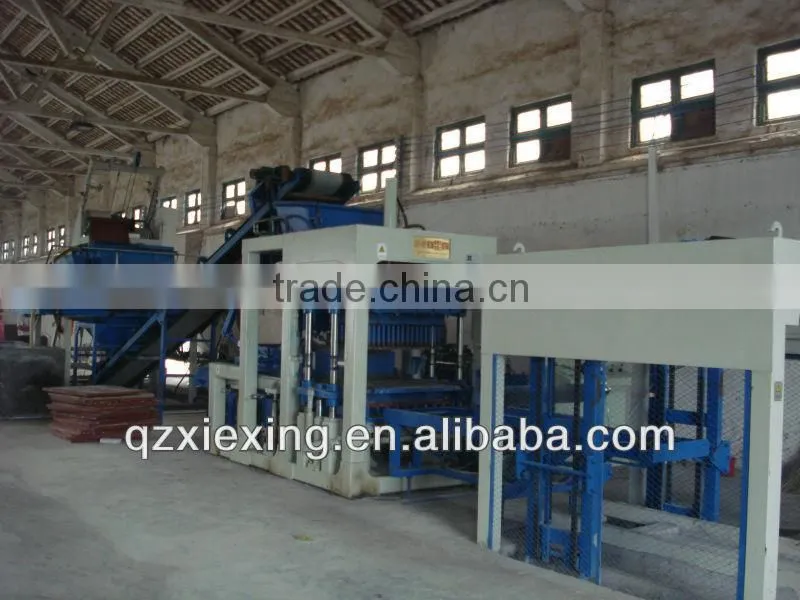

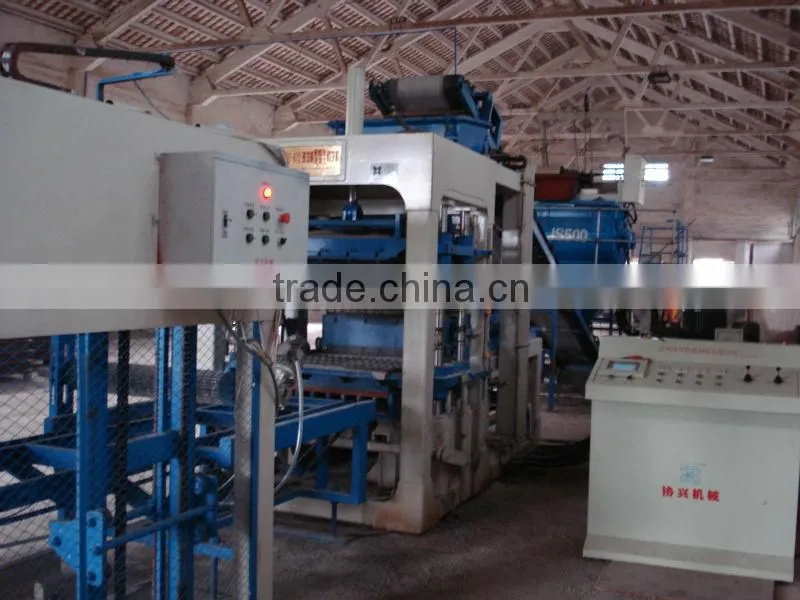

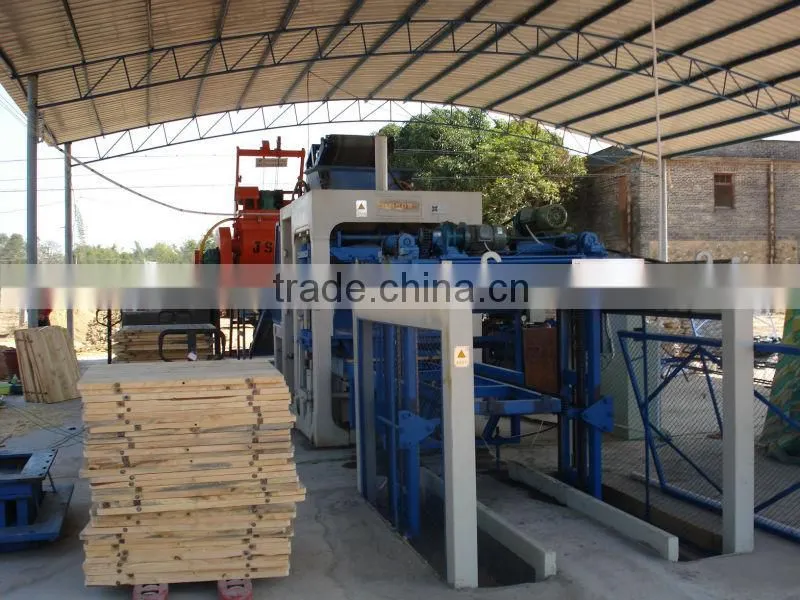

XQY QT8-15 concrete block making machine price for sale
Technology description of concrete block making machine for sale

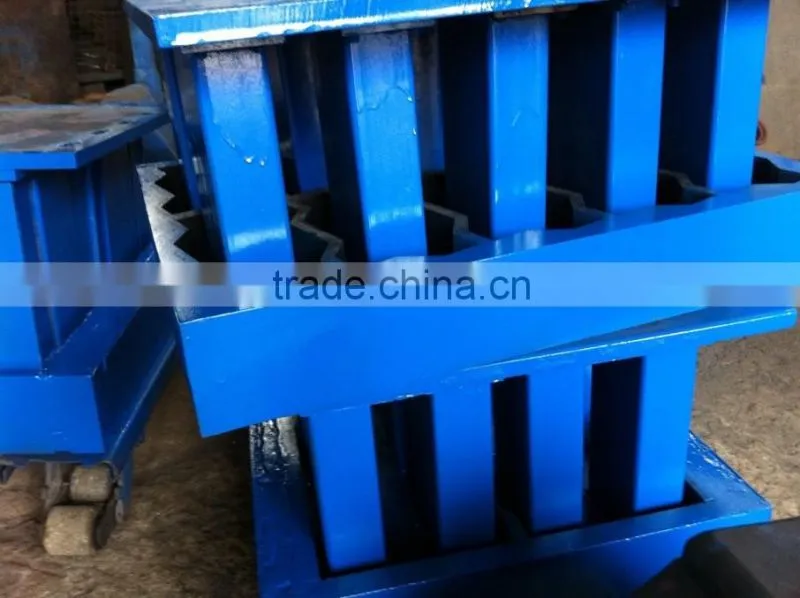

1). Due to reasonable structure, it is very convenient for exchanging the cutter, operating and maintaining. The equipment is tight-fixed with stable and reliable quality. Perfect designing, such as, adopting the auto pallets feeding system, material conveying and laying out system, compulsive material disposing system and pressing and molding synchronously, has made the production recycling automatically with high production output and stable quality. Auto stacking system will enable the equipment to play higher efficiency.
2). Machine, electricity, hydraulic are all combined together and controlled by PLC with the optional locking password to protect the running with safety. Main control table is with computerized operation screener (Chinese / English menu, LCD touching screen), which can materialize the parameter setting, single collecting along with the machine and breakdown analyzing, thus the machine can keep in the best working status. By long-distance monitoring, breakdown seeking and system updating.
3). Being vibrated by the hydraulic-pressure motor, this machine lays the material fast by two manipulators controlled by oil cylinder, which has raised up the vibration and the vibration efficiency. The material is laid evenly while being molded in a short time. The compressing and vibration are organic combined to guarantee the density of the products.
4). It is widely used, which can produce standard block, hollow block, light-weight block, road surface paver and so on, more specially for volume producing the standard block and the hollow block.
Main Technical Parameters
Main Technical Specifications | ||||
Dimension |
7100*1600*2610mm |
|||
machine weight |
~10t |
|||
Main vibration |
Platform vibration |
|||
Vibration frequency |
4600r /min |
|||
Pallet Size |
970*850*25mm |
|||
Molding Cycle |
15-25(s) |
|||
Overall Power |
38kw |
|||
Raw Materials |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
|||
| Applied Fields |
|
|||
Productivity
| Machine Models | XQY10-50 | XQY8-40 | |
| 400x200x200mm | Per Stroke | 10 blocks | 8 blocks |
| Per Day(8hrs) | 12000~14400 | 11520 | |
| 400x200x150mm | Per Stroke | 14 blocks | 10 blocks |
| Per Day(8hrs) | 16800~20160 | 14400 | |
| 400x200x100mm | Per Stroke | 20 blocks | 16 blocks |
| Per Day(8hrs) | 24000~26880 | 21500 | |
| 240x115x53mm | Per Stroke | 54 pcs | 42 pcs |
| Per Day(8hrs) | 90720 | 70560 | |
| 200x100x60/80mm Paver |
Per Stroke | 35 pcs | 28 pcs |
| Per Day(8hrs) | 50400 | 40320 | |
| 230x115x60/80mm Paver |
Per Stroke | 21 pcs | 18 pcs |
| Per Day(8hrs) | 25200~30240 | 21600~25920 | |

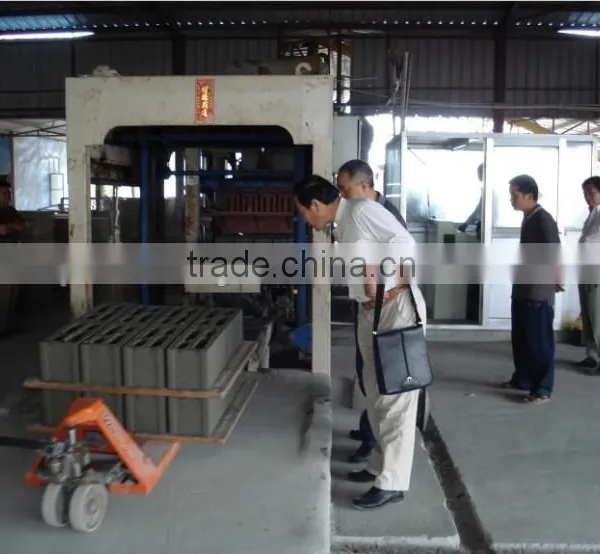

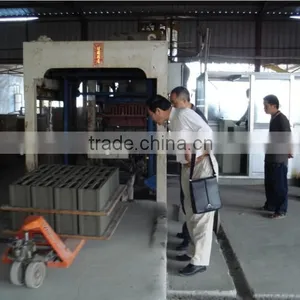

Clients visiting
certificate
About us:
Xiexing comes from china,the country of the dragon,xiexing is located in quanzhou,which is located in Southeast coastal area.
Xiexing is one specialized company, having entered into the cement products machineries for recent ten years,has already set up one more compele system in innovation,manfacturing,quality controlling and after-sales service.This freat projict for protection environment is a heavy and far-reaching burden.Xiexing wishes to create the fancy future wiht both domestic and overseas friends and customers hand by hand!
Your Attention Will Be Highly Appreciated!Welcome for your Inquiry!!
Many thanks!!!
