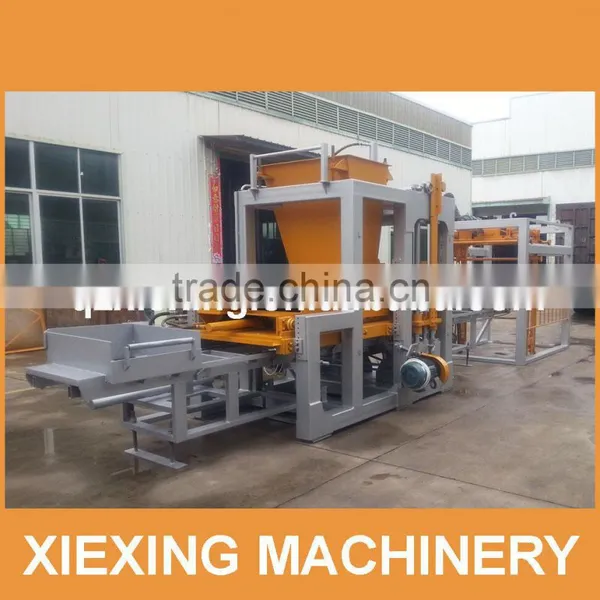

2014 hot sell QT4-15 paving brick machine
1.PLC control
2.Easy operation
3.Confidentia serivice
4.Good quality

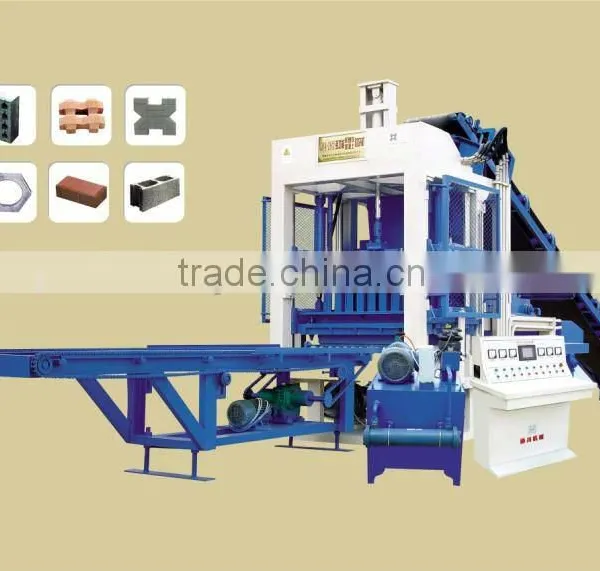

Technology Description of Automatic concrete brick machine
1, Tight-fixed in designing,stable in function,convenient in maintaining,high in automation,high output in making blocks,fewer in occupying the space and competitive in price based on quality;on this machine,automatically feeding block,feeding material and material arranging is the base for high production efficiency and stable quality.
2, Machine,electricity,hydraulic are all combined together and controlled by PLC with the optional locking password to protect the running with safety.Main control table is with computerized operation screener(Chinese/English menu,LCD touching screener),which can materialize the parameter setting,single collecting along with the machine and breakdown analyzing,thus the machine can keep in the best working status.By long-distance communication can materialize the long-distance monitoring,breakdown seeking and system updating.
3, Vibration system is perfect in designing and high in efficiency.Compressing and vibration are combined to guarantee the density of the products.
4, Horizontal and vertical structure is optional for customers to choose.Horizontal structure is facilitating to feed the surface material,which can produce the colorful road surface blocks;while vertical structure can save the pallets conveying time,which fast the block feeding.
5.Series prouct line working vedios
QT8-15: /v_show/id_XODcxNTQ2ODAw.html
QT6-15 /v_show/id_XODU0NzU0Mzky.html
QT4-15 /v_show/id_XODcxNTU3NzE2.html
QT3-20 /v_show/id_XODcxNTU4MDk2.html
QT3-20 Manul /v_show/id_XODcxNTYxMzAw.html
This machine is wildly used,which can produce standard block,hollow block,road surface block and so on.
| Technology Parameter of Automatic concrete brick machine | |
| Main Machine Overall size(L×W×Hmm) | 2700*1500*2750mm |
| Pallet Size(L×W×Hmm) | 850× 535× 20mm |
| Molding Periodicity(differs from the different product) | 15~30seconds |
| Machine Power | 27.5kw |
| Machine Weight | ~6t |
| Molding brick quality | Standerd block 26pcs/mold Eight-hole block 12pcs/mold Hollow block 4pcs /m |
6.Technical Datas Of Our Series Machinery For Reference,
7.BLOCK MATRIAL CAN BE AS FOLLOWING:
Non-burn Block/Brick Material Batching Ratio |
Plans 1: |
coal powder 30%, slag 30%, saltpeter powder 30%, cement 8~10% , |
arenite concentrates powder 0.2% (100kg/cm2 mixed 8% cement, 150kg/cm2 mixed 10% cement) |
Plans 2: |
Stone powder 60%, saltpeter powder 3%, cement 8-10%, calces 3%, ash 0.2% |
Plans 3: |
Sand 60%, Stone powder 30%, cement 10~15%, mortar adhesive 0.5%. |
Plans 4: |
Shale 90%, cement 8~10%, arenite powder 0.2%, potassium chloride 0.2%. |
Plans 5: |
Iron ore powder 60%, Stone powder 30%, cement 10-15%, arenite concentrates powder 0.2%, potassium chloride 0.2%, early strength agent 0.2%. |
Plans 6: |
Fly ash 60%, slag 30%, cement 8~10%, arenite concentrates powder 0.2%, early strength agent 0.2%. |
8.Certifications
9.Customers Cases
10.Questions &Answers
Questions |
Answers |
How to contract with you |
Skype:Catherine Zhang Telphone:+86-13062424086 |
What is the productivity of the brick machine? |
Different brick machine with different productivity of different brick size.please contact the customer services to give you the detail productivity |
What is the electric voltage and rate? |
Our local electric voltage is 380v, 3phase, 50hertz, the electricl voltage can be revised according to local situation |
Is PLC fully automatic or semi automatic? |
PLC can be fully automatic and semi automatic, according to our experience, we recommend you fully automatic PLC to you. It is easier to operate fully automatic PLC, thus saving labour cost. |
Warranty period your company |
12 month after delivery. |
Do you have enterprise website? |
|
How many molds come with one brick machine? |
One brick machine come with one mold free, the extra mold need to buy extra. |
Hong long can the molds be used? |
150000times, after repair, can you use another 150000times. |
The life of the machine? |
One brick machine can be used 6-10 years in common using station |
The mode of transportation. |
by sea, by land or by rail according to situation. |
The production time of the brick machine? |
The general production time about 20days , the specific time depend on the specific situations. |
