Specifications
QT10-15 high quality cement block making machine with special price1.Full Automatic ,PLC Control,Easy control

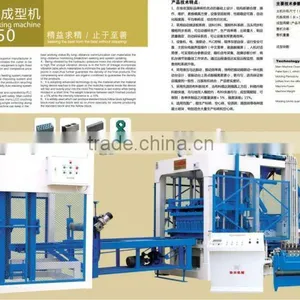

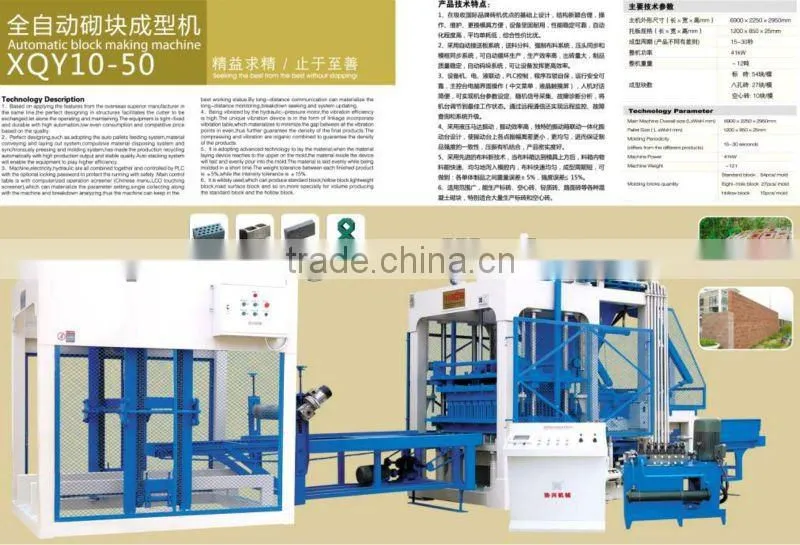

XQY10-50 Automatic concrete bricks making machine
First, Description of automatic concrete bricks making machine
1‚Based on applyoing the features from the overseas superior manufacyer in the same line,the perfect designing in structes facilites the cutter to be exchanged ,let alone the operating maintaing. the equipment is tight-fixed and durable with high automation,low even consumption and competitive price based on the quality.
2‚Perfect designing,such as,adopting the auto pallets feeding system,compuslve matrial disposing system and synchronously pressing and molding system,has made the production recycling automatically with high production output and stable quality. Auto stacking system will enable the enquipment toplay higer efficiency.
3‚Machine, electricly hydraulic are all combined togeher and controlled by PLC with the optional locking password to protect the running with safety .Main control table is with computerized operation screener (Chinese menu,LCD touching screener),which can materiallize the parameter setting single collecting along with machine and breakdown analying ,thus the machine can keep in the best working status.By long-distance communication can materialize the long-distance montoring,breakdowm seeking and system updating.
4‚Being vibrated the hydralic-pressure motor,the vibation efficiency is high. The unique vibration decive is the form of linkage incorporate viibration table,which materializes to minimize the gap between all the vibration point in even,thus future guarantee the density of the final products.The compressing and xibration are orfance combined to guarantee the density of the prouucts.
5‚It is adoping advanced technology to lay the material;when the material laying device reaches to the upper on the mold, the material inside the device will fast and evenly pour into the mold. The material is laidmevenly while being molded in a short time.The weight tolerance between each finished product is ±5%.,while the intensity tolerance is ±15%.
6‚It is widely used ,which can produce standard block, hollow block,light block,road surface block and so on,morespecially for volume producing the stangard block and the hollow block.
| Technology Parameter of automatic concrete bricks making machine | |
| Main Machine Overall size(L×W×Hmm) | 6900×2250×2950mm |
| Pallet Size(L×W×Hmm) | 1200× 850×25mm |
| Molding Periodicity(differs from the different product) | 15~30seconds |
| Machine Power | 41kw |
| Machine Weight | ~12t |
| Molding brick quality | Standerd block 54pcs/mold |
Second,Simple block production line for reference
Third,Block Machine Production flow in our factory & our workshop:
Fourth, Materials
Fifth,Certifications
Sixth,Technical Details
Seventh, Our serive case in the world
Eightth, Transporation & After-service & Daily Maintenance
Ninth, Common questions & answers
Questions |
Answers |
How to contract with you |
Skype:Catherine Zhang Telphone:+86-13062424086 |
What is the productivity of the brick machine? |
Different brick machine with different productivity of different brick size.please contact the customer services to give you the detail productivity |
What is the electric voltage and rate? |
Our local electric voltage is 380v, 3phase, 50hertz, the electricl voltage can be revised according to local situation |
Is PLC fully automatic or semi automatic? |
PLC can be fully automatic and semi automatic, according to our experience, we recommend you fully automatic PLC to you. It is easier to operate fully automatic PLC, thus saving labour cost. |
Warranty period your company |
12 month after delivery. |
Do you have enterprise website? |
|
How many molds come with one brick machine? |
One brick machine come with one mold free, the extra mold need to buy extra. |
Hong long can the molds be used? |
150000times, after repair, can you use another 150000times. |
The life of the machine? |
One brick machine can be used 6-10 years in common using station |
The mode of transportation. |
by sea, by land or by rail according to situation. |
The production time of the brick machine? |
The general production time about 20days , the specific time depend on the specific situations. |
