glass laser cutting machine/ laser cutting machine 100w/130w/150w
Product Description
Name: |
MN-1290 |
Processing area |
1200mm*900mm (4feet*3feet) |
Laser power |
60W,80W,100W,130W,150W |
Laser type: |
Sealed Co2 glass laser tube |
Cooling mode: |
Water cooling and protection system |
Resetting positioning accuracy: |
±0.01mm |
Compatible Software: |
Laser cut 5.3, CorelDraw AutoCAD Photoshop |
Whole machine size: |
1450mm*1200mm*1000mm |
Engraving speed |
1-60000mm/min |
Cutting speed |
1-10000mm/min |
Cutting thickness |
0-25mm acrylic (others determined by materials) |
Resolution ratio |
≤0.0125mm |
Position system: |
Red dot |
Interface: |
USB |
Minimum shaping character |
letter 0.5mm, Chinese 0.5mm |
Support graphic format |
DST, PLT, BMP, DXF |
Gross power |
1000W |
Driving mode: |
DC0.8A 24V stepper motor |
Cooling mode: |
Circulation water cooling |
Working voltage: |
AC 110 - 220V±10%, 50 - 60Hz or de pend on customer |
Operating temperature |
0-45C |
Operating humidity: |
5-95% |
Driving system |
stepper |
Option: |
Up and down table,
rotary attachment |
Packing: |
wooden box |
Guarantee time: |
1 year, laser tube 8 months |
Option: |
Rotary attachment for column materials |
Operation: |
Video to tell customer how to operate the machine |

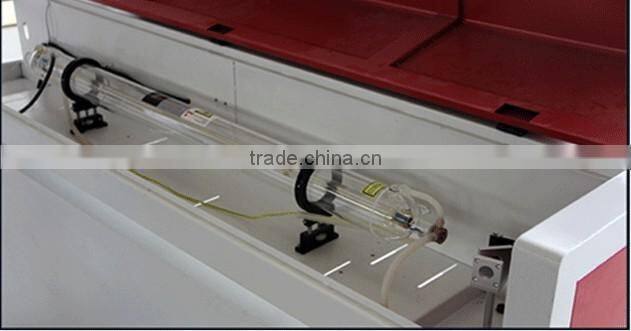

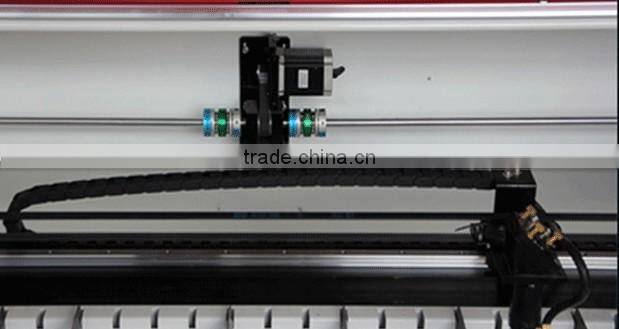

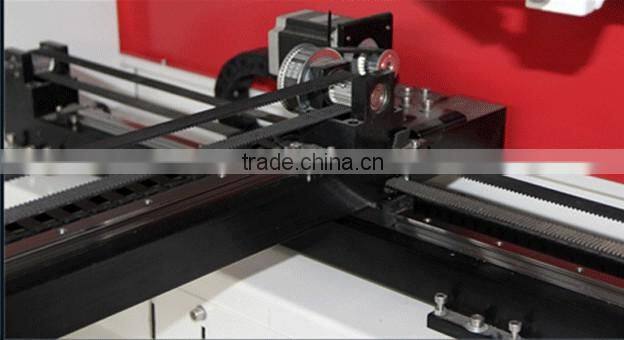

laser cutting machine Main parts
Applicable industry and material:
1.Building model making industry:
The wall, doors and windows, roof, ground, vegetation, etc..
2. Logo, signage, medals:
It can engraving / cutting on color plates, wood, metal and other coating materials.
3. Clothing processing:
We can make any complex patterns in leather, garment processing industry engraving, cutting, carving, engraving.
5. Wood, furniture:
Can be in a variety of bamboo, wood, and furniture, design, etc..
6. Organic glass cutting:
Use organic glass of the cutting.
7. Other industries:
Printing and packaging, electrical appliances, plastic products, food and medicine, etc
glass laser cutting machine/ laser cutting machine 100w/130w/150w
Sample

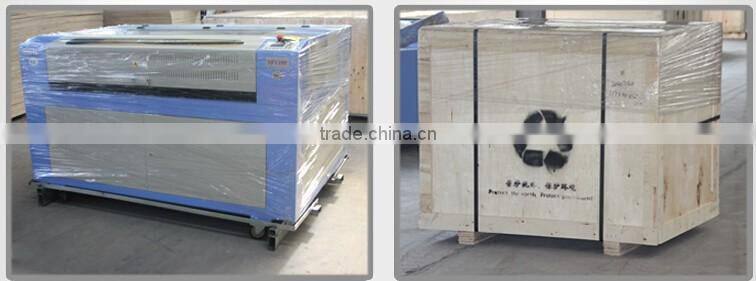

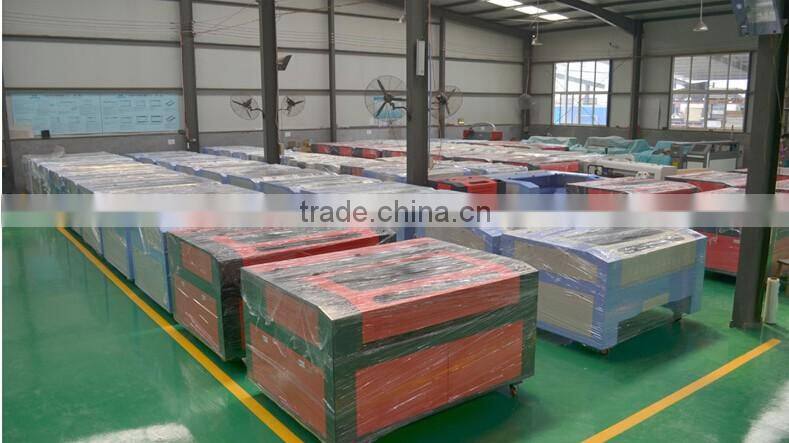

Packaging
Our services
1.One year quality guaranty, the machine with main parts(excluding the consumables)
shall be changed free of charge when if any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.24 hours on line service each day, free technical support.
5.Machine has been adjusted before delivery

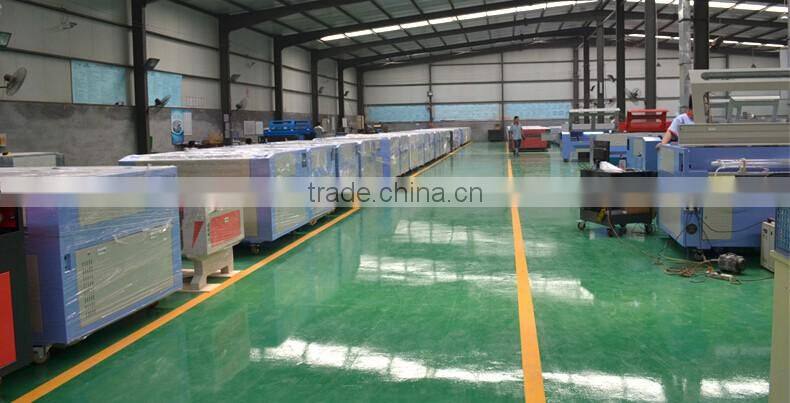

Company Information
Shandong Mann Machinery Co. Ltd. is CNC equipment manufacturers a set design, production and sales. High quality products, professional sales and after-sales team, won the domestic and foreign customers alike. Company main products for CNC engraving machine, laser engraving machine and other general machinery. Suitable for wood, advertising, stone, metal, crafts and other materials, involving a number of industries. Machines are exported to the United States, Germany, Canada, Australia, Russia, Southeast Asia and other countries and regions, more than 70. The company to the quality of survival, to serve the development of high quality is our eternal pursuit. Advanced manufacturing technology, large-scale production, excellent product quality, professional user training, perfect after-sales service, is to ensure that the basis of user satisfaction.
