Home > Products > Slitting Machine > Slitting Film Tape Line & PP Foam Tape Film Slitter
Slitting Film Tape Line & PP Foam Tape Film Slitter
- 250 Set / Sets per Month
- Shanghai
- T/T Credit Card
- Leizhan Disc sludge thickener for paper pulp making production line
- 2013HOT SELL Stainless steel structure Disc thickener for paper pulp making production line
- Disc pulp filter machine of fluting and kraft paper production line
- Leizhan waste paper recycle equipment ZNP series disc thickener/paper processing equipment/paper pulp machinery
- disc thickener/paper pulp industrial use
- disc thickener used for washing and thickening/paper making industry
Product Details
Condition: | New | Type: | Slitting Rewinder | Computerized: | Yes |
Place of Origin: | Jiangsu, China | Brand Name: | Chuanri | Model Number: | FQ-1300 |
Voltage: | 380V 50Hz | Power(W): | 6KW | Dimension(L*W*H): | 2400*2000*1300mm |
Weight: | 1200kg | Certification: | CE Certificate | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

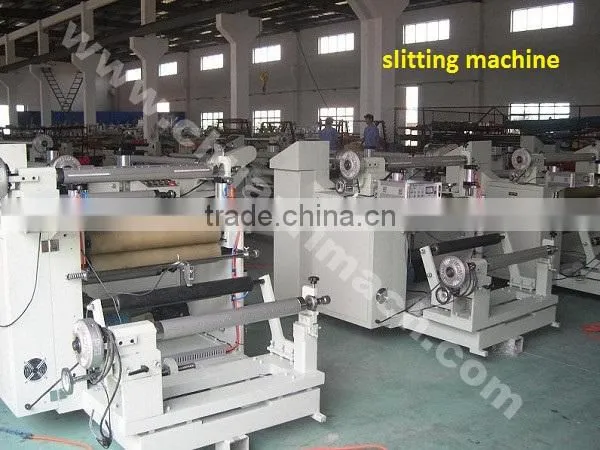

Slitting Film Tape Line & PP Foam Tape Film Slitter
Main Parameters:
Model | 1300 slitting machine |
Max Feeding Width ( mm ) | 1300 |
Main Engineer Power ( KW ) | 6 |
Speed (T/M ) | 120 |
Size ( mm ) | 2400*2000*1300 |
Weight (kg) | 1200 |
Rewinding diameter ( mm ) | 800 |
Winding diameter ( mm ) | 450(Standard) 600mm(Customized) |
precision ( mm ) | ±0.10 |
Power | 380V 50HZ |
Funcional characteristics:
This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing is used for feeding and receiving materials. Imported magnetic powder clutch is adopted to control the tension. Imported gas sensive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification control. Automatic detection, rectification and metering can be realized. It is characterized by accurate slitting, fast slitting speed, ease of operation and maintenance, etc. There are two selection ofr main engine, single electric motor, double electric motors.
Purpose:
It is applicable for the slitting tooling of industrial adhesive tape, cellphone tape, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
