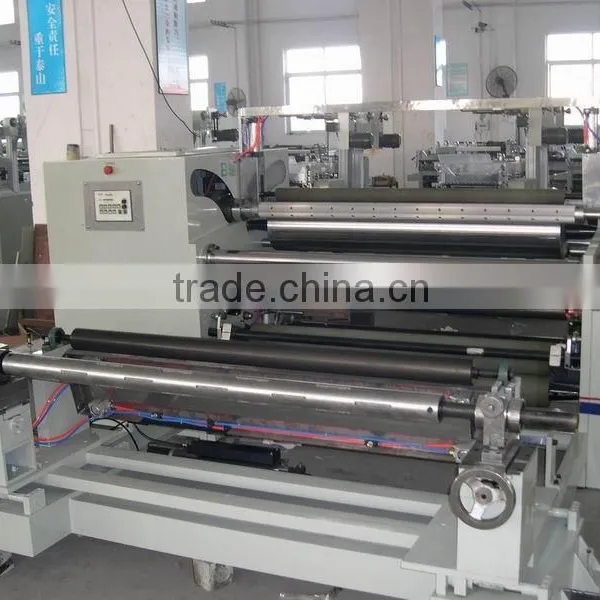

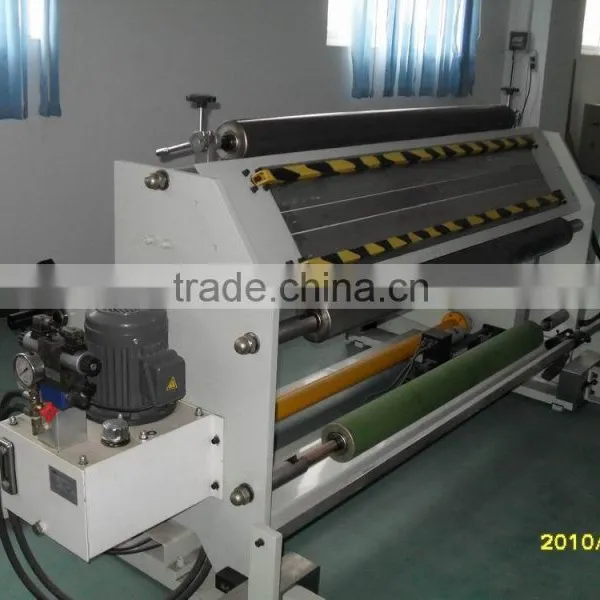

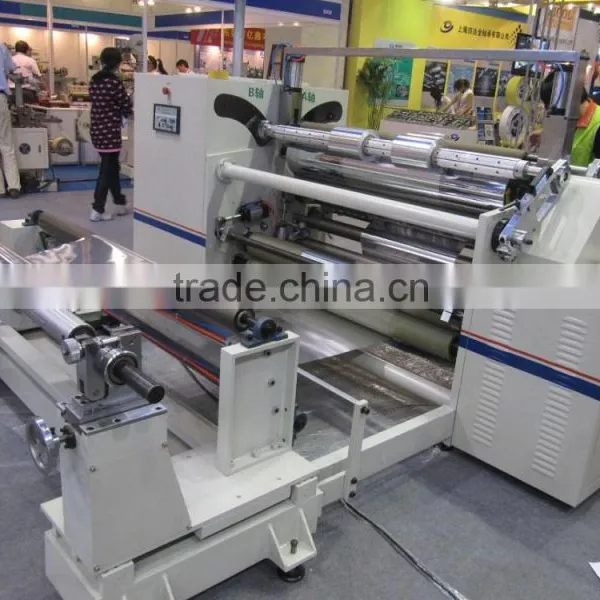

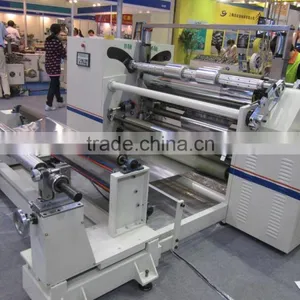

3M, Tesa, Nitto, Aluminum Adhesive Tape Slitting machine
Specification:
Tape Slitting machine
Material: Film, tapes with release liner, foil, paper etc
Slitting speed: 180m/min
Main Parameters:
Model |
700 Slitting machine |
1300 slitting machine |
Max Feeding Width ( mm ) |
700 |
1300 |
Main Engineer Power ( KW ) |
3 |
6 |
Speed (T/M ) |
160 |
180 |
Size ( mm ) |
2000*2200*1450 |
2400*2000*1300 |
Weight (kg) |
600 |
1200 |
Rewinding diameter ( mm ) |
600 |
800 |
Winding diameter ( mm ) |
450 |
450 |
precision ( mm ) |
±0.10 |
±0.10 |
Power |
380V 50Hz |
380V 50HZ |
Purpose:
This machine is applicable for the vertical slitting of various rolling-shape materials such as industrial adhesive tape, sheet, aluminum foil, copper foil, compound plastic sheet, etc.
Functional characteristics:
This machine is of photoelectric track and rectification system, and the magnetic power clutch is adopted to control the feeding and receiving tension. Main machine is of frequency conversion speed regulation. The slitting width can be adjusted as requested. It enjoys characteristics such as fast slitting speed, ease of operation and maintenance.
