Quick Details
- Type: Rotogravure Printing Machine
- Condition: New
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: RUITAI
- Model Number: XT-YAD-C
- Usage: Film printer
- Automatic Grade: Automatic
- Color & Page: 1-12 color
- Gross Power: 110kw
- Dimensions(L*W*H): 13000x3200x3000mm
- Plate Type: Gravure
Packaging & Delivery
| Packaging Details: | In nude |
|---|---|
| Delivery Detail: | within 45 days after receiving down payment |
<:article id=richTextContainer>
Specifications
gravure printing machine
1.easy operation
2.high precision machine
3.reasonable price, good quality
4.ontime delivery
------------------------------------------------------------------------------------------------------------------------------

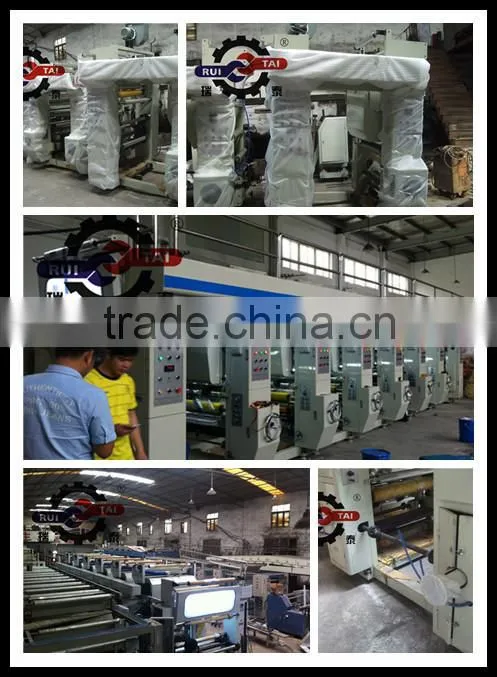

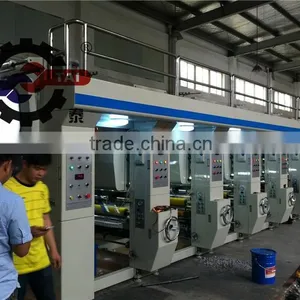

High Speed Multicolor Gravure Printing Machine
------------------------------------------------------------------------------------------------------------------------------
USE:
PVDC 35-60um PET 12-60um
OPP 20-60um BOPP 20-60um
PE 30-100um NY 12-50um
CPP 20-60um Combination film 15-60um
And other similar size of film
------------------------------------------------------------------------------------------------------------------------------
Feature:
1. Double unwind shaft active unwinding separated
2. Magnetic powder braker
3. Load/Unload: Air shaft
4. Install printing plate with shaft
5. Has quick rise device, lock the soft roller when machine stop
6. Independent heating system in every color unit

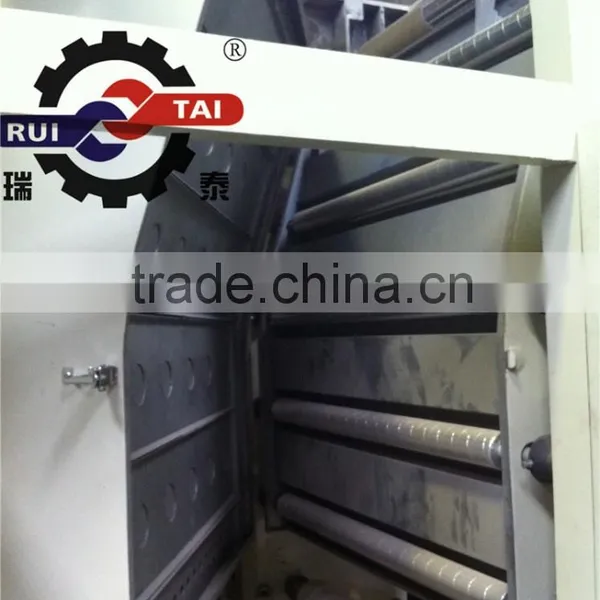

7. With tornado layout, drying from inner to outer, do not have blister phenomenon
8. Integral high strength cast iron wallboard
9. Block-based design
------------------------------------------------------------------------------------------------------------------------------
Main parameter
| |
Direction |
From unwind to rewind |
Printing colour |
8 |
Max printing width |
1100mm |
Max machine speed |
120m/min |
Max printing speed |
100m/min |
Diameter of printing plate |
Φ120mm-Φ300mm |
Precision of register |
Lengthwise ±0.15mm (Auto) Crosswise ±0.15mm (Manual) |
Unwinding diameter |
Φ500mm |
Rewinding diameter |
Φ500mm |
Tension |
3-30Kg |
Precision of tension |
±0.5Kg |
Air supply |
0.8mpa |
Press and print pressure |
500kg |
Scraper swing capacity |
±5mm |
Heat way |
Electricity |
Main motor power |
7.5kw |
Main power |
110kw |
Dimensions |
13000x3200x3000mm |
------------------------------------------------------------------------------------------------------------------------------
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in wenzhou , Zhejiang, China. You can fly to wenzhou airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: How does your factory do regarding quality control?
A: "Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end.
Trade Terms:
1. Payment: T/T, Western Union, T/T payment:30% deposits; 70% balance before deliverving.
2. Delivery Time:45 days
