Specifications
1. Independent tower type double arm duplex position slewing and wall rack combination2. Independent driving control system
Quick Details
- Type: Rotogravure Printing Machine
- Condition: New
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: RUITAI
- Model Number: XT-YAD-B
- Usage: Film printer
- Automatic Grade: Automatic
- Color & Page: 1-12 color
- Gross Power: 65kw
- Dimensions(L*W*H): 8000x1970x2320mm
- Plate Type: Gravure
Packaging & Delivery
| Packaging Details: | In Nude |
|---|---|
| Delivery Detail: | within 30 days after receiving downpayment |
<:article id=richTextContainer>
Specifications
This printing machine is used for continuous multi-color printing rolling plastic film, paper, laminating now woven etc.
------------------------------------------------------------------------------------------------------------------------------

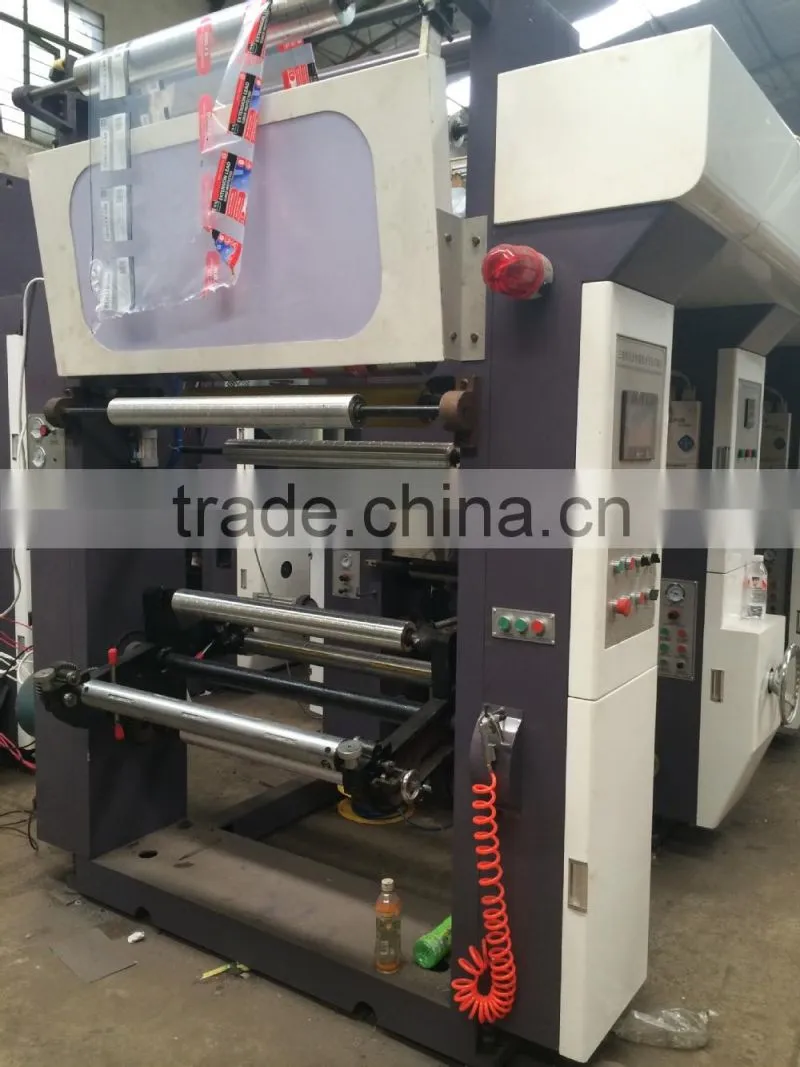

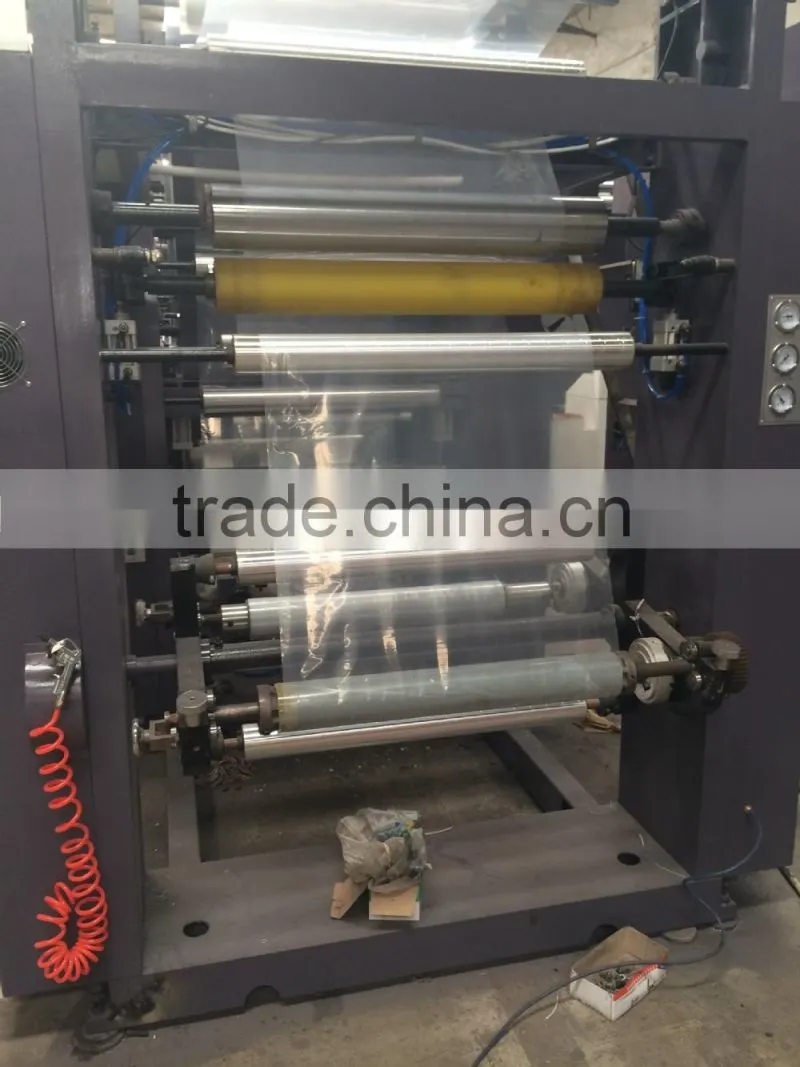

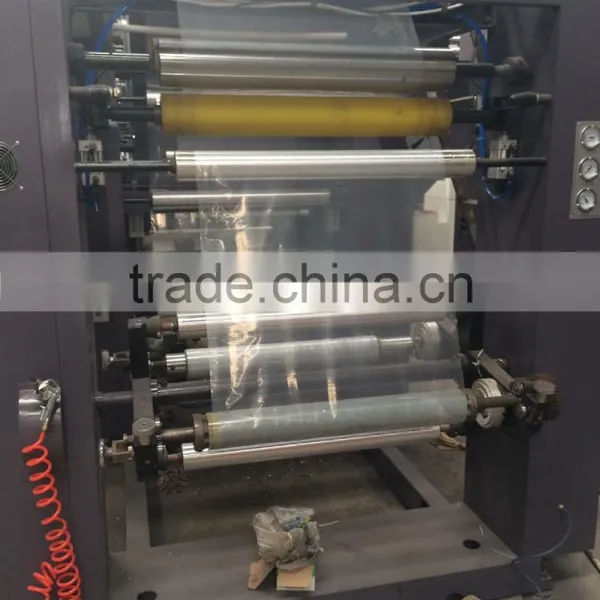

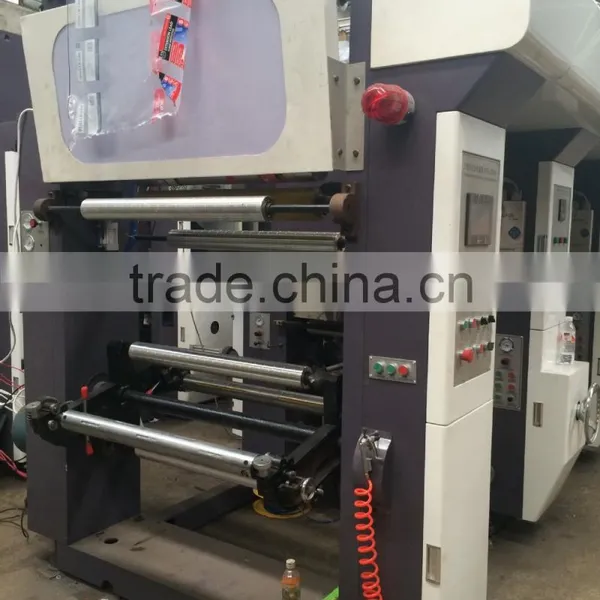

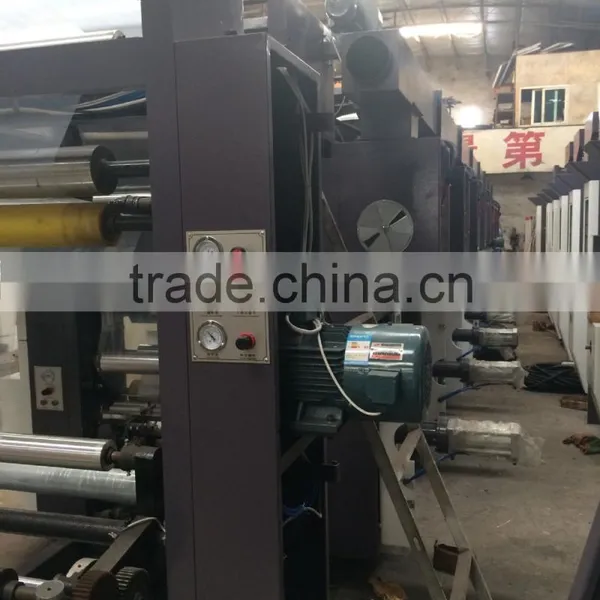

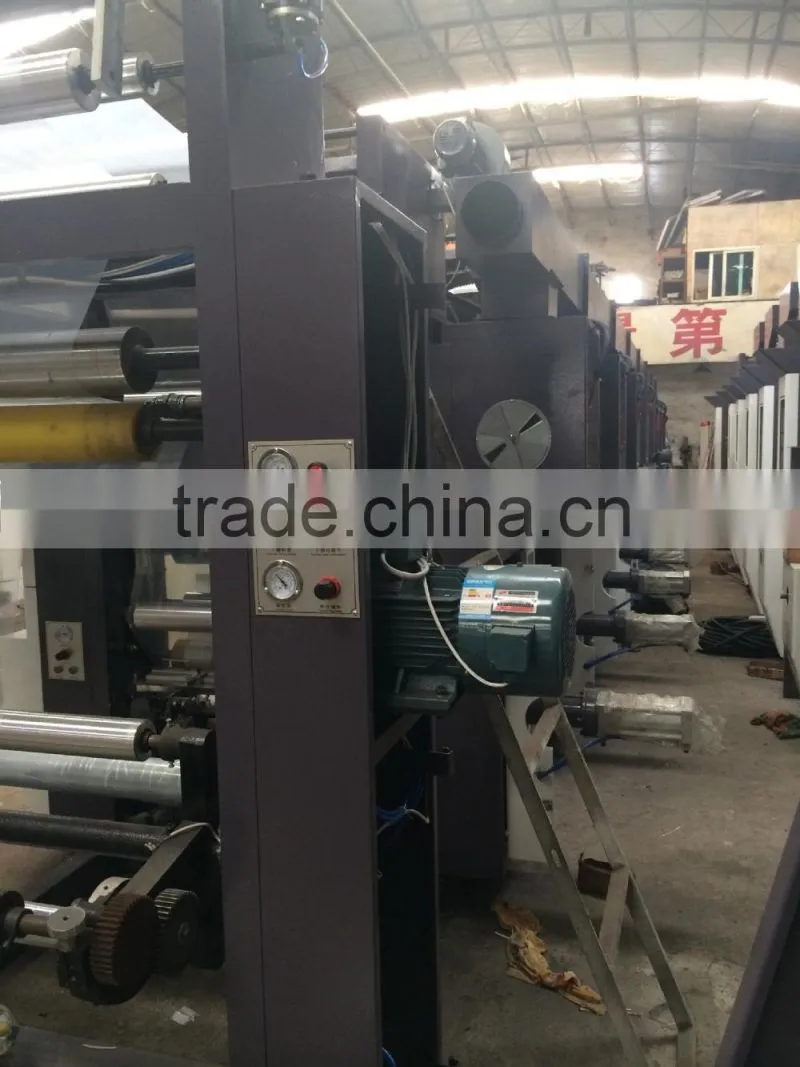

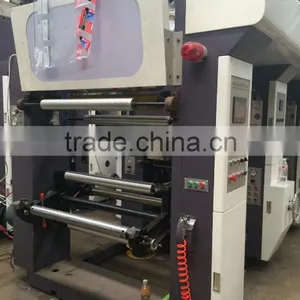

Rotogravure Color Printing Machine
------------------------------------------------------------------------------------------------------------------------------
Printing machine
Feature: 1.360-degree printing plate aligning device, easy operation. 2. Dual-drying tunnel far infrared fire tube heating system. 3 .Magnetic powder brake control for unreeling tension system, reeling with moment motor. 4. Reeling and unreeling at dual stations, semi-automatic material change without machine halt. 5 .One-off printing on both sides.
------------------------------------------------------------------------------------------------------------------------------
Main parameter:
Direction |
From unwind to rewind |
Max printing width |
1300mm |
Max machine speed |
100m/min |
Max printing speed |
10-80m/min |
Precision of register |
Vertical ±0.15mm Manual Horizontal ±0.15mm Manual |
Unwinding diameter |
Φ600mm |
Rewinding diameter |
Φ600mm |
Tension |
3-30Kg |
Precision of tension |
±0.5Kg |
Scraper swing capacity |
±5mm |
Heat way |
Electricity |
Main power |
65kw |
Dimensions |
8000x1970x2320mm |
------------------------------------------------------------------------------------------------------------------------------
