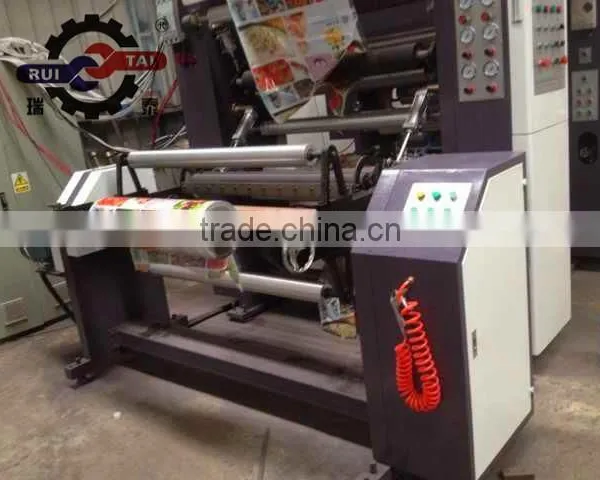

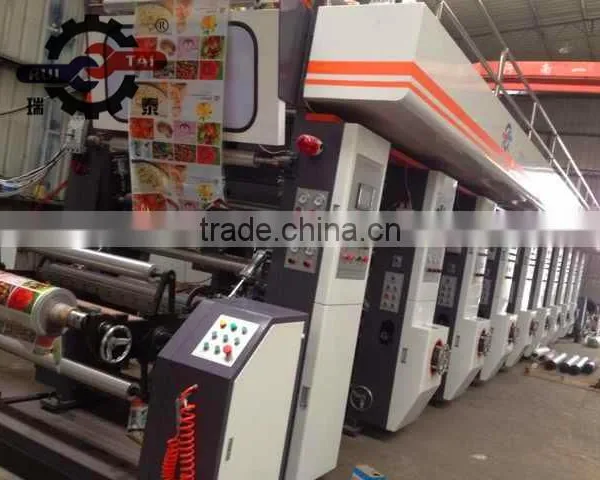

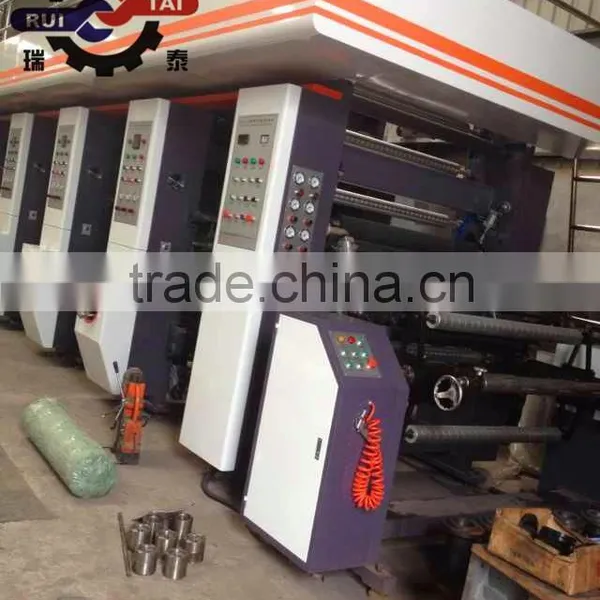

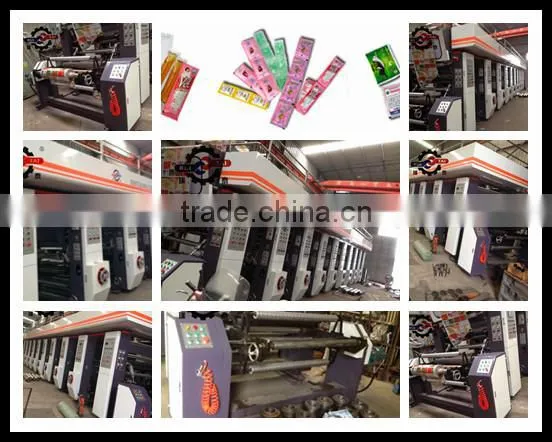

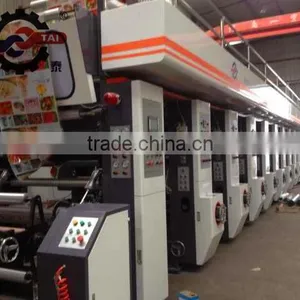

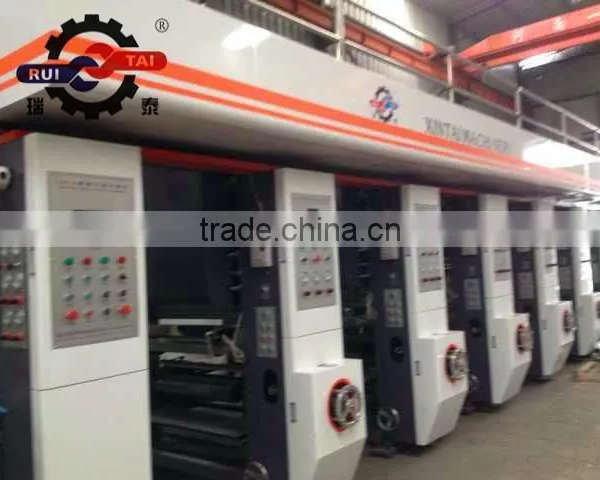

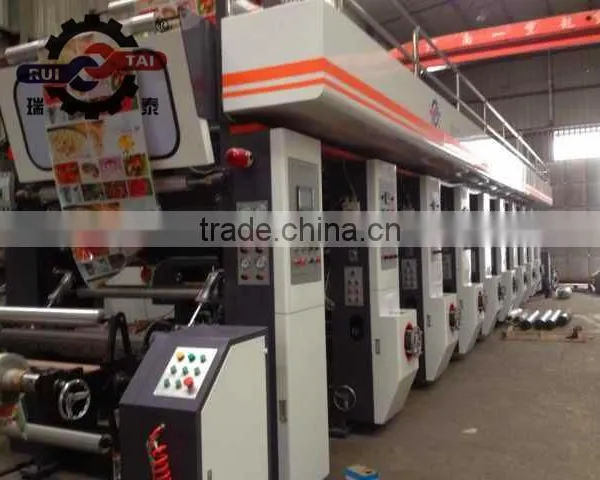

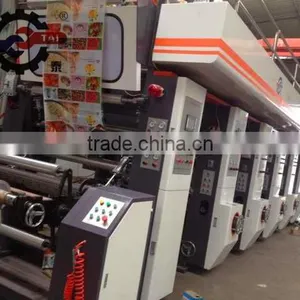

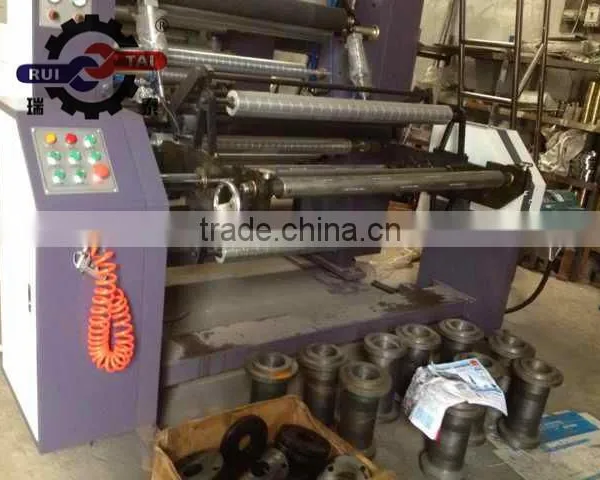

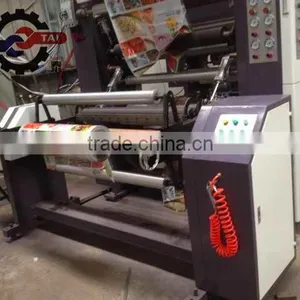

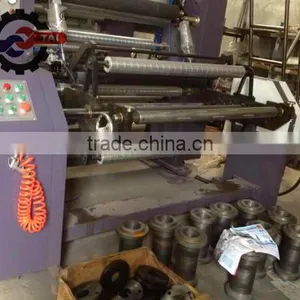

High Speed Computer Gravure Printing Machine/ High Speed Computer Rotogravure Printer

Name: High Speed Computer Gravure Printing Machine/ High Speed Computer Rotogravure Printer
Brand: RUITAI
SKU: 117936227

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

RUITAI

Ruian Xintai Printing Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Zhejiang, China

Brand Name RUITAI

Model Number YAD-D

Usage Other, Film printer

Automatic Grade Automatic

Gross Power 220kw

Dimensions(L*W*H) 15500x3200x3000mm

Specifications

High Speed Computer Gravure Printing Machine
1. Max printing speed: 150m/min
2. Color: 1-12
3. PLC control
4. Frequency moto

------------------------------------------------------------------------------------------------------------------------------

High Speed Computer Gravure Printing Machine/ High Speed Computer Rotogravure Printer

------------------------------------------------------------------------------------------------------------------------------

USE:

For PE, PVC, PET, BOPP, OPP all kinds of plastic films.

------------------------------------------------------------------------------------------------------------------------------

Feature:

1. Independent tower type double arm duplex position slewing and wall rack combination

2. Independent driving control system: Digital AC frequency control system

3. High speed non-stop change material, save time

4. High-sensitivity tension closed loop control system

5. Install printing cylinder without shaft

6. Independent heating system in every color unit

7. Intelligent continuous constant temperature control.

------------------------------------------------------------------------------------------------------------------------------

Main parameter
Direction	From unwind to rewind
Printing colour	1-12 color
Max printing width	600-1300mm
Max machinery speed	180m/min
Max printing speed	150m/min
Diameter of printing plate	Φ120mm-Φ300mm
Precision of register	Lengthwise ±0.10mm(Auto) Crosswise ±0.10mm(Manual)
Diameter of unwinding	Φ600mm
Diameter of rewinding	Φ600mm
Tension	3-30Kg
Precision of tension	±0.5Kg
Air supply	0.8mpa
Press and print pressure	500kg
Scraper swing capacity	±5mm
Max change material speed	180m/min
Heat way	Electricity
Main motor power	15kw
Main power	220kw
Dimensions	15500x3200x3000mm
Weight	13000kg
