Specifications

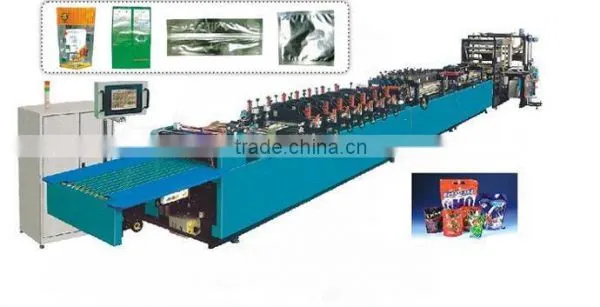

Use:This machine is a kind of modified Model HDL500-600 Full-automatic High-speed Three-side Sealing Bag-making Machine and i
Performance and Characteristics:
1. The whole machine adopts industrial control level computer and auxiliary three-servo control system.
2. All the parameters adopt CRT real-time display. The bag-making speed, bag- making length, temperature, counting, punching and conveyor quantity of doubling finished products, etc. Can be preset.
3. Releasing tension can be controlled by full-automatic adjustable magnetic powder constant tension control system.
4. Automatic alarm for releasing tension, central tension, colour code losing and out of temperature limit, etc.
5. LPC automatic deviation-rectifying, double photoelectric tracking.
6. New type pressure-lifting 6 times conveying function
7. Computer 16- route PID constant temperature control.
8. Pneumatic multi-functional punching, automatic collecting of cut rim charge, electrostatic elimination.
9. Technology of double self-standing bag, double concave-convex buckle device is in the lead at home, which can truly make bags by one machine with multiple functions.
| Main Technical Variables: | ||
| Model | YAD-500 | YAD-600 |
| Max. Diameter of Roll material | Φ600mm | Φ600mm |
| Bag-making width | 60-500mm | 60-500mm |
| Bag-making length | 30-50mm | 30-50mm |
| Bag -making capability | 30-150pcs/min | 30-150pcs/min |
| Total power | 32kw | 35kw |
| Cooling water | 5L/min | 5L/min |
| Weight of machine | 5500kg | 6000kg |
| Overall dimensions(LxWxH) | 11505*2300*1865mm | 11505*2400*1865mm |
