DT862 Three Phase 4 Wire Energy Meter

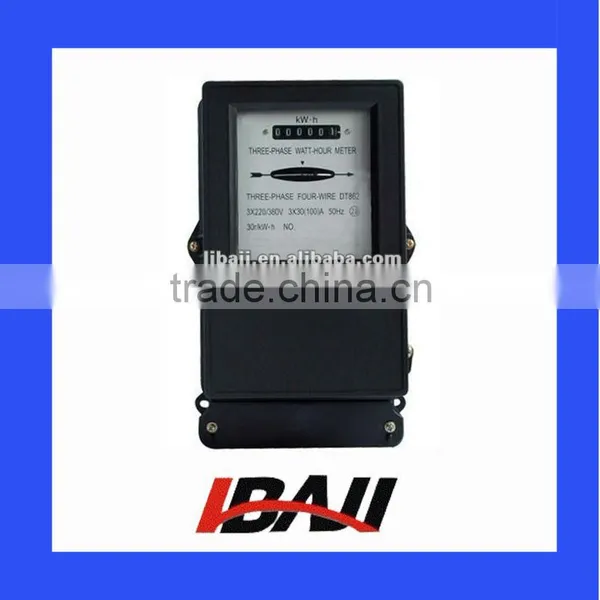

DT862 Three Phase 4 Wire Energy Meter photo-1
US$ 16 - 16 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
LBAJI
Model Number:
DT862
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO&SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name LBAJI
Model Number DT862
Display Type Analog Only
Phase Three Phase
Measuring Energy Range 30(100)A
Accuracy Class 2
Output Voltage 3*220/380V
Operating Temperature -10℃ to +50℃

Specifications

DT862 3 phase kwh meter
1.easy use and install
2.high quality and reasonable price
3.OEM offered

DT862 3 phase kwh meter



Pruduct Brief Introduction



DT862 three phase electricity meter,which is applicable to measure the rated frequency 50Hz and power loss of active and reactive energy meter. The series active energy meters are completely conformed to National Standard GB/T17218.311 -2008Class0.5,1 and 1 AC Active Watt-hour Meter and International Standard lEC521. All technical targets of reactive meter are completely conformed to National Standard GB/T 15282-1994 Reactive Watt hour Meter and International Standard IEC 521



TECHNICAL PARAMETERS:





Name

Type

Accuracy (Class)

Rated

Voltage (V)

Rated Current(A)

Connection Mode

Three-phase four-wire

active energy watt-hour meter

DT862

2

3 x 220/380



3x1(2), 3x3(6), 3x1.5(6)

Input through CT

3x5(20), 3x 10(40), 3x 15(60),3x 20(80), 3x 30(100)

Directly input

3x1(2), 3x3(6), 3x1.5(6)

Input through CT

Three-phase three-wire

active energy watt-hour meter

DS862

2

3x 380

3x1(2), 3x3(6), 3x1.5(6)

Input through CT

3x5(20), 3x 10(40), 3x 15(60),3x 20(80), 3x 30(100)

Directly input

3 x 100

3x1(2), 3x3(6), 3x1.5(6)

Input through CT

*Please advise us if you have any different specifications,we can make according to your special requirements.





Outer and Mount Dimension

DT862 three phase 4 wire energy meter



Wiring Diagram



DT862 three phase 4 wire energy meter



DT862 three phase 4 wire energy meter
