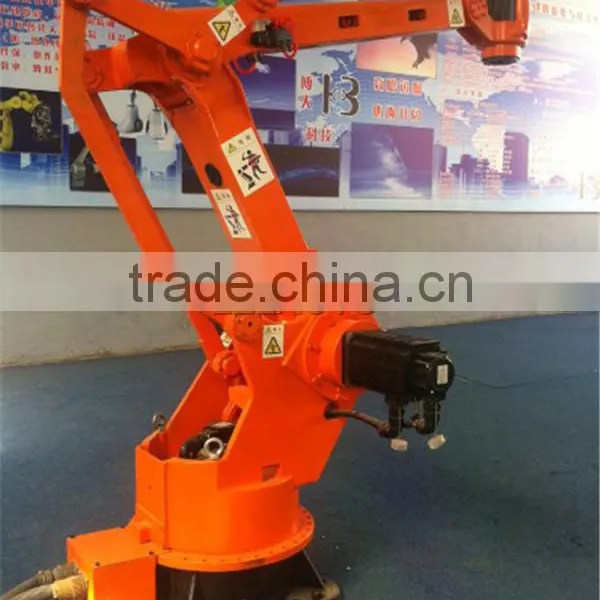

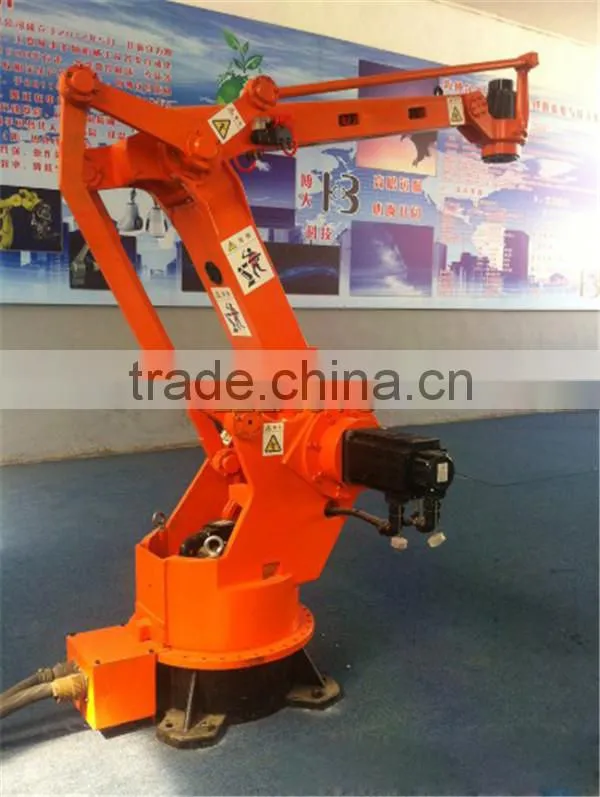

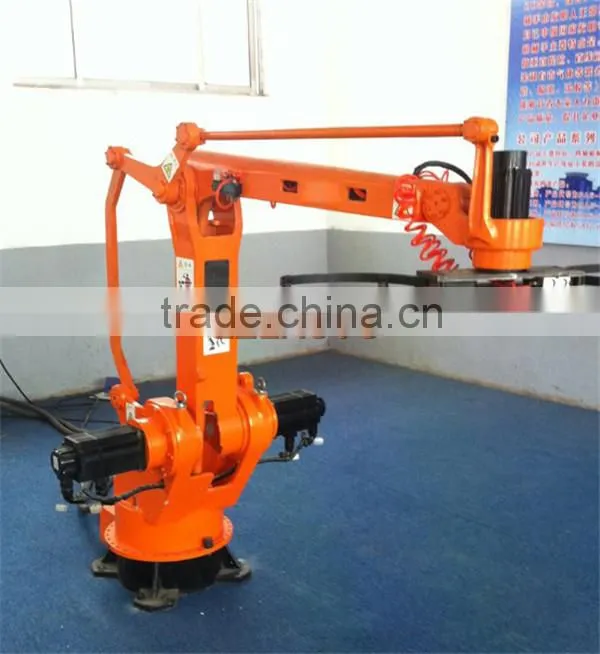

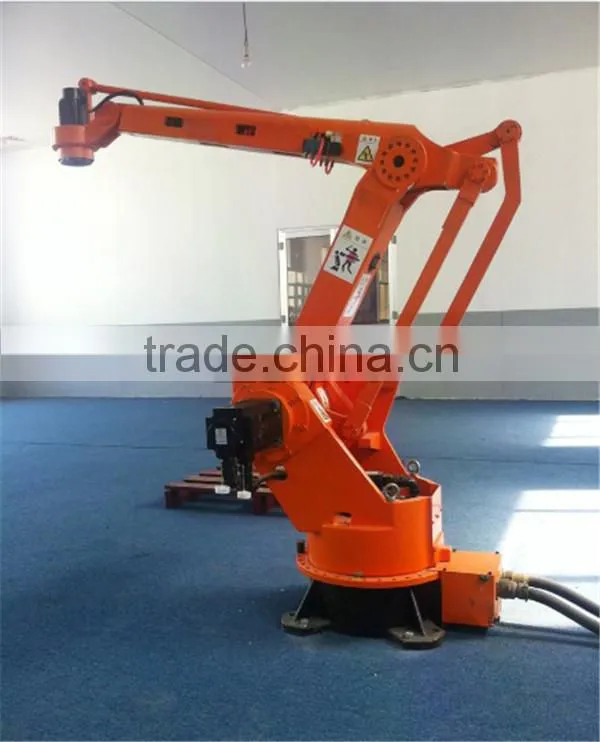

Help CenterPalletizer Robot
Related Products
Carry robot
Structure and characteristics of the
1, 6 axis linkage with a 5.6 -inch LCD display, ISO international standard G code
2, use multilayer circuit board, the 32-bit high-performance CPU and large scale FPGA programmable devices, system of the whole process adopts the table components, which make the system more compact.
3, how much level 20 instruction buffer motion control chip, is particularly suited to tell more line or arc continuous planting of motion control.
40 road 4, 48 road input, the output interface
5, the whole optical coupling isolation, strong anti-interference, stable operation
6, manual and automatic, zero, editing and entry operation
7, can be operated by the keyboard to the manipulator, on the basis of teaching programming, command 6 servo motor to complete specified action
8, teaching programming process, support absolute positioning, relative position, delay waiting for any IO port input signal, control any IO port output signal, circulation call procedures section, and so on
Nine, six bearing with digital communication, servo motor drive mode, suitable for high precision
Mechanical characteristics of
Robots can replace artificial at high temperature, pollution and toxic gases under harsh environments such as automated operations (heat treatment, casting, forging, spray paint, glue, etc.) it flexible motion, strong commonality, Jane
The bill.Can save a lot of human resources, raise work efficiency, reduce production cost, improve product quality, enhance corporate image.
The application of manipulator
Mainly used for nc machine tools, machining center, special machine, combination machine tools, automobile manufacturing and assembly of the engine, auto parts manufacturing, home appliance manufacturing industry, military industrial products manufacturing, punching machine,
Cutting, cutting, welding, handling, assembly, pallet, spraying, sorting polishing, assembling, etc.
Technical parameters::
Performance parameters of the manipulator | |
Manipulator model |
LZL100 |
mechanical structure |
More than six axis joint |
Drive way |
Ac servo drive |
The payload |
100KG—10KG |
control mode |
Position control |
power supply |
220V or 380V,50hz |
Repeat positioning accuracy |
±0.1mm |
Range of motion |
X: plus or minus 170 degrees, |
Rated speed |
100 degrees/SEC. |
Working temperature |
0 - 45 degrees |
Working humidity |
20-80% |
Type of installation |
ground |
programmatically |
Teaching way |
